Inspection Procedure D-1: Power Windows: Power Windows Do Not Work At All: Notes

NOTE: This troubleshooting procedure requires use of scan tool MB991958 and SWS monitor kit MB991813. For details on how to use the SWS monitor, refer to "HOW TO USE SWS MONITOR  ."

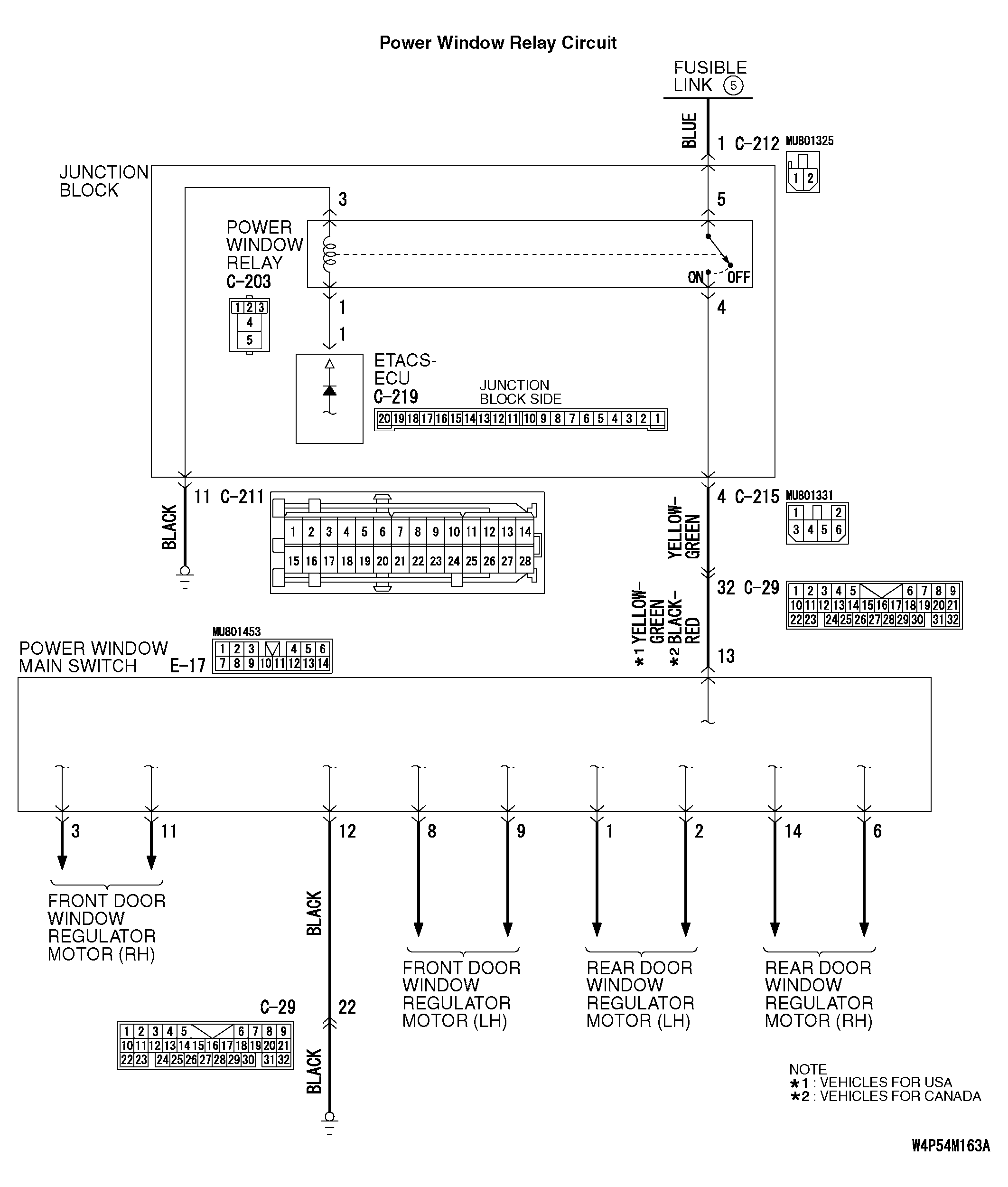

Fig 1: Power Window Relay Circuit Diagram

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

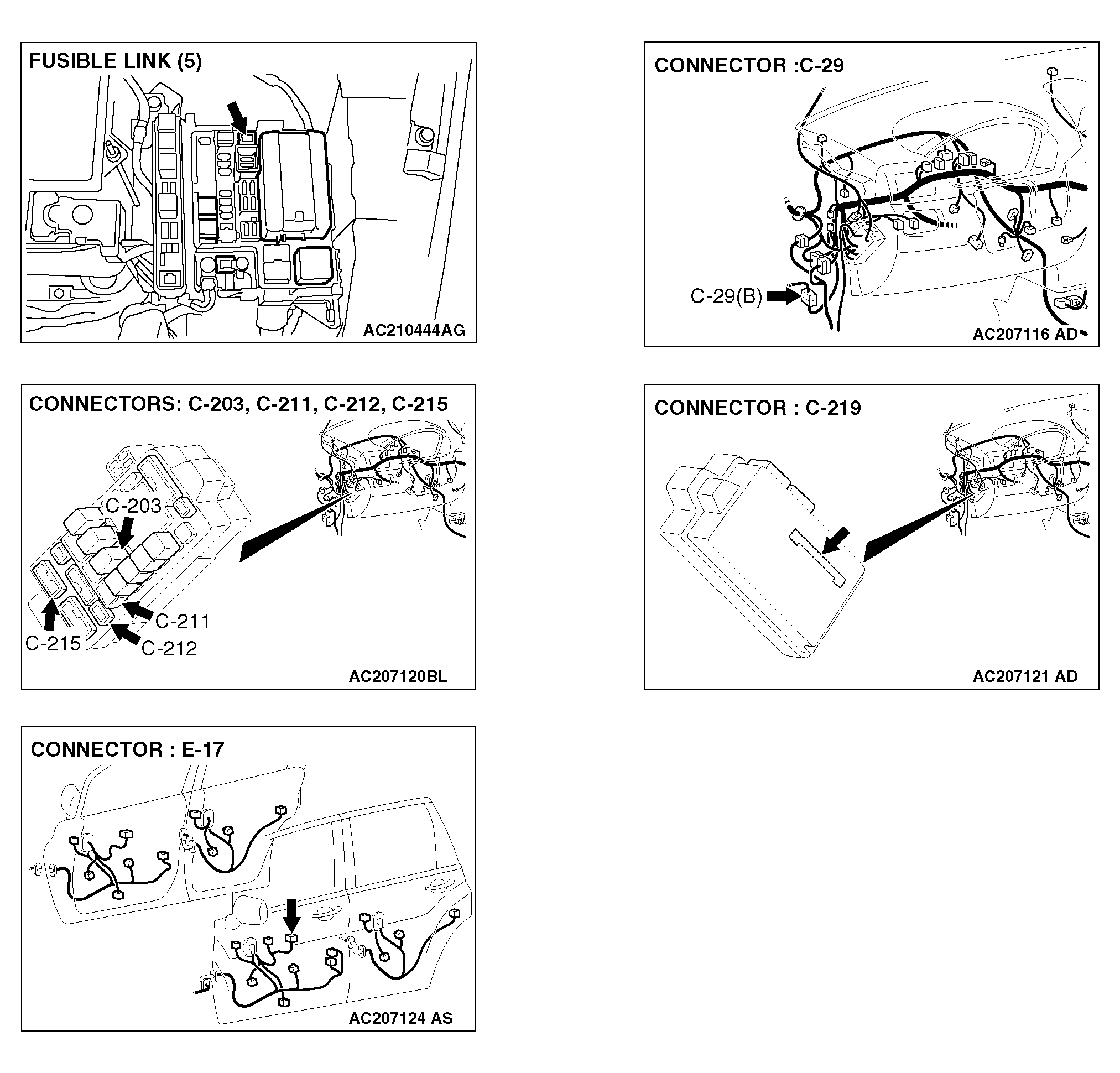

Fig 2: Power Window Relay Circuit Connector Locations

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
