DTC P0404-EGR Position Sensor Performance: Notes

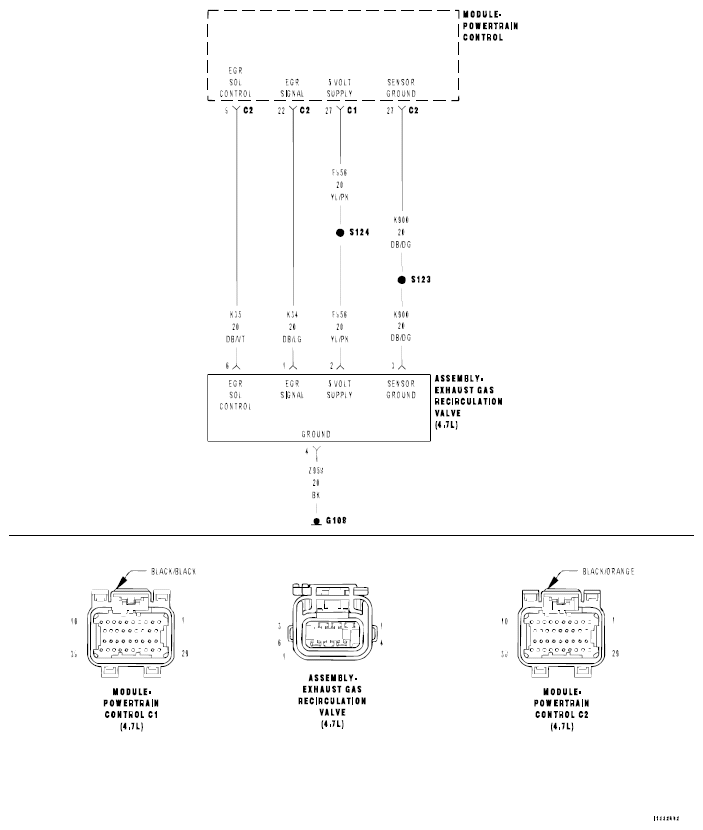

For a complete wiring diagram, refer to appropriate SYSTEM WIRING DIAGRAMS article.
Theory of Operation
The EGR valve has a position sensor and the EGR position rationality is designed to make sure that the valve moves freely within its operating range. Closed valve position reference check verifies that the valve is within its allowable upper and lower limits. The EGR position rationality test looks for a sustained error relative to commanded valve position.
- When Monitored:
Engine running.
- Set Condition:
The EGR flow or valve movement is not what is expected.
| Possible Causes |
|---|
| EXCESSIVE RESISTANCE IN THE (F856) 5-VOLT SUPPLY CIRCUIT |
| (K35) EGR SOLENOID CONTROL CIRCUIT |
| (K34) EGR SENSOR SIGNAL CIRCUIT OPEN |
| (K34) EGR SENSOR SIGNAL CIRCUIT SHORTED TO GROUND |
| (K900) SENSOR GROUND CIRCUIT OPEN |
| EGR SOLENOID ASSEMBLY |
| PCM |
Always perform the PRE-DIAGNOSTIC TROUBLESHOOTING PROCEDURE before proceeding.
