DTC P0406-EGR Position Sensor Circuit High: Notes

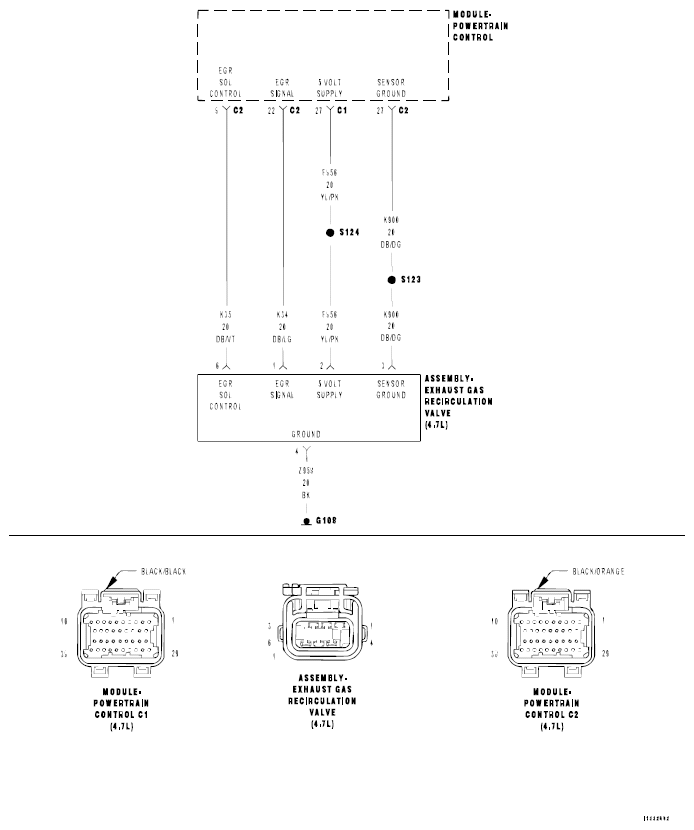

Fig 1: EGR System - Circuit Diagram

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

For a complete wiring diagram, refer to appropriate SYSTEM WIRING DIAGRAMS article.

• When Monitored:

  With the ignition on. Battery voltage greater than 10 volts.

• Set Condition:

  EGR position sensor signal is greater than 4.89. One trip Fault.

Always perform the PRE-DIAGNOSTIC TROUBLESHOOTING PROCEDURE before proceeding.
