Lancer Evolution MR
›
Repair and Diagnosis
›
Transmission
›
Automatic Trans
›
Twin Clutch SST - Lancer Evolution
›
Key Interlock And Shift Lock Mechanisms
›
Removal And Installation
›
Notes
Removal And Installation: Notes

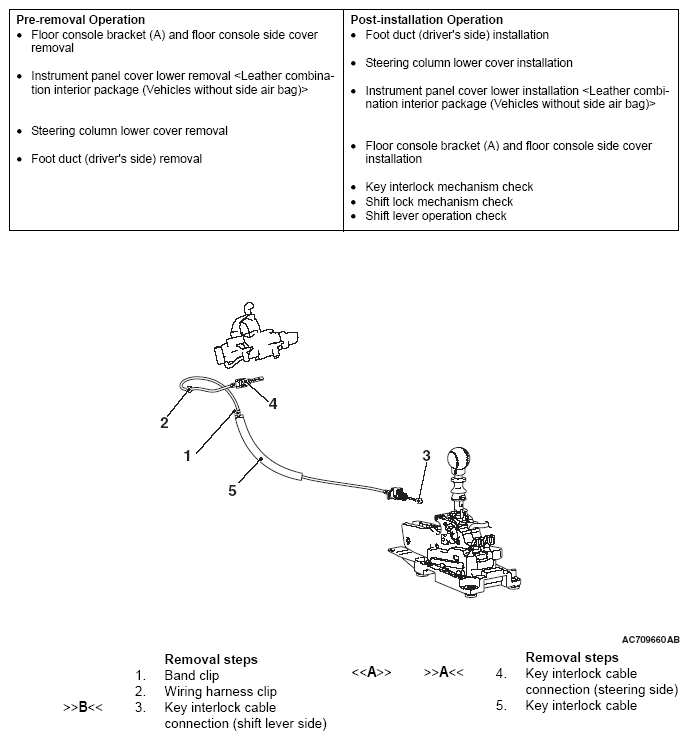

Fig 1: Identifying Key Interlock And Shift Lock Mechanisms Components
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
