Twin Clutch SST - Lancer Evolution
›
Paddle Shift Assembly
›
Removal And Installation
Removal And Installation

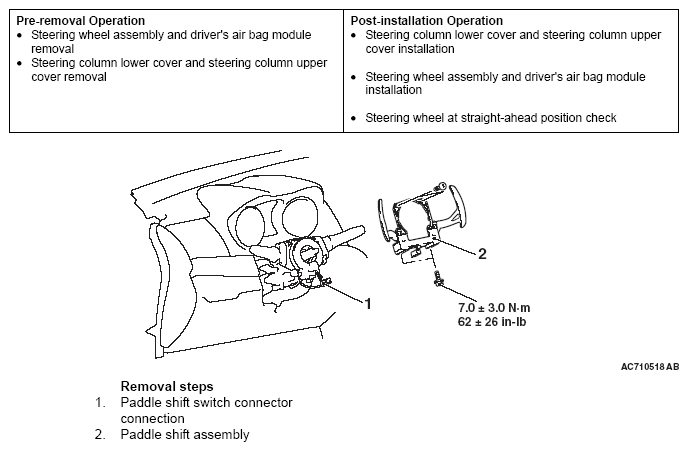

Fig 1: Paddle Shift Assembly Replacement Components With Torque Specifications
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
