Section 12 (Continuously Variable Transaxle On-Vehicle Service -- Lancer)
›
General Information
›
Sectional View
Sectional View
WARNING:
This page is about a different variant/trim than selected.

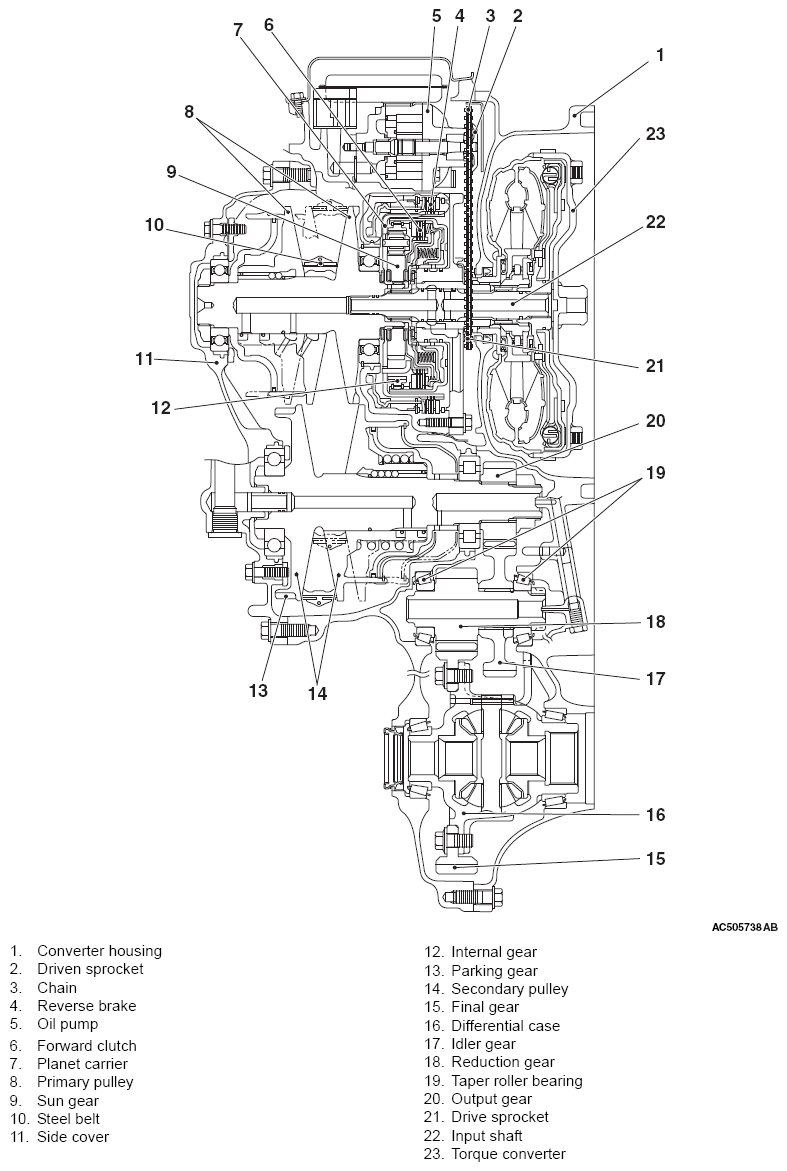

Fig 1: Sectional View Of Transaxle
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
