Removal And Installation

WARNING: This page is about a different variant/trim than selected.

CAUTION: To store the change pulley ratio status of the transaxle assembly in the TCM memory, drive the vehicle at 3 km/h (1.9 mph) or faster after replacing the TCM.

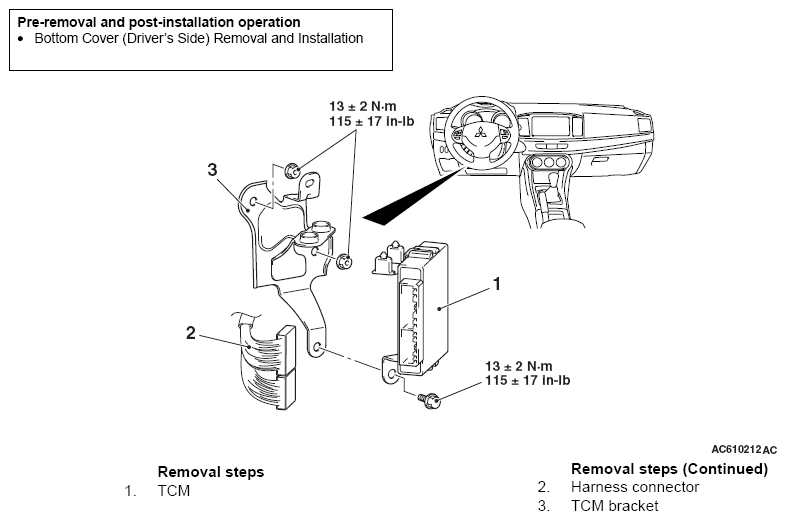

Fig 1: Transaxle Control Module (TCM), Harness Connector And TCM Bracket With Torque Specifications

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
