Disassembly And Assembly: Notes

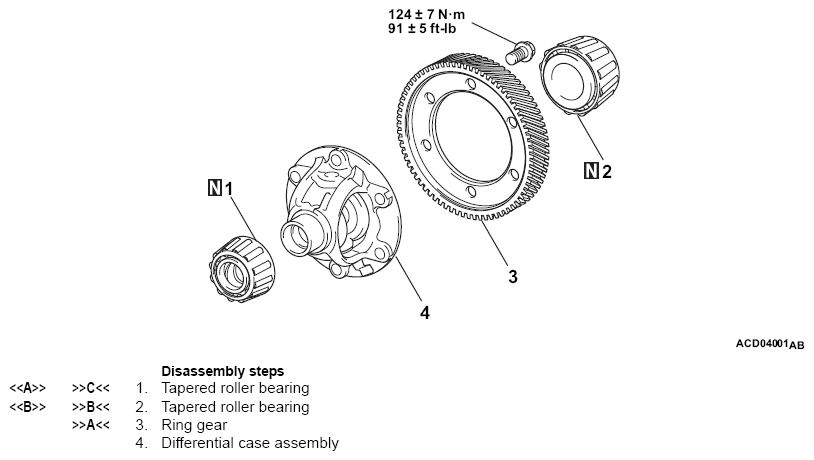

Fig 1: Disassembling/Assembling Differential Components With Torque Specifications

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:

• MD998917: Bearing Remover
• MD998812: Installer Cap
• MD998813: Installer-100
• MD998821: Installer adapter (44)
