Removal And Installation: Notes

WARNING: This page is about a different car, the 2020 Mitsubishi Outlander PHEV. However, it is still accessible from the selected car via links, so may be relevant.

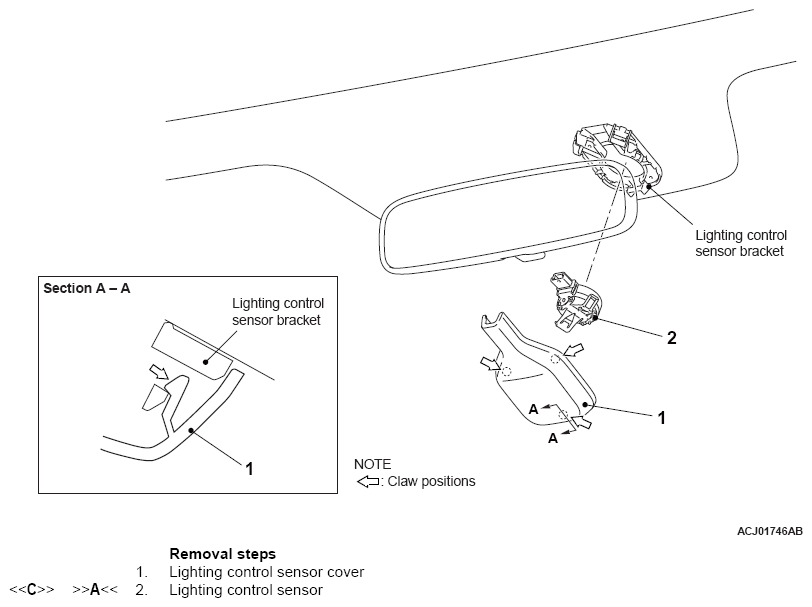

<Vehicles without FCM/LDW/AHB-ECU>

G13502937Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

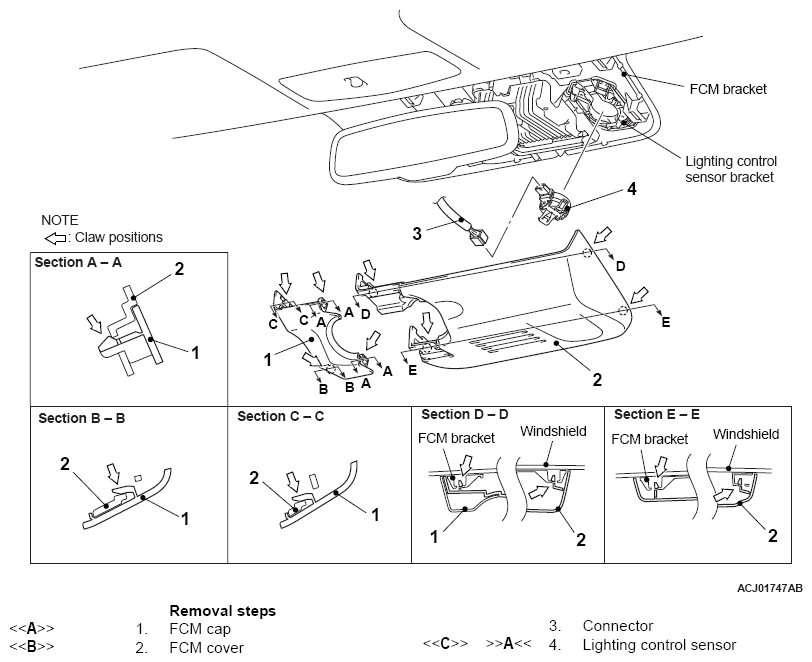

<Vehicles with FCM/LDW/AHB-ECU>

G13502938Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
