Disassembly And Assembly: Notes

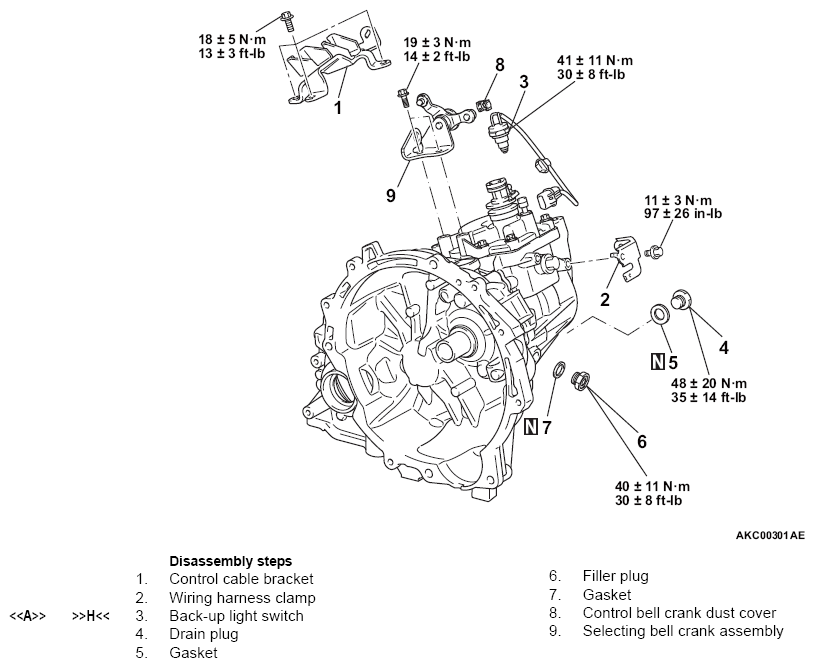

Fig 1: Disassembling/Assembling Transaxle Components Location With Torque Specification (1 Of 3)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

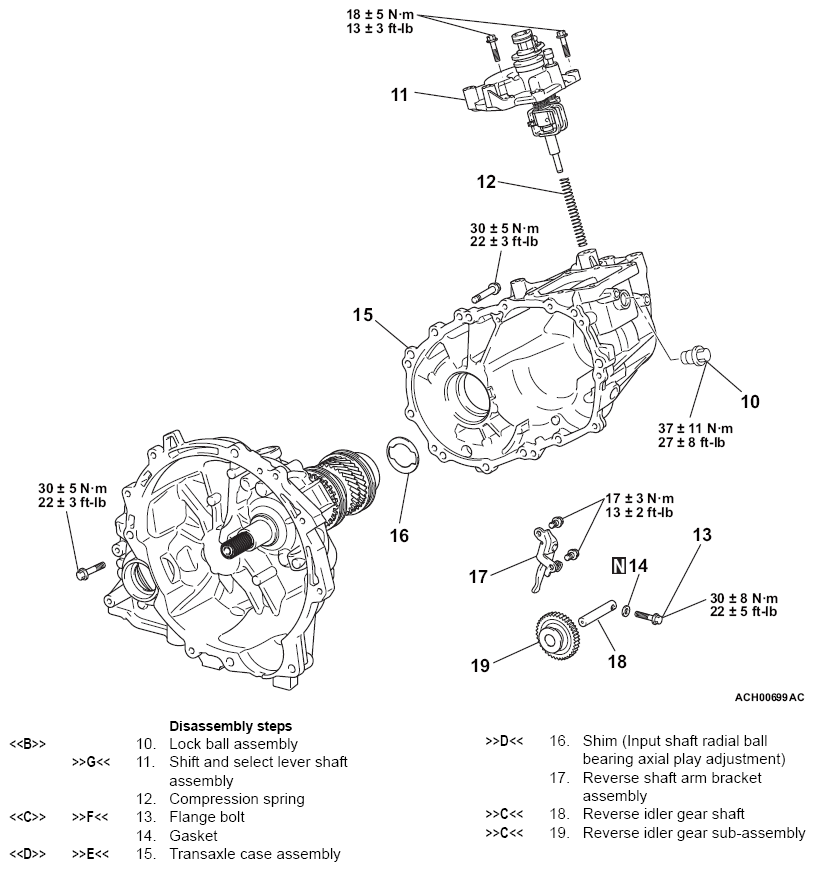

Fig 2: Disassembling/Assembling Transaxle Components Location With Torque Specification (2 Of 3)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

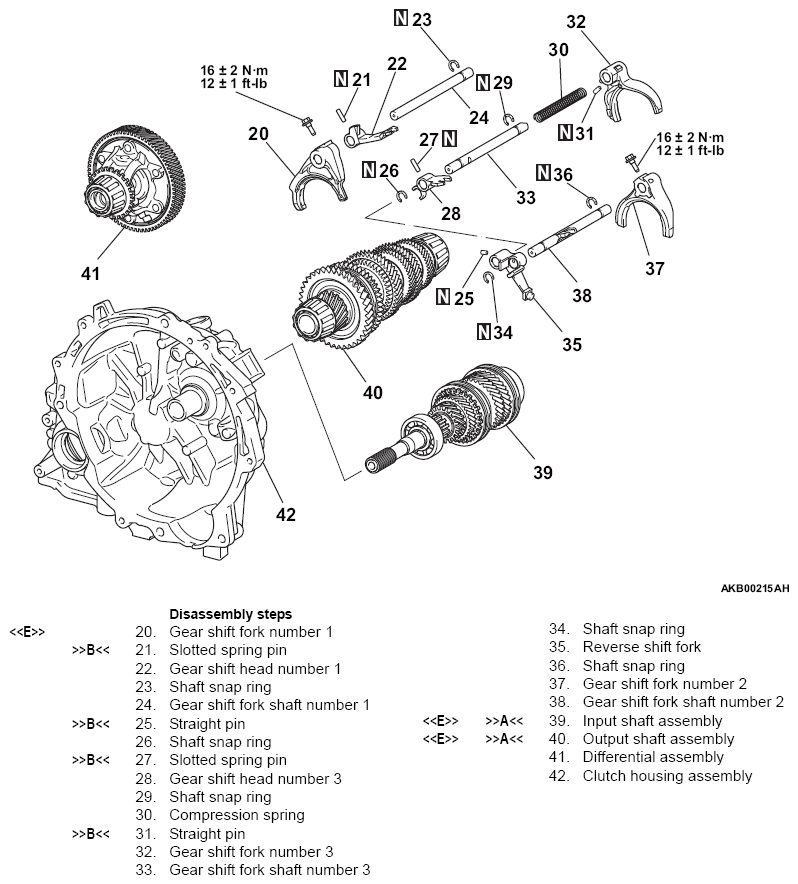

Fig 3: Disassembling/Assembling Transaxle Components Location With Torque Specification (3 Of 3)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:
