System Description: Description

WARNING: This page is about a different car, the 2023 Mitsubishi Outlander PHEV. However, it is still accessible from the selected car via links, so may be relevant.

CAN (Controller Area Network) is a serial communication line for real time application. It is an on-vehicle multiplex communication line with high data communication speed and excellent error detection ability. Many electronic control units are equipped onto a vehicle, and each control unit shares information and links with other control units during operation (not independent). In CAN communication, control units are connected with 2 communication lines (CAN-H line, CAN-L line) allowing a high rate of information transmission with less wiring. Each control unit transmits/receives data but selectively reads required data only.
The following control units include a gateway function and communicate signals between the different CAN communication circuits.

CAN communication circuit	Gateway control unit	Reference
Between the following circuits. Vehicle CAN communication 1 circuit Vehicle CAN communication 2 circuit Vehicle CAN communication 3 circuit	BCM	SYSTEM DESCRIPTION
Between the following circuits. Vehicle CAN communication 3 circuit ITS CAN communication 1 circuit ITS CAN communication 4 circuit Chassis CAN communication 3 circuit Drivetrain CAN communication 2 circuit IT CAN communication circuit Diagnostic CAN communication circuit	8CH CAN gateway	8CH CAN Gateway COMPONENT DESCRIPTION
Between the following circuits. ITS CAN communication 1 circuit ITS CAN communication 2 circuit ITS CAN communication 3 circuit ITS CAN communication 4 circuit	ADAS control unit 2	ADAS CONTROL UNIT 2
Between the following circuits. Chassis CAN communication 1 circuit Chassis CAN communication 2 circuit Chassis CAN communication 3 circuit Chassis CAN communication 4 circuit Drivetrain CAN communication 1 circuit	Chassis control module	SYSTEM DESCRIPTION
Between the following circuits. ITS CAN communication 1 circuit ITS CAN communication 4 circuit ITS CAN communication 5 circuit	Around view monitor control unit	AROUND VIEW MONITOR CONTROL UNIT
ITS CAN communication 4 circuit ITS CAN communication 5 circuit	Sonar control unit	SONAR CONTROL UNIT
Chassis CAN communication 2 circuit Chassis CAN communication 4 circuit	ABS actuator and electric unit	SYSTEM DESCRIPTION
Between the following circuits. Drivetrain CAN communication 1 circuit Drivetrain CAN communication 2 circuit Engine CAN communication circuit	PHEV-ECU	GENERAL INFORMATION

CAN Communication Signal Generation

Termination circuits (resistors) are connected across the CAN communication system. When transmitting a CAN communication signal, each control unit passes a current to the CAN-H line and the current returns to the CAN-L line.

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
The current flows separately into the termination circuits connected across the CAN communication system and the termination circuits drop voltage to generate a potential difference between the CAN-H line and the CAN-L line.

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

NOTE: A signal with no current passage is called "Recessive" and one with current passage is called "Dominant".
The system produces digital signals for signal communications, by using the potential difference.

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

The Construction of CAN Communication Signal (Message)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

No.	Message name	Description
1	Start of frame (1 bit)	Start of message.
2	Arbitration of field (11 bit)	Priorities of message-sending are shown when there is a possibility that multiple messages are sent at the same time.
3	Control field (6 bit)	Signal quantity in data field is shown.
4	Data field (0-64 bit)	Actual signal is shown.
5	CRC field (16 bit)	The transmitting control unit calculates sending data in advance and writes the calculated value in a message. The receiving control unit calculates received data and judges that the data reception is normal when the calculated value is the same as the value written in the sent data.
6	ACK field (2 bit)	The completion of normal reception is sent to the transmitting unit.
7	End of frame (7 bit)	End of message.

CAN Communication Line

The CAN communication line is a twisted pair wire consisting of strands of CAN-H (1) and CAN-L (2) and has noise immunity.

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

NOTE: The CAN communication system has the characteristics of noise-resistant because this system produces digital signals by using the potential difference between the CAN-H line and the CAN-L line and has the twisted pair wire structure.
Since the CAN-H line and the CAN-L line are always adjacent to each other, the same degree of noise occurs, respectively, when a noise (1) occurs. Although the noise changes the voltage, the potential difference (2) between the CAN-H line and the CAN-L line is insensitive to noise. Therefore, noise-resistant signals can be obtained.

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

CAN Signal Communications

Each control unit of the CAN communication system transmits signals through the CAN communication control circuit included in the control unit and receives only necessary signals from each control unit to perform various kinds of control.

Example: Transmitted signals

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

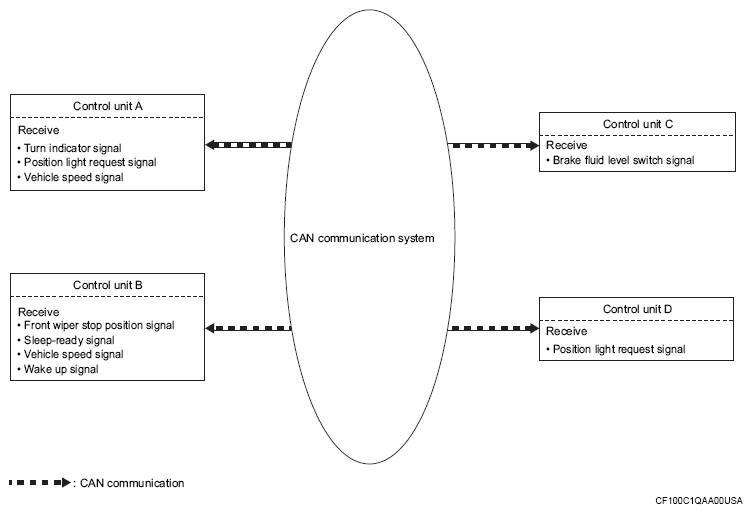

Example: Received signals

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

NOTE: The above signal names and signal communications are provided for reference purposes. For CAN communications signals of this vehicle, refer to CAN COMMUNICATION SIGNAL CHART .
