Interior Lamp Operation Check

Check if the interior lamp switch is in the "ON" position and the lamp illuminates.

Does interior lamp illuminate?

Yes : GO TO 2.

No : Check the following.

• Harness for open or short between smart entrance control unit and interior lamp
• Interior lamp

With CONSULT-II

1. Select "ACTIVE TEST' in "MULTI REMOTE ENT" with CONSULT-II.
2. Select "INT/IGN ILLUM" and touch "ON".
   Fig 1: Checking Interior Lamp Operation With CONSULT-II

   Courtesy of NISSAN MOTOR CO., U.S.A.

Without CONSULT-II

Push unlock button of keyfob with all doors closed, and check voltage between smart entrance control unit harness connector terminal 8 and ground.

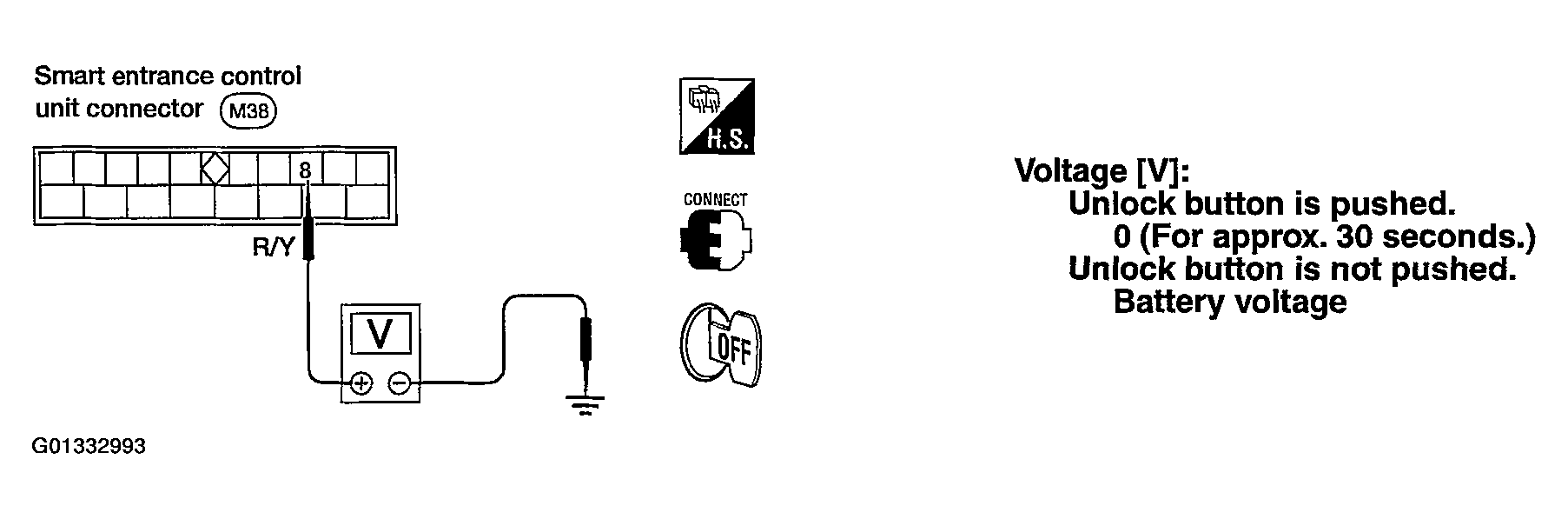

Fig 2: Checking Interior Lamp Operation Without CONSULT-II

Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to "FIG. 2  ".

OK or NG

OK : System is OK.

NG : Check harness open or short between smart entrance control unit and interior lamp.
