Function Of Control Valves

WARNING: This page is about a different car, the 2004 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

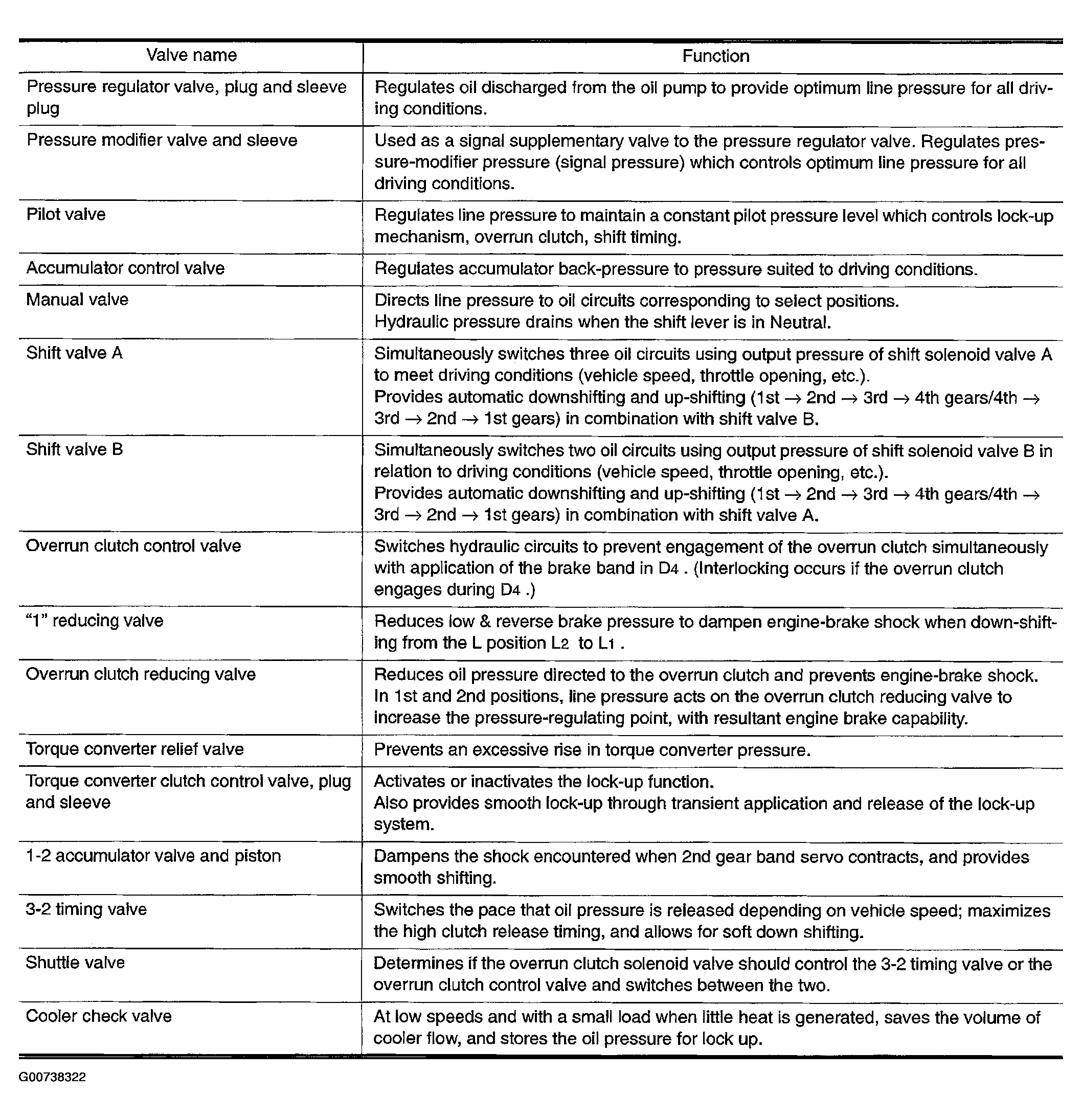

Fig 1: Control Valves Function Chart

Courtesy of NISSAN MOTOR CO., U.S.A.
