Transmission Control Cable: Removal

WARNING: This page is about a different car, the 2006 Scion tC. However, it is still accessible from the selected car via links, so may be relevant.
  1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
    CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.
  2. REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY (See  REMOVAL  )
  3. REMOVE CONSOLE PANEL UPPER (See  REMOVAL  )
  4. REMOVE REAR CONSOLE PANEL SUB-ASSEMBLY UPPER (See  REMOVAL  )
  5. REMOVE REAR CONSOLE BOX ASSEMBLY (See  REMOVAL  )
  6. REMOVE AIR CONDITIONING UNIT ASSEMBLY (See  REMOVAL  )
  7. REMOVE CENTER AIRBAG SENSOR ASSEMBLY
  8. REMOVE EXHAUST PIPE ASSEMBLY (See  REMOVAL  )
  9. REMOVE FRONT NO. 1 FLOOR HEAT INSULATOR
  10. DISCONNECT TRANSMISSION CONTROL CABLE ASSEMBLY
    1. Remove the 2 clips and disconnect the cable ends of the control cable.
      Fig 1: Removing Clips And Cable Ends Of Control Cable
      G04222471Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Using a screwdriver, release the cable locks of the shift cable and select cable.
      Fig 2: Releasing Cable Locks Of Shift Cable And Select Cable
      G04222472Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Turn the lock nuts 180°counterclockwise, and hold them in that position to remove the shift cable and select cable.
    4. Remove the shift cable from the floor shift shift lever assembly while holding the lock nut.
    5. Repeat the above process for the select cable.
    NOTE: Do not push in the cable locks.

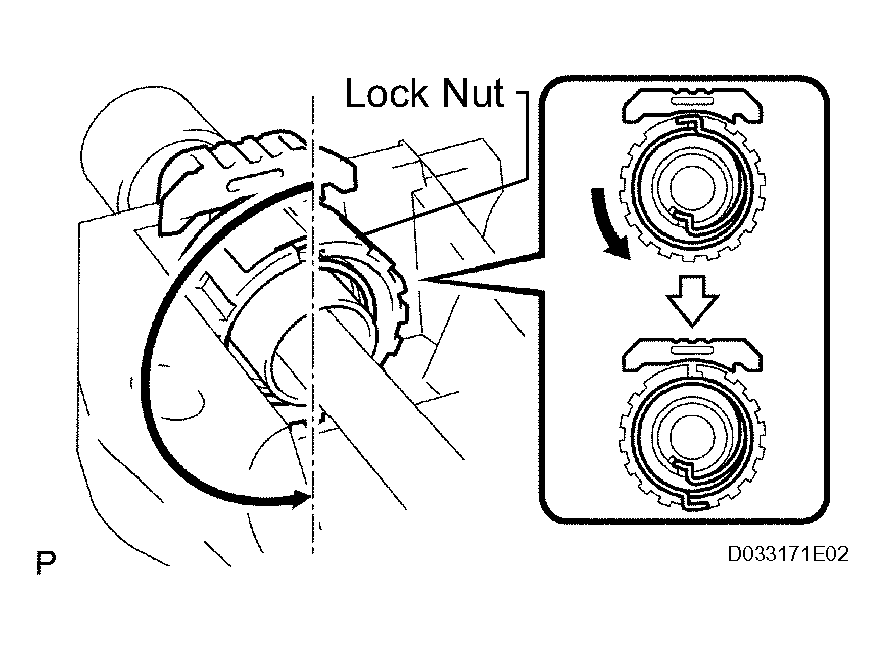

    Fig 3: Turning Lock Nuts
    G04222473Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  11. REMOVE TRANSMISSION CONTROL CABLE ASSEMBLY
    1. Remove the 2 clips and 2 washers, and disconnect the top ends of the control cable from the transaxle.
    2. Remove the 2 clips and disconnect the control cable bracket.
      Fig 4: Removing Clips And Control Cable Bracket
      G04222474Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Remove the 2 nuts and clamp from the body.
    4. Remove the clamp from the control cable.

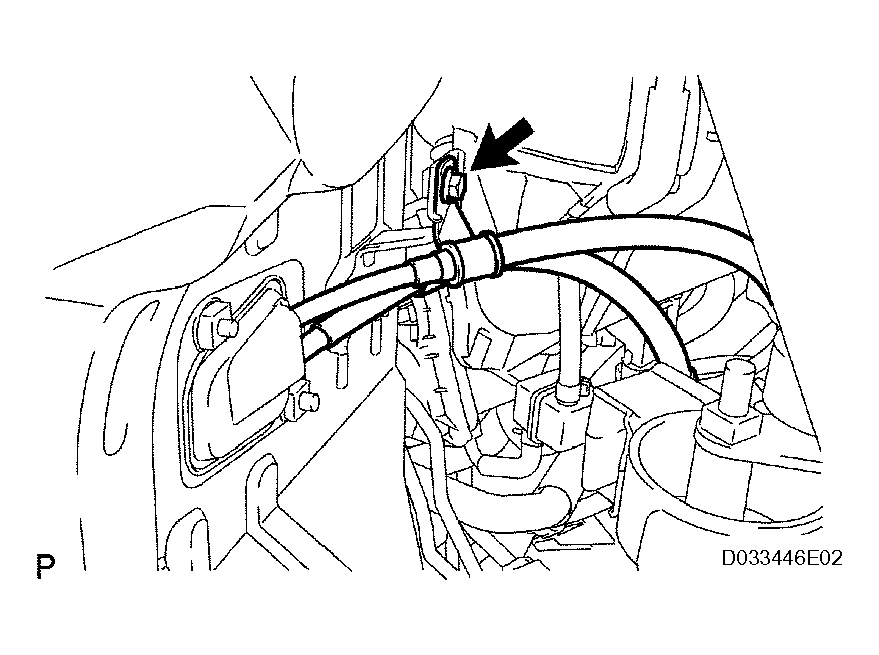

      Fig 5: Removing Nuts And Clamp From Body
      G04222475Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Remove the 2 bolts from the retainer.
    6. Pull out the control cable from the floor.
    Fig 6: Removing Bolts From Retainer
    G04222476Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
