Rear Lower Control Arm: Installation

WARNING: This page is about a different car, the 2006 Scion tC. However, it is still accessible from the selected car via links, so may be relevant.

INSTALL LOWER CONTROL ARM ASSEMBLY
1. Install the lower control arm to the rear suspension member, and temporarily tighten the bolt.

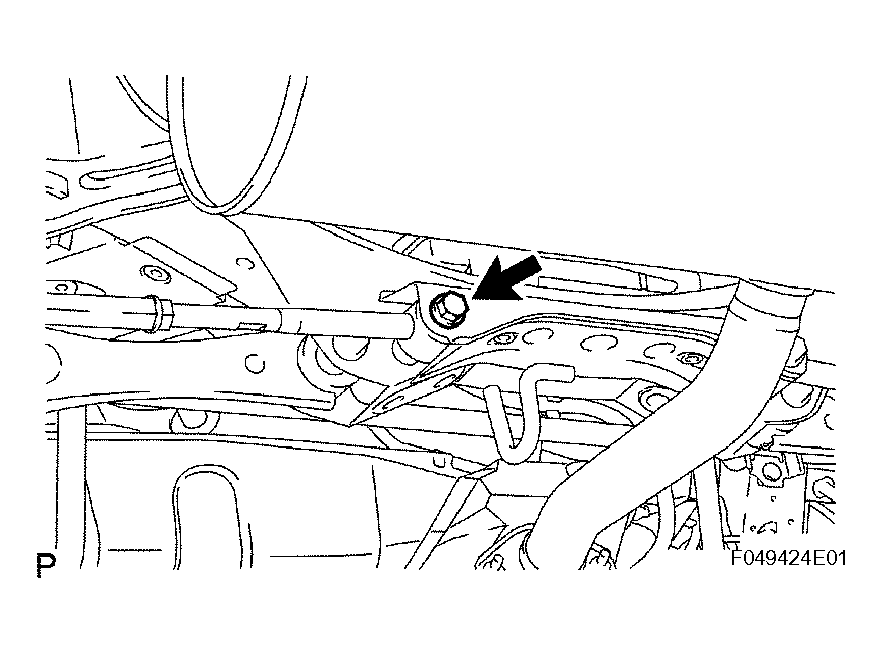

  Fig 1: Installing Lower Control Arm Assembly Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the nut.
  Torque: 105 N*m (1,050 kgf*cm, 77 ft.*lbf)
3. Install the clip.
  NOTE:
  - When the holes for the clip are not aligned, adjust them by tightening the nut. The tightening angle for the adjustment must be less than 60°.
  - Insert the clip from the rear side of the vehicle.
Fig 2: Installing Nut
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL REAR WHEEL
Torque: 103 N*m (1,050 kgf*cm, 76 ft.*lbf)
STABILIZE SUSPENSION (See INSTALLATION )
FULLY TIGHTEN LOWER CONTROL ARM ASSEMBLY
1. Fully tighten the bolt.
  Torque: 115 N*m (1,170 kgf*cm, 85 ft.*lbf)
INSPECT AND ADJUST REAR WHEEL ALIGNMENT
1. Inspect and ADJUST the REAR WHEEL ALIGNMENT .

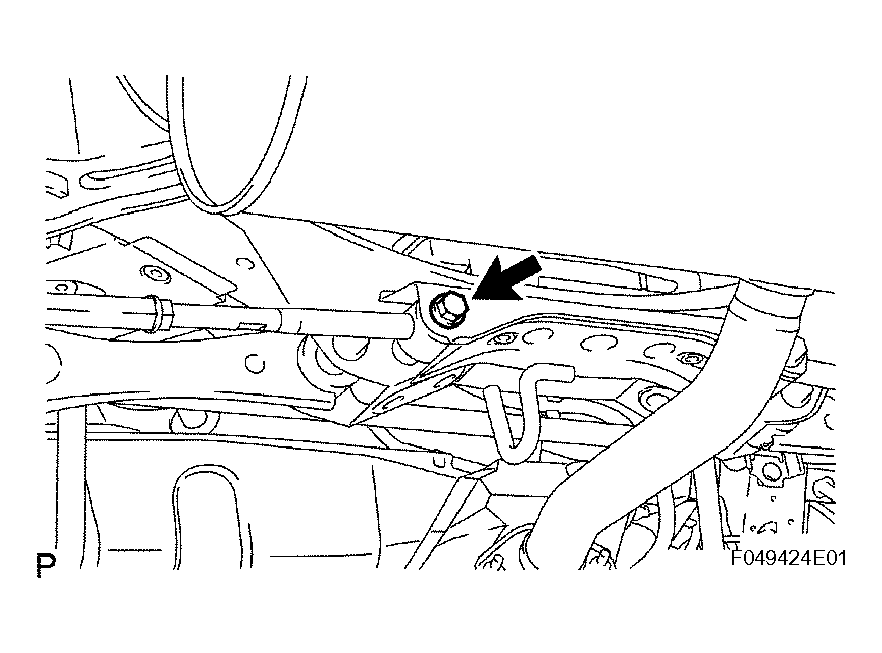

Fig 3: Installing Lower Control Arm Assembly Bolts
