Rear Upper Control Arm: Installation

WARNING: This page is about a different car, the 2006 Scion tC. However, it is still accessible from the selected car via links, so may be relevant.

INSTALL REAR UPPER CONTROL ARM ASSEMBLY
1. Install the camber adjust cam from the front side of the vehicle, and temporarily fix it with the nut and the No. 2 camber adjust cam.

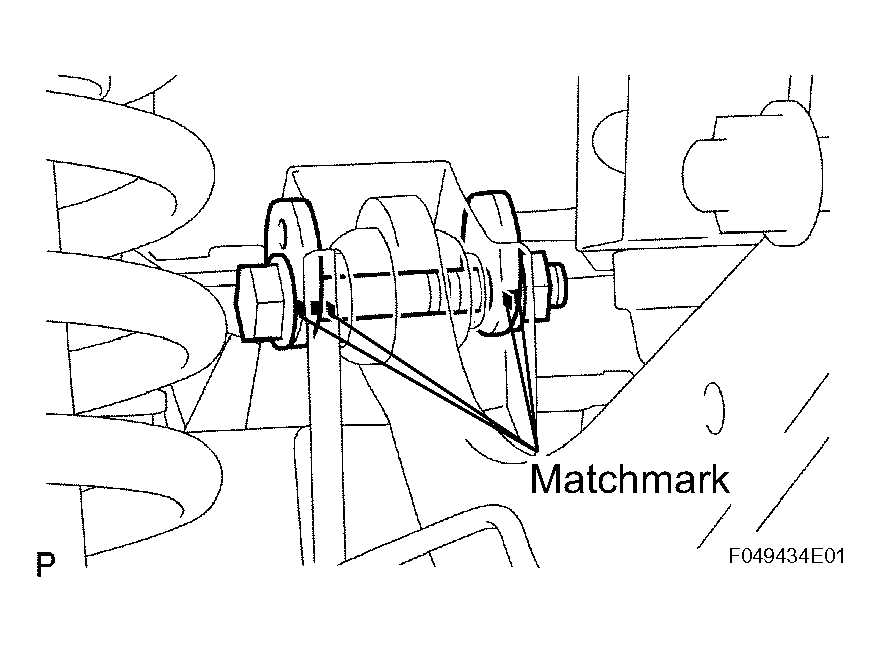

  Fig 1: Putting Matchmarks On Camber Adjust Cam
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the upper control arm, and temporarily tighten the bolt and nut.
INSTALL REAR WHEEL
Torque: 103 N*m (1,050 kgf*cm, 76 ft.*lbf)
STABILIZE SUSPENSION (See INSTALLATION )

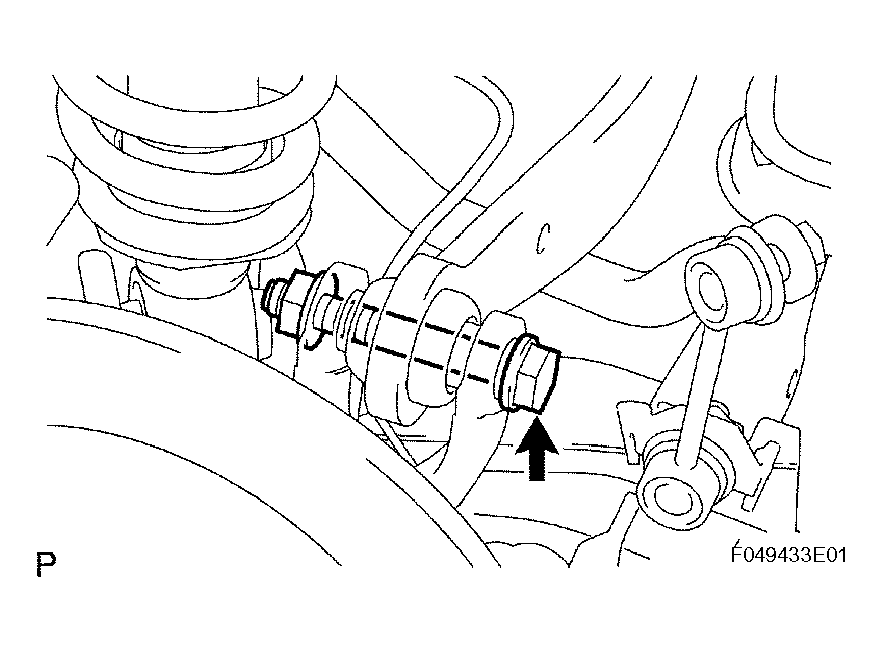

Fig 2: Installing Upper Control Arm Bolt And Nut
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
FULLY TIGHTEN REAR UPPER CONTROL ARM ASSEMBLY
1. Fully tighten the bolt and nut.
  Torque: 74 N*m (755 kgf*cm, 55 ft.*lbf)

  NOTE: When installing the bolt, hold the nut in place.

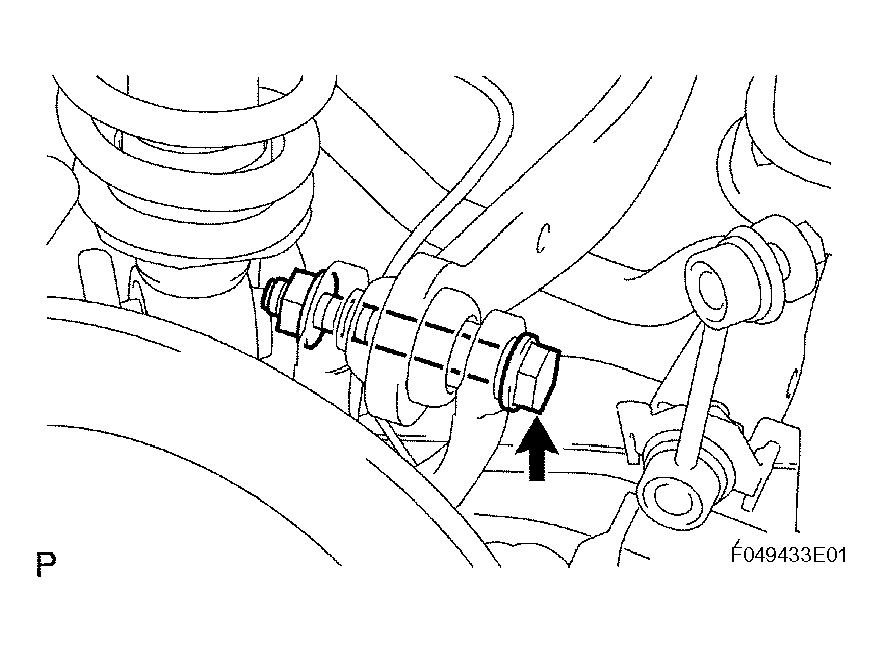

  Fig 3: Tightening Rear Upper Control Arm Assembly Nut And Bolt
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Align the matchmarks, and fully tighten the nut.
  Torque: 74 N*m (755 kgf*cm, 55 ft.*lbf)
INSPECT AND ADJUST REAR WHEEL ALIGNMENT
1. Inspect and ADJUST the REAR WHEEL ALIGNMENT .

Fig 4: Aligning Matchmarks
