INSTALL AIR CONDITIONING RADIATOR ASSEMBLY

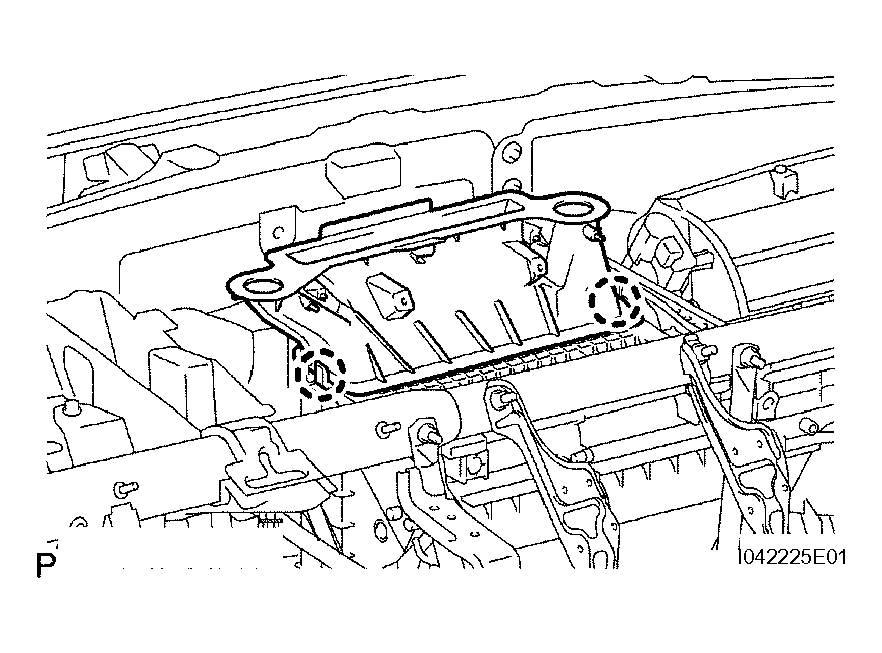

1. Temporarily tighten the air conditioning radiator with the 2 nuts.

  Fig 1: Tightening Air Conditioning Radiator With 2 Nuts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Connect the 2 connectors.
INSTALL AIR CONDITIONING UNIT ASSEMBLY

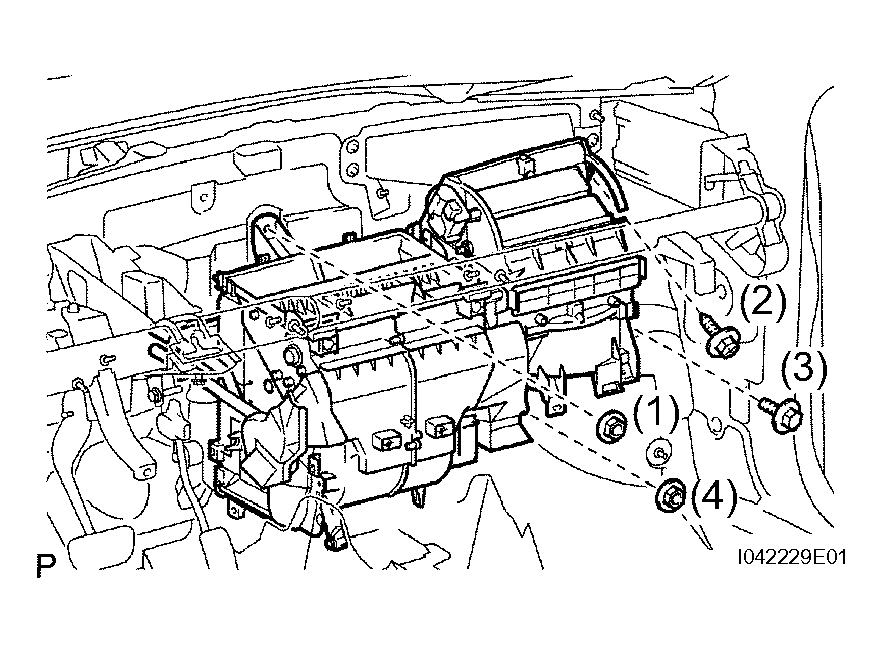

1. Fully tighten the air conditioner unit with the bolt, screw and 2 nuts.
  Torque: 9.8 N*m (100 kgf*cm, 7 ft.*lbf)

  NOTE: Tighten in the order indicated in the illustration.

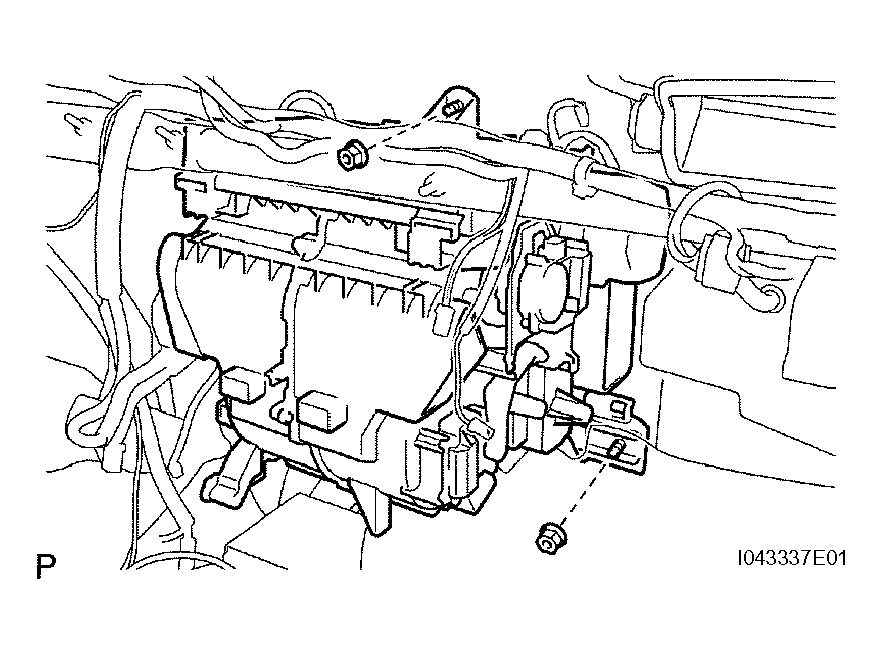

Fig 3: Tightening Air Conditioner Unit With Bolt
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

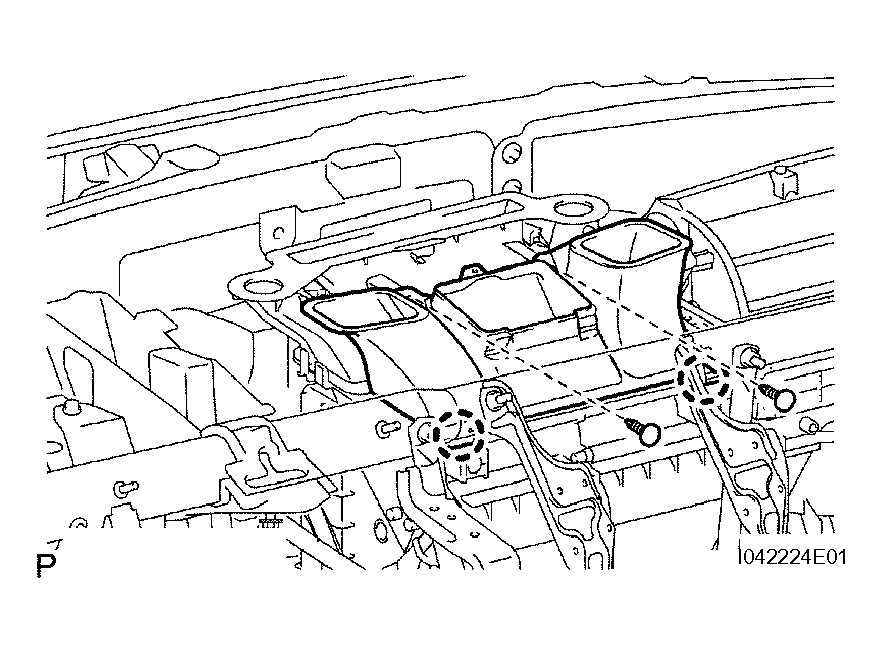

INSTALL AIR DUCT
1. Attach the 2 claws and install the air duct.

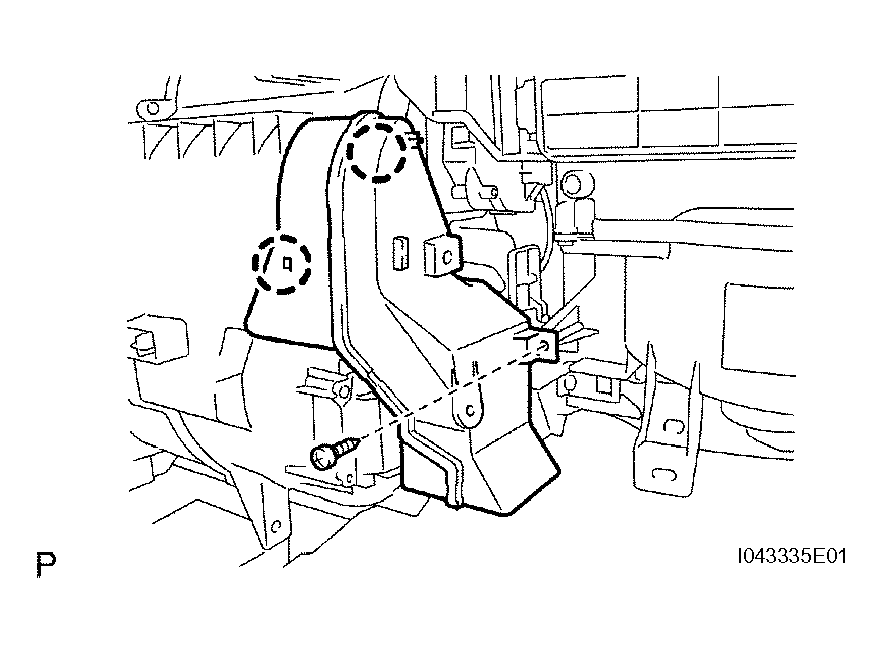

  Fig 4: Attaching Claws And Installing Air Duct
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the screw.

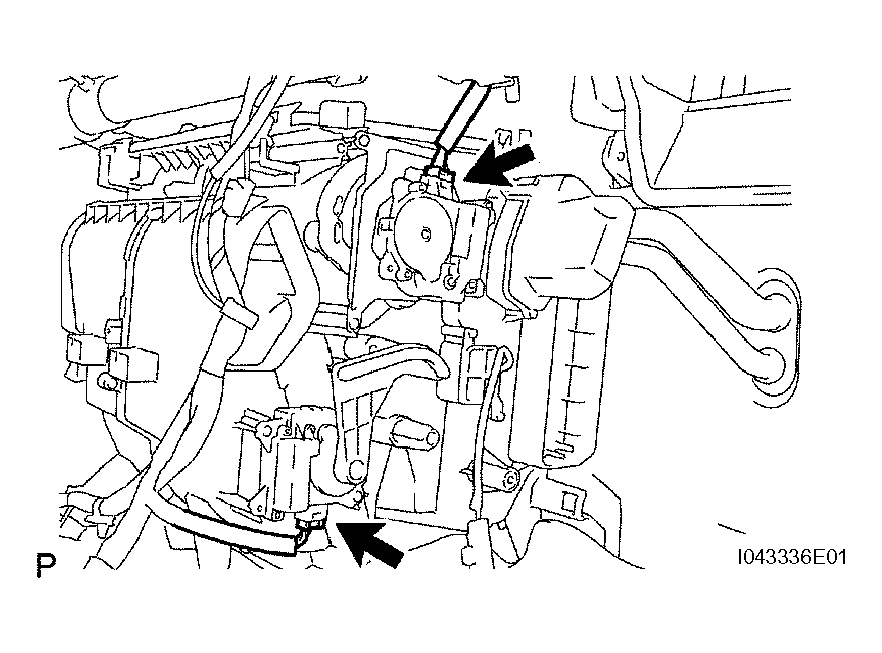

3. Connect the connector and install the connector to the air duct.

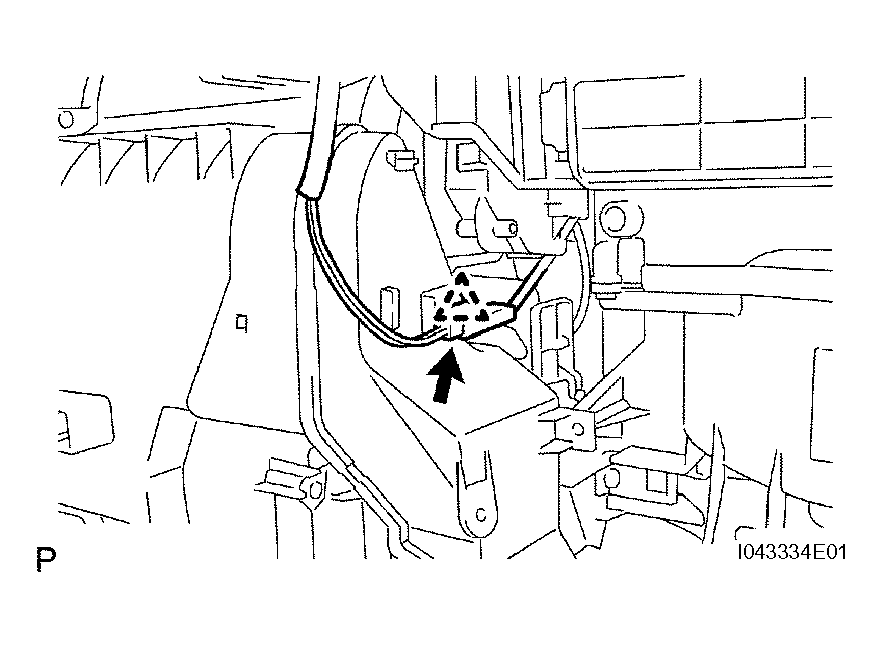

Fig 5: Connecting Connector And Installing Connector To Air Duct
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

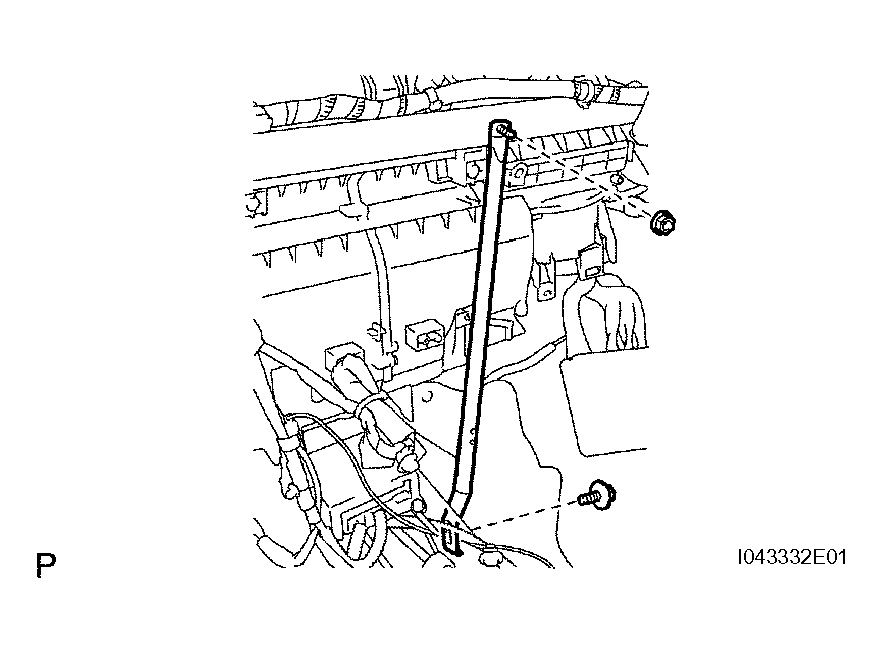

INSTALL NO. 2 INSTRUMENT PANEL BRACE SUBASSEMBLY
1. Install the instrument panel brace with the bolt and nut.

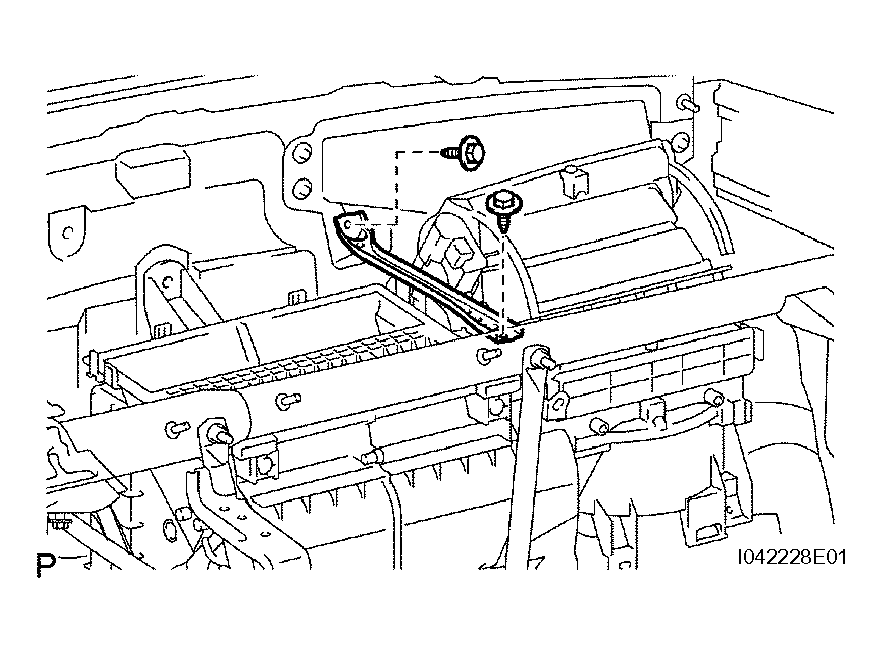

  Fig 6: Installing Instrument Panel Brace With Bolt And Nut
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the antenna cord and attach the clamp.
3. Install the wire harness and attach the 2 clamps.

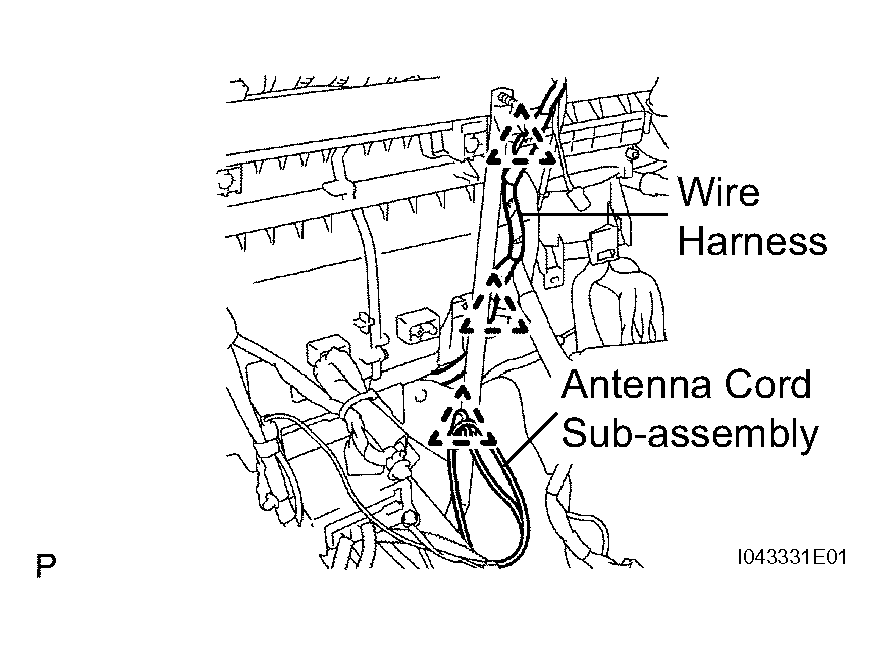

Fig 7: Installing Wire Harness And Attaching Clamps
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

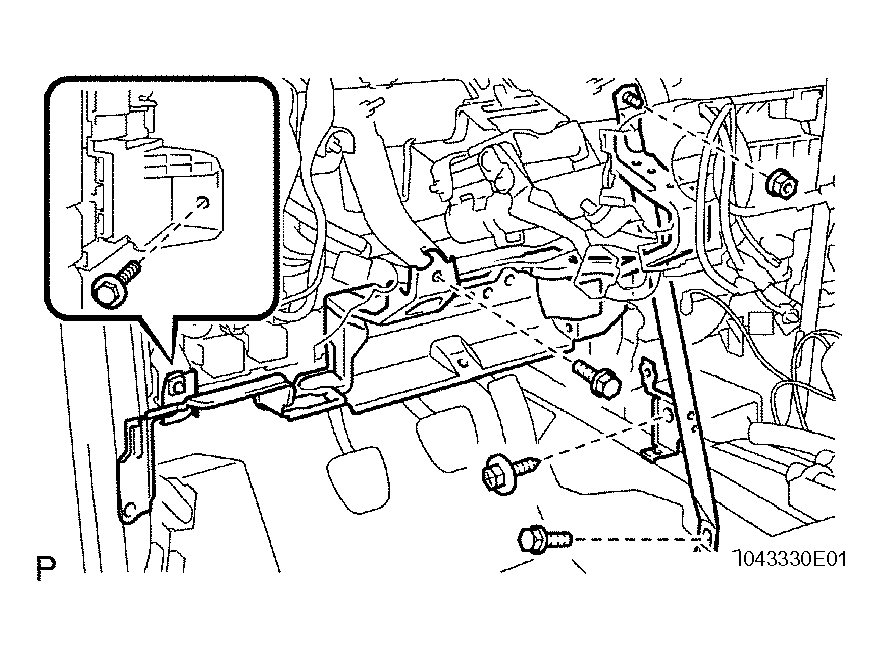

INSTALL INSTRUMENT PANEL TO COWL BRACE SUB-ASSEMBLY
1. Install the instrument panel to cowl brace with the 3 bolts and nut.

  Fig 8: Installing Instrument Panel To Cowl Brace With Bolts And Nut
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Attach the 2 claws to install the connector.

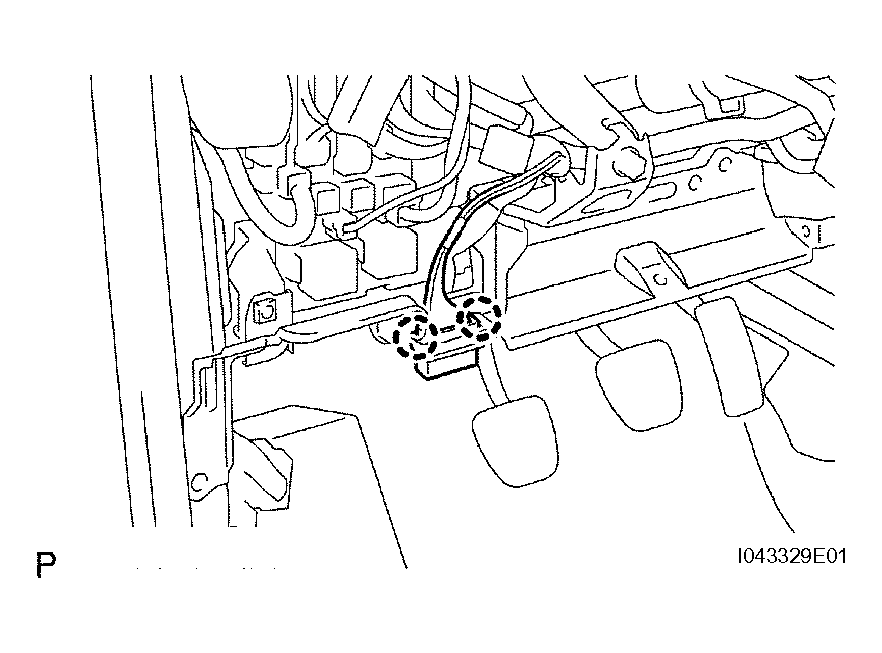

  Fig 9: Attaching Claws To Installing Connector
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Install the wire harness and attach the 2 clamps.

  Fig 10: Installing Wire Harness And Attaching Clamps
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Install the ground wire with the bolt.

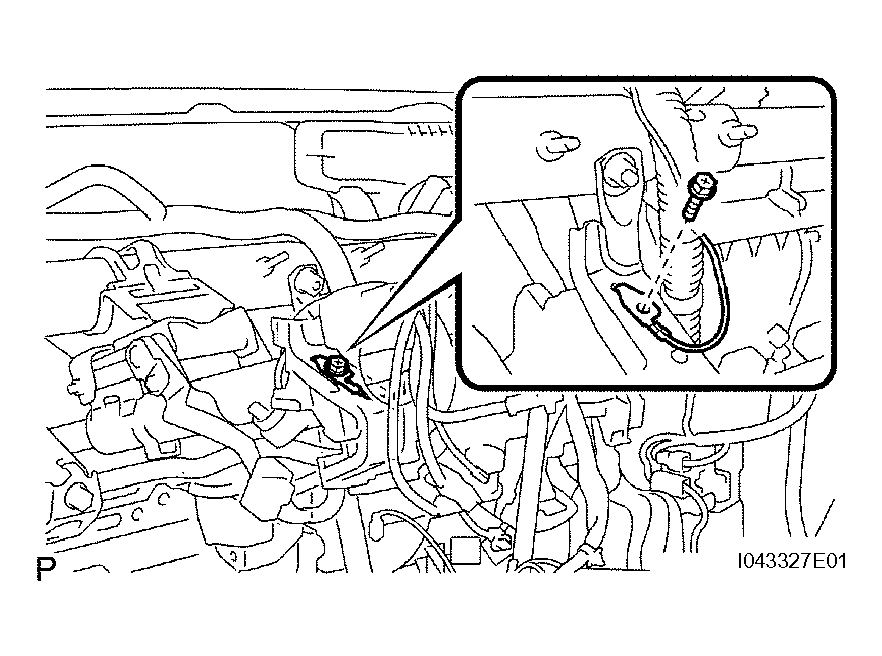

  Fig 11: Installing Ground Wire With Bolt
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

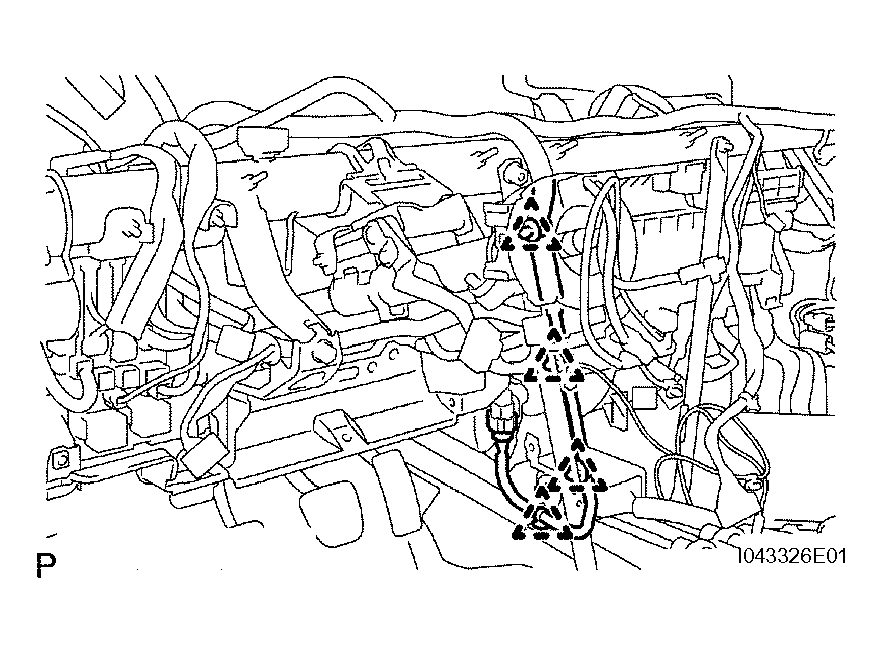

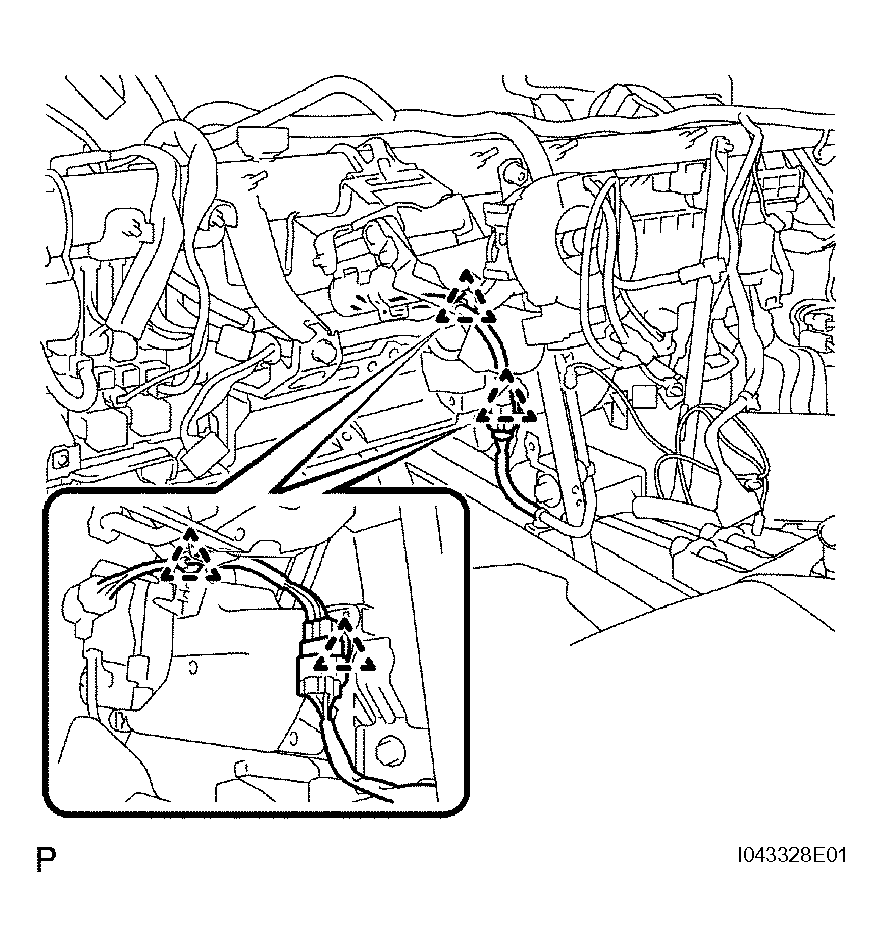

5. Install the wire harness and attach the 4 clamps.

  Fig 12: Installing Wire Harness And Attaching Clamps
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

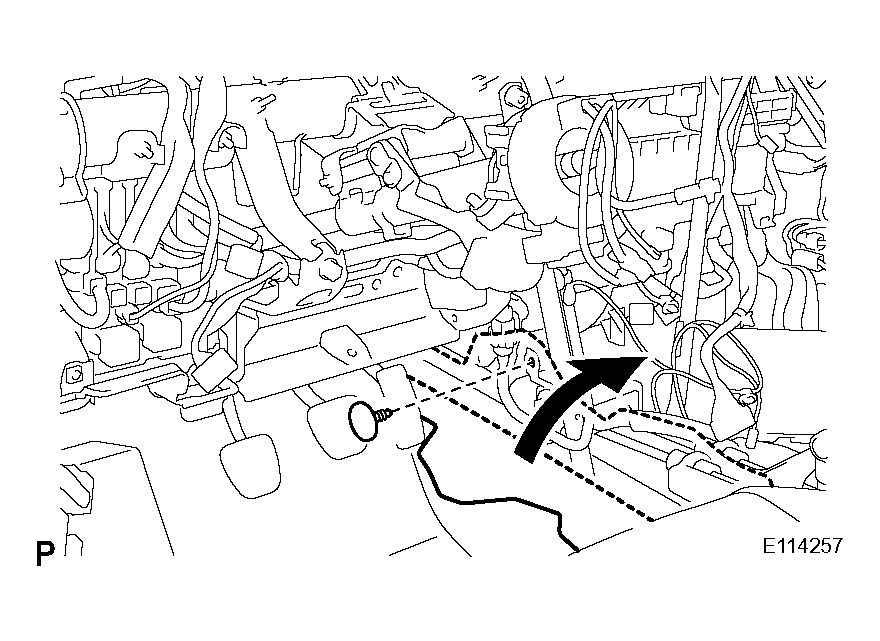

6. Reposition the floor carpet and install the clip.
Fig 13: Installing Clip
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL INSTRUMENT PANEL TO COWL BRACE CENTER
1. Install the instrument panel to cowl brace center with the 2 bolts.
Fig 14: Installing Instrument Panel To Cowl Brace Center With Bolts
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL DEFROSTER NOZZLE ASSEMBLY LOWER
1. Attach the 2 claws and install the defroster nozzle assembly lower.
Fig 15: Installing Defroster Nozzle Assembly Lower
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL NO. 3 HEATER TO REGISTER DUCT
1. Attach the 2 claws and install the heater to register duct.
2. Install the 2 clips.
INSTALL ECM (See INSTALLATION )
INSTALL INSTRUMENT PANEL LOWER ASSEMBLY
1. Install the instrument panel lower assembly (see INSTALLATION ).
Fig 16: Installing Instrument Panel Lower Assembly
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL INSTRUMENT PANEL SUB-ASSEMBLY UPPER
1. Install the instrument panel sub-assembly upper (see INSTALLATION ).

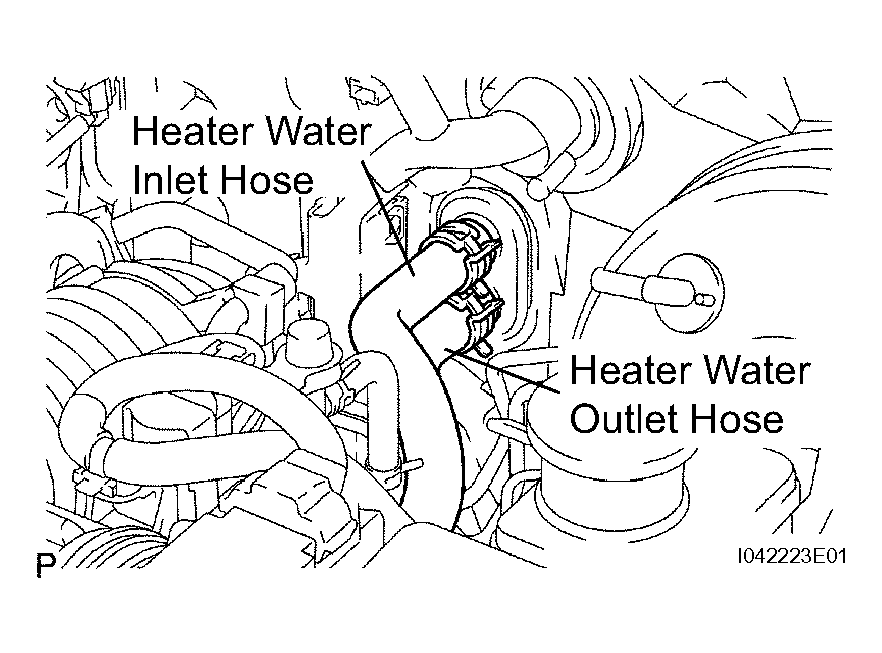

CONNECT HEATER WATER OUTLET HOSE
1. Connect the water hose and attach the clip.
CONNECT HEATER WATER INLET HOSE
HINT:

Use the same procedures described for the water hose.

Fig 17: Connecting Water Hose And Attaching Clip
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL COOLER REFRIGERANT LIQUID PIPE
1. Remove the attached vinyl tape from the pipe.
2. Sufficiently apply compressor oil to new 2 O-rings and the fitting surface of the cooler refrigerant liquid pipe A.
  Compressor oil: ND-OIL 8 or equivalent

  Fig 18: Identifying Correct View Of Cooler Refrigerant Suction Hose And Piping Clamp
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Install the 2 O-rings on the cooler refrigerant liquid pipe.
4. Install the cooler refrigerant liquid pipe and piping clamp.
  HINT:

  After the connection, check that the claw of the piping clamp is engaged.
INSTALL NO. 1 COOLER REFRIGERANT SUCTION HOSE
1. Remove the attached vinyl tape from the pipe.
2. Sufficiently apply compressor oil to new 2 O-rings and the fitting surface of the cooler refrigerant suction hose.
  Compressor oil: ND-OIL 8 or equivalent
3. Install the 2 O-rings on the cooler refrigerant suction hose.
4. Install the cooler refrigerant suction hose and the piping clamp.
  HINT:

  After the connection, check that the claw of the piping clamp is engaged.
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
PERFORM INITIALIZATION
1. Perform initialization (see INITIALIZATION ).
NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
CHECK SRS WARNING LIGHT
1. Check the SRS warning light (see DIAGNOSIS SYSTEM ).
ADD ENGINE COOLANT (See COOLANT )
CHARGE REFRIGERANT (See REPLACEMENT )
WARM UP ENGINE (See REPLACEMENT )
CHECK FOR ENGINE COOLANT LEAKS (See ON-VEHICLE INSPECTION )
CHECK FOR LEAKAGE OF REFRIGERANT (See REPLACEMENT )
