Blower Unit: Removal

WARNING: This page is about a different car, the 2006 Scion tC. However, it is still accessible from the selected car via links, so may be relevant.
  1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
    CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.
  2. REMOVE INSTRUMENT PANEL SUB-ASSEMBLY UPPER
    1. Remove the instrument panel sub-assembly upper (see REMOVAL ).
  3. REMOVE INSTRUMENT PANEL SUB-ASSEMBLY LOWER
    1. Remove the instrument panel sub-assembly lower (see REMOVAL ).
  4. REMOVE ECM (See  REMOVAL  )
  5. REMOVE AIR DUCT (See  REMOVAL   )
  6. REMOVE BLOWER ASSEMBLY
    1. Disconnect the 3 connectors.

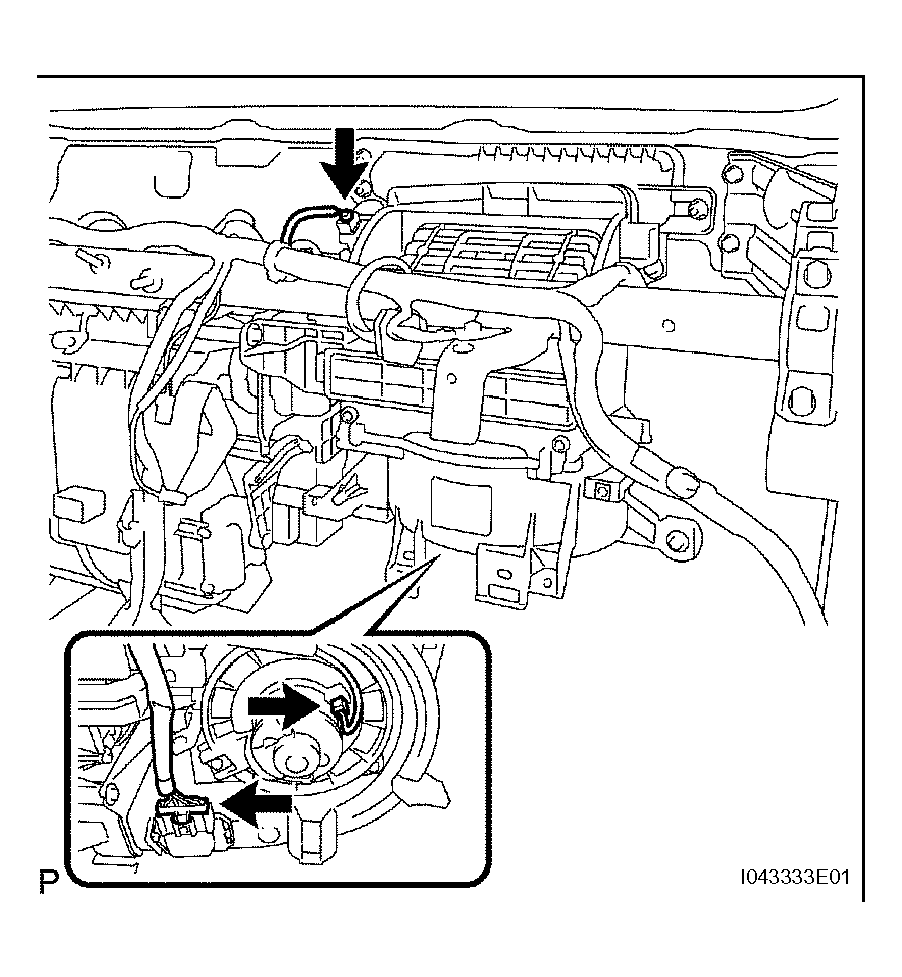

      Fig 1: Disconnecting Connectors
      G04223574Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 3 screws and bolt.

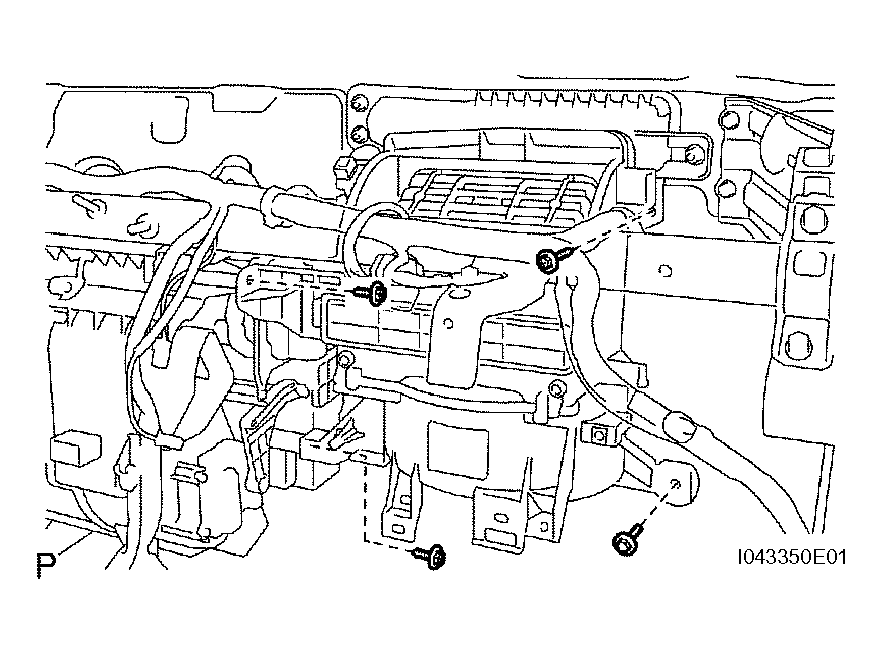

      Fig 2: Removing Screws And Bolt
      G04223575Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Detach the claw and remove the blower in the order shown in the illustration.

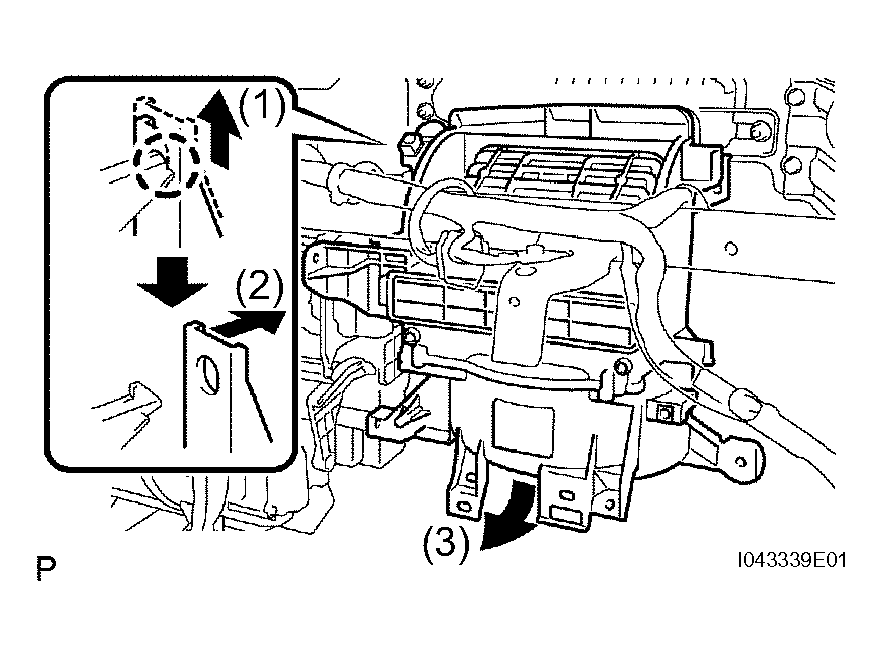

    Fig 3: Removing Blower And Detaching Claw
    G04223576Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
