Input/Output Signal of TCM
Input/Output Signal of TCM

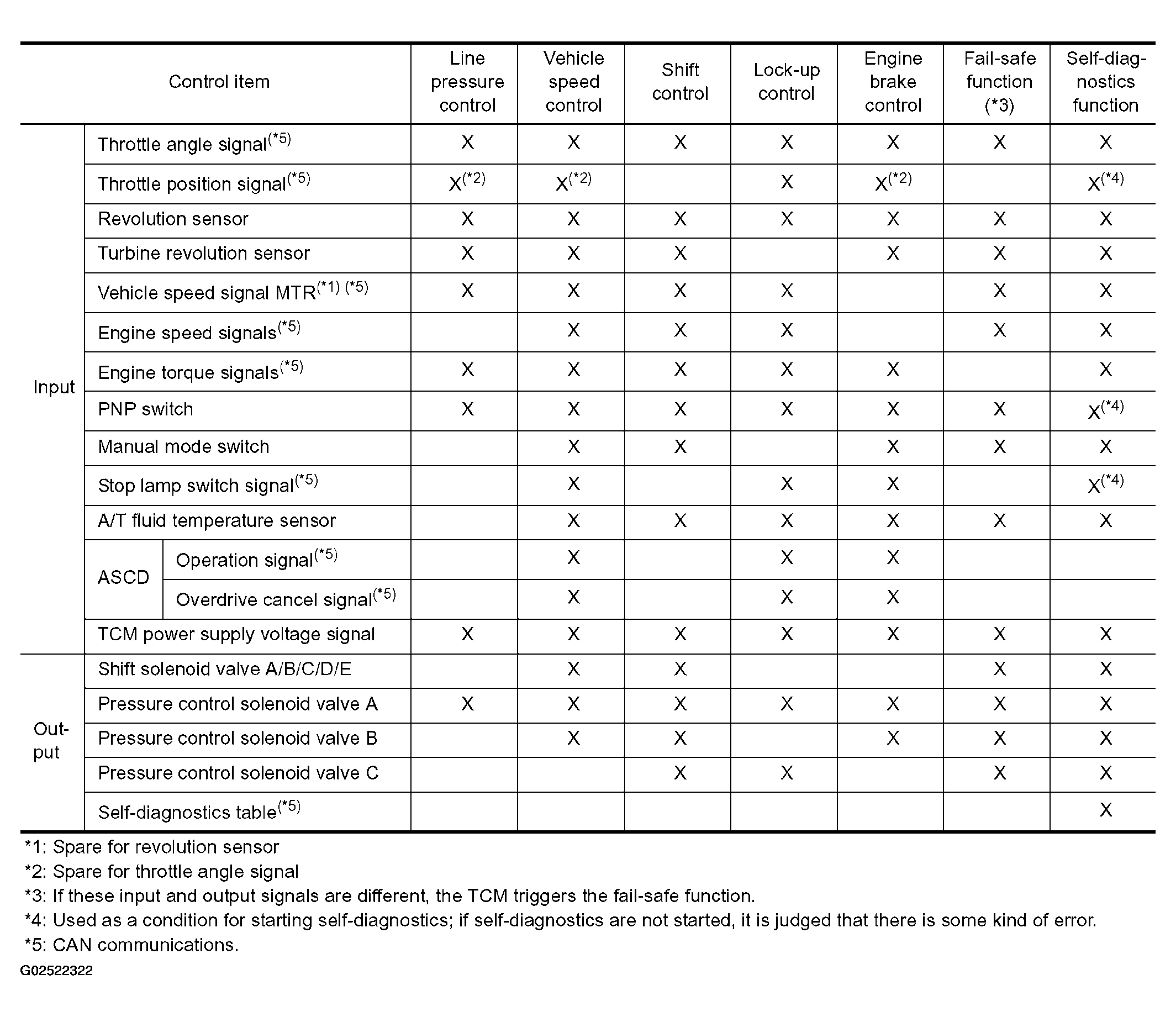

Fig 1: TCM Input And Output Signal Chart
Courtesy of NISSAN MOTOR CO., U.S.A.
