Control Valve Assembly: Removal

  1. Remove side cover. Refer to "SIDE COVER ".
  2. Disconnect solenoid valve connectors.
  3. Disconnect control valve assembly bolts and remove control valve assembly.

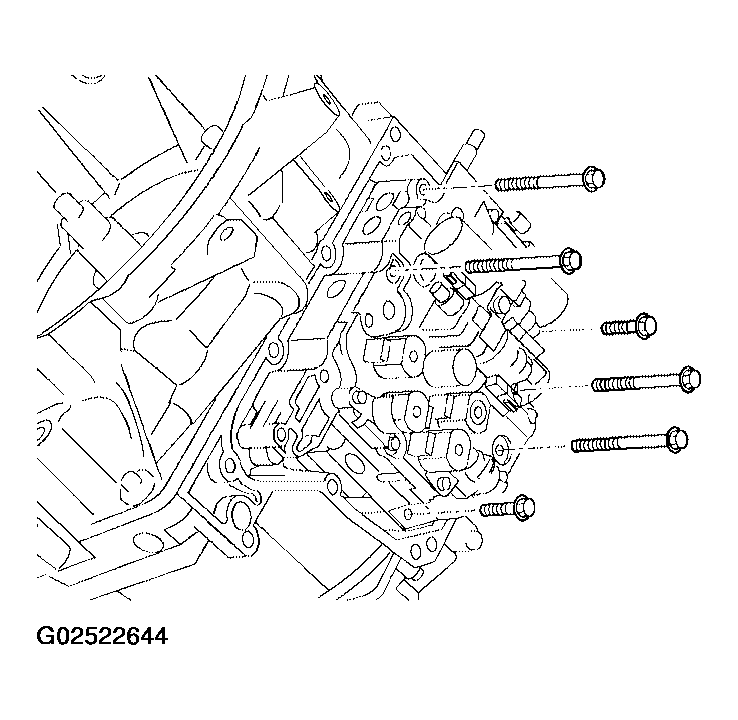

    Fig 1: Disconnecting Control Valve Assembly Bolts
    G02522644Courtesy of NISSAN MOTOR CO., U.S.A.
