Revolution Sensor Replacement

1. Remove intake air duct.
2. Disconnect electrical connector.
3. Remove revolution sensor from A/T.
4. Reinstall any part removed.

NOTE: Do not reuse seal bolt.

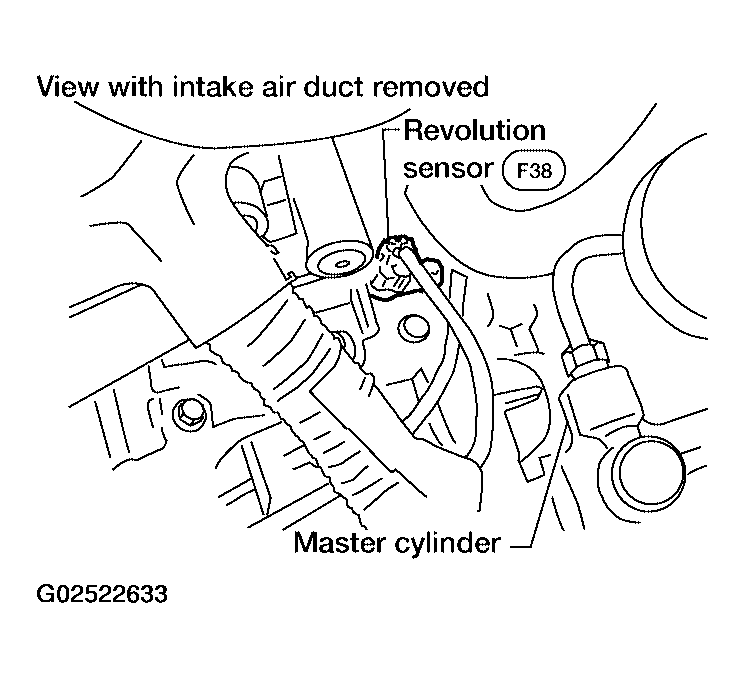

Fig 1: Identifying Location Of Revolution Sensor

Courtesy of NISSAN MOTOR CO., U.S.A.
