Automatic Transmission (Re5F22A): Overhaul: Components

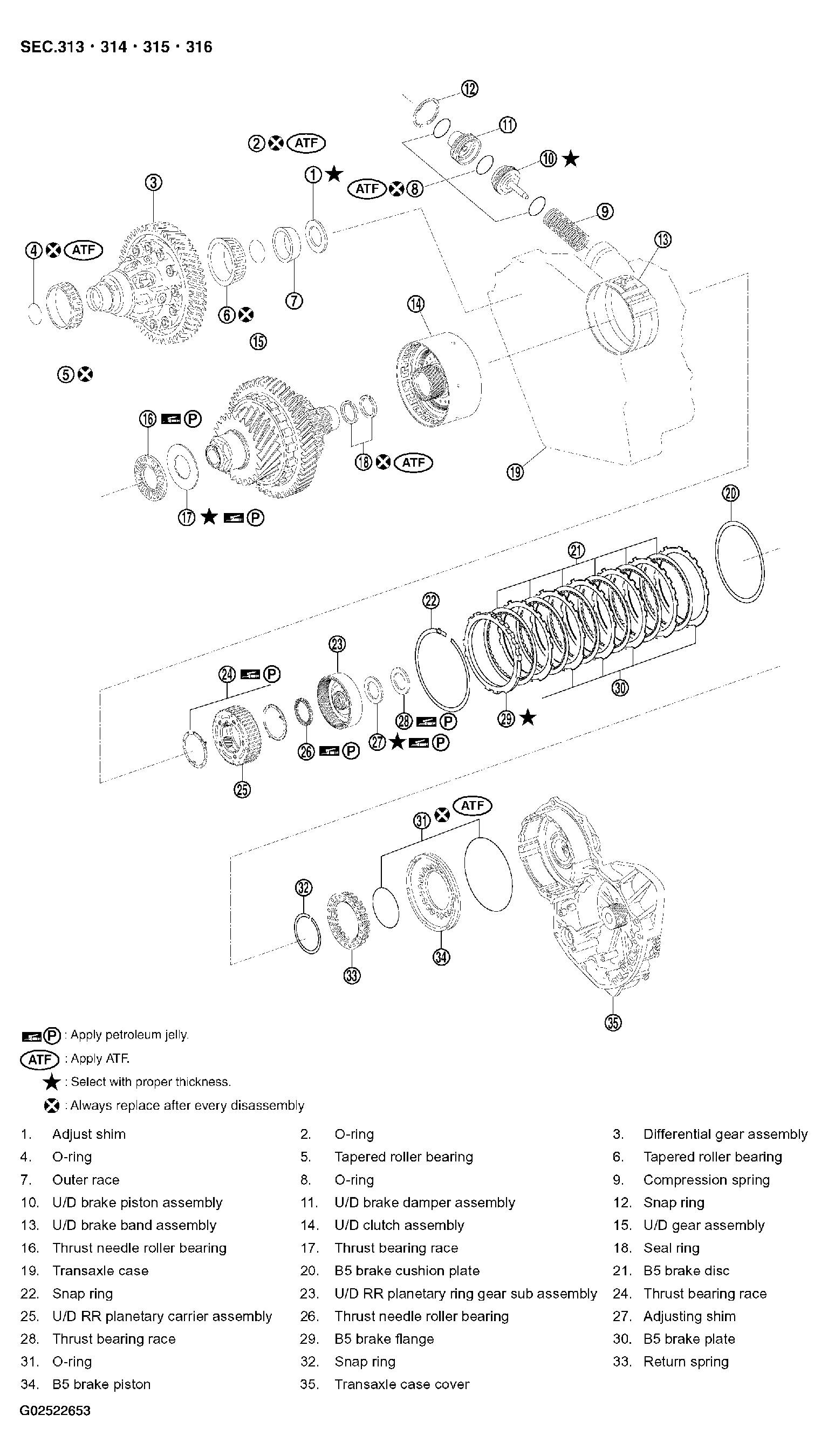

Fig 1: Identifying A/T Overhaul Components (1 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.

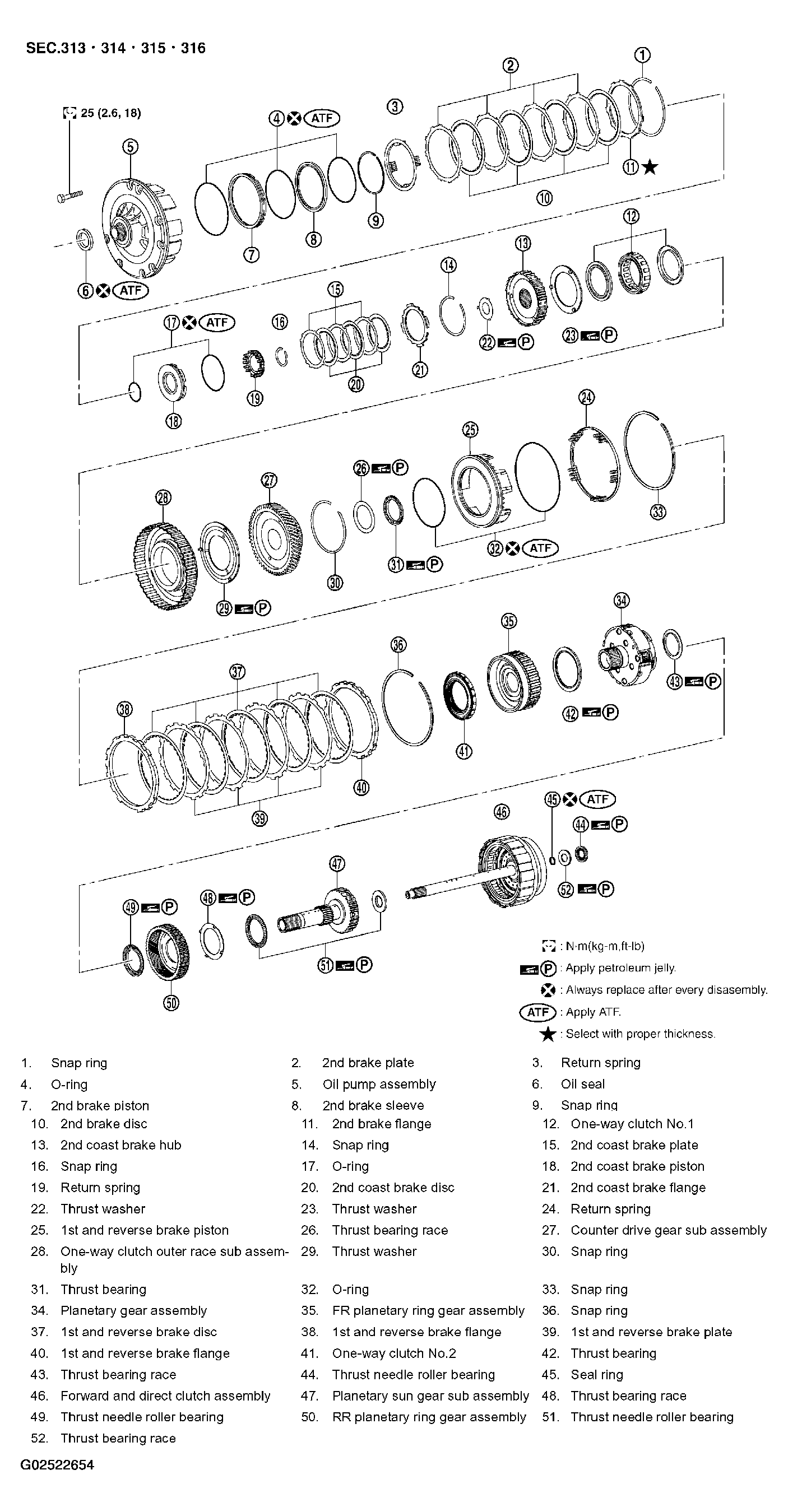

Fig 2: Identifying A/T Overhaul Components (2 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.

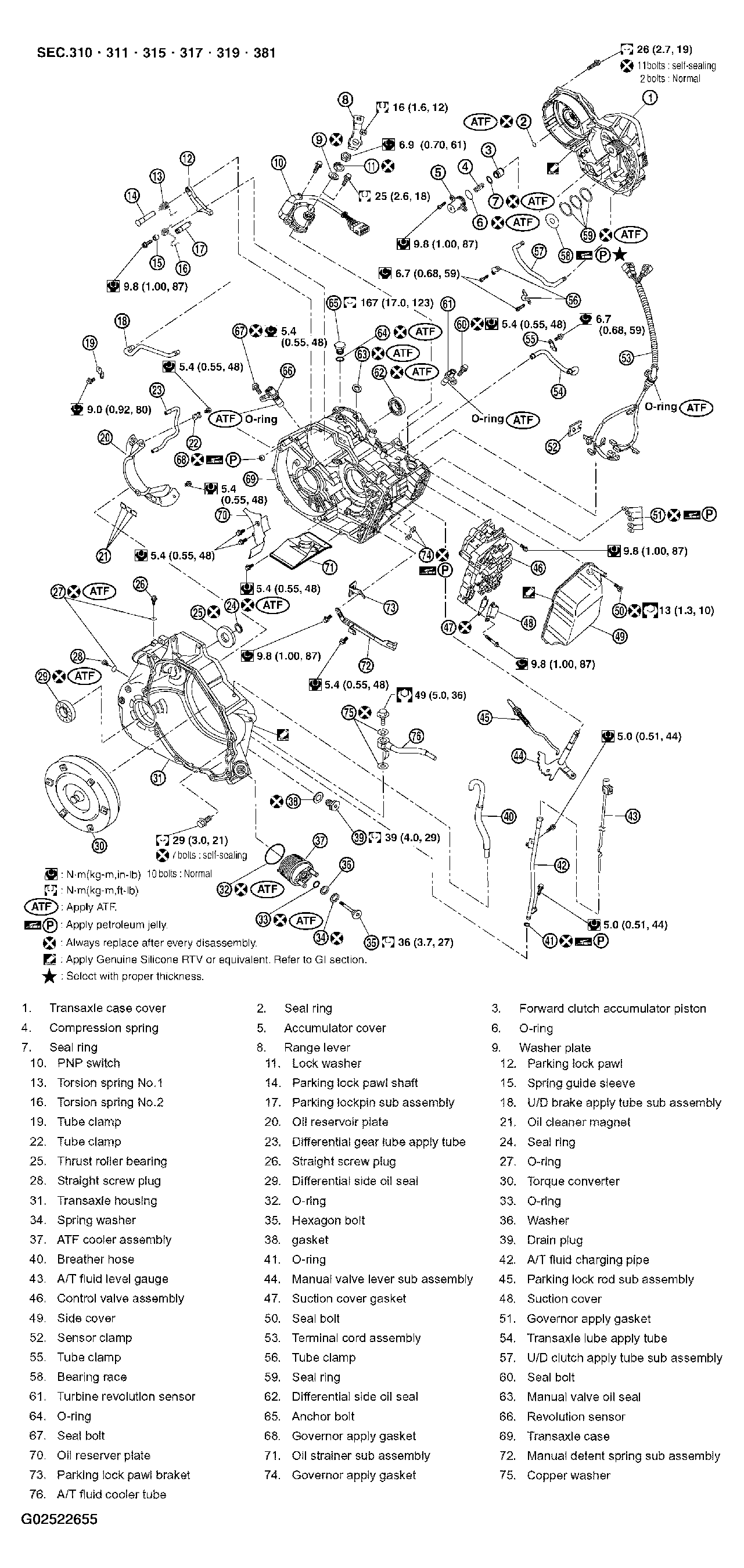

Fig 3: A/T Overhaul Replacement Components (3 Of 3) -- With Torque Specifications

Courtesy of NISSAN MOTOR CO., U.S.A.
