Nissan-Datsun
›
2005
›
Altima SE-R, Automatic
›
Repair and Diagnosis
›
Transmission
›
Automatic Transmission (Re5F22A)
›
Trouble Diagnosis
›
Work Flow Chart
›
Notes
Work Flow Chart: Notes

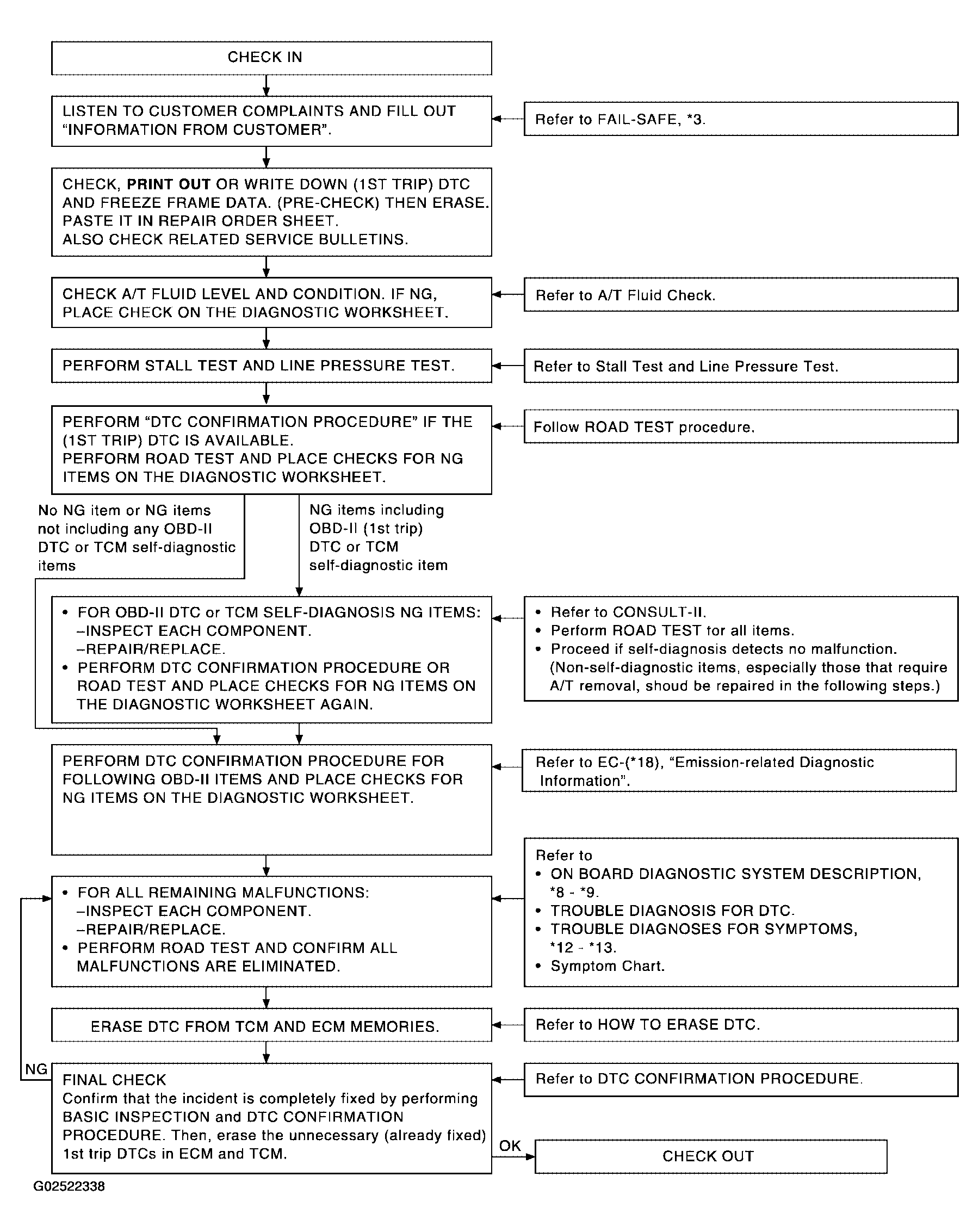

Fig 1: A/T Troubleshooting Work Flow Chart
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
