Removal And Installation: Removal

WARNING: This page is about a different car, the 2016 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.

Remove the shift selector finisher. Refer to EXPLODED VIEW .
Release the pawls on each side of NATS antenna amp (1) using suitable tool and remove from the shift selector finisher (2).

Fig 1: Locating Push-Button Ignition Switch Pawls
Courtesy of NISSAN NORTH AMERICA, INC.

: Pawl

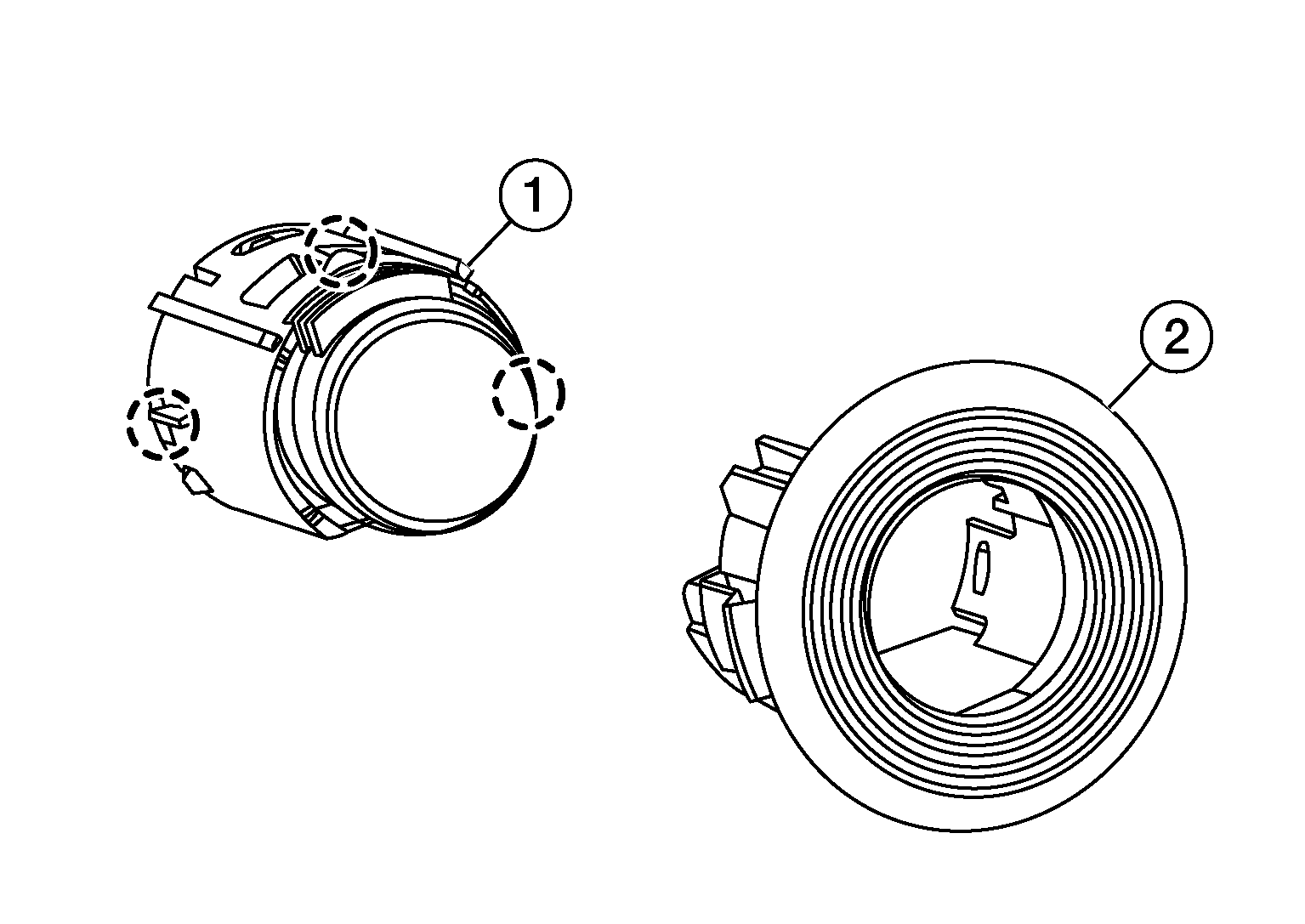

Release the pawl on each side using suitable tool and remove the push-button ignition switch (1) from the NATS antenna amp (2).

Fig 2: Locating NATS Antenna Amp Pawls
Courtesy of NISSAN NORTH AMERICA, INC.

: Pawl
