Removal and Installation: Installation

  1. Install generator using the following procedure:
    1. Temporarily tighten bolts in the reverse sequence shown, below.
    2. Torque bolts to specification in the sequence shown, below.

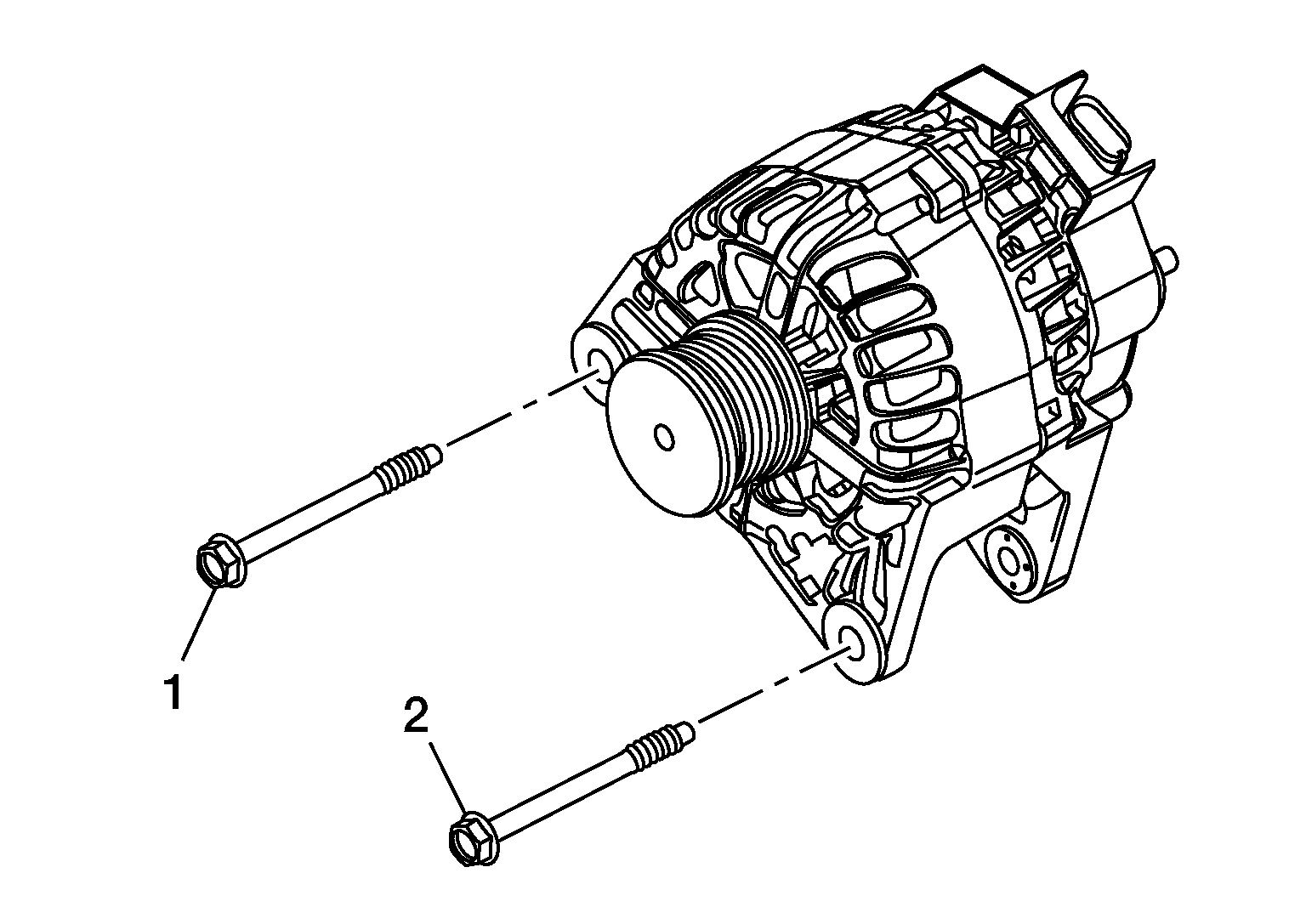

    Fig 1: Generator Bolt Tightening Sequence
    GNSAWMIA1907Z-907Courtesy of NISSAN NORTH AMERICA, INC.

    Bolts

    :25.0 N.m (2.6 kg-m, 18 ft-lb)
  2. Installation of remaining components is in the reverse order of removal.
    CAUTION:
    • Tighten "B" terminal nut carefully and to specification. Refer to Exploded View .
