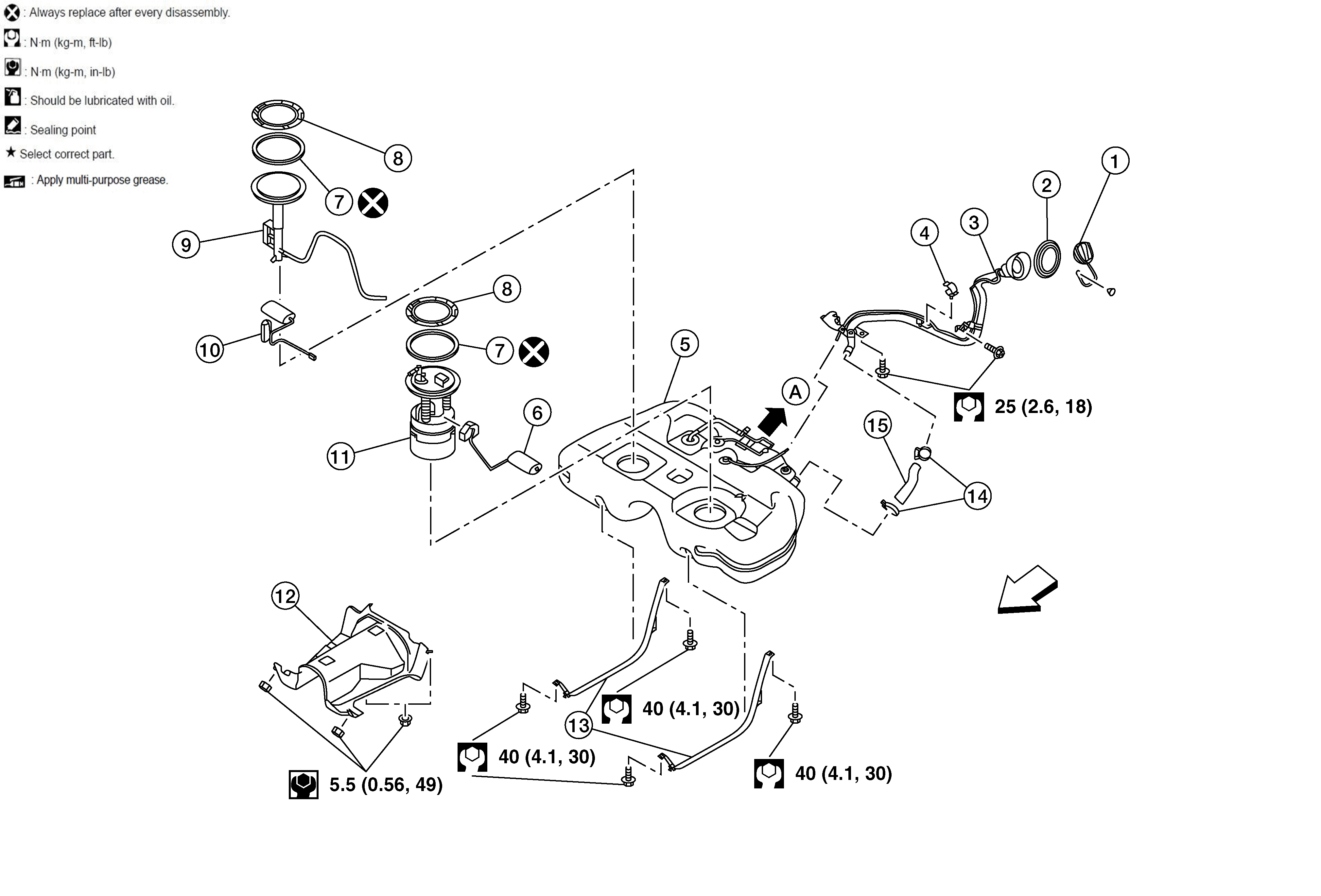

Exploded View
| 1. | Fuel filler cap | 2. | Grommet | 3. | Fuel filler tube |
| 4. | Clip | 5. | Fuel tank | 6. | Fuel level sensor |
| 7. | O-ring | 8. | Lock ring | 9. | Sub fuel level assembly |
| 10. | Sub fuel level sensor | 11. | Fuel level sensor unit, fuel filter and fuel pump assembly | 12. | Fuel tank protector |
| 13. | Fuel tank strap | 14. | Clamp | 15. | Fuel filler hose |
| A. | To EVAP canister. Refer to Exploded View . | Front | |||
