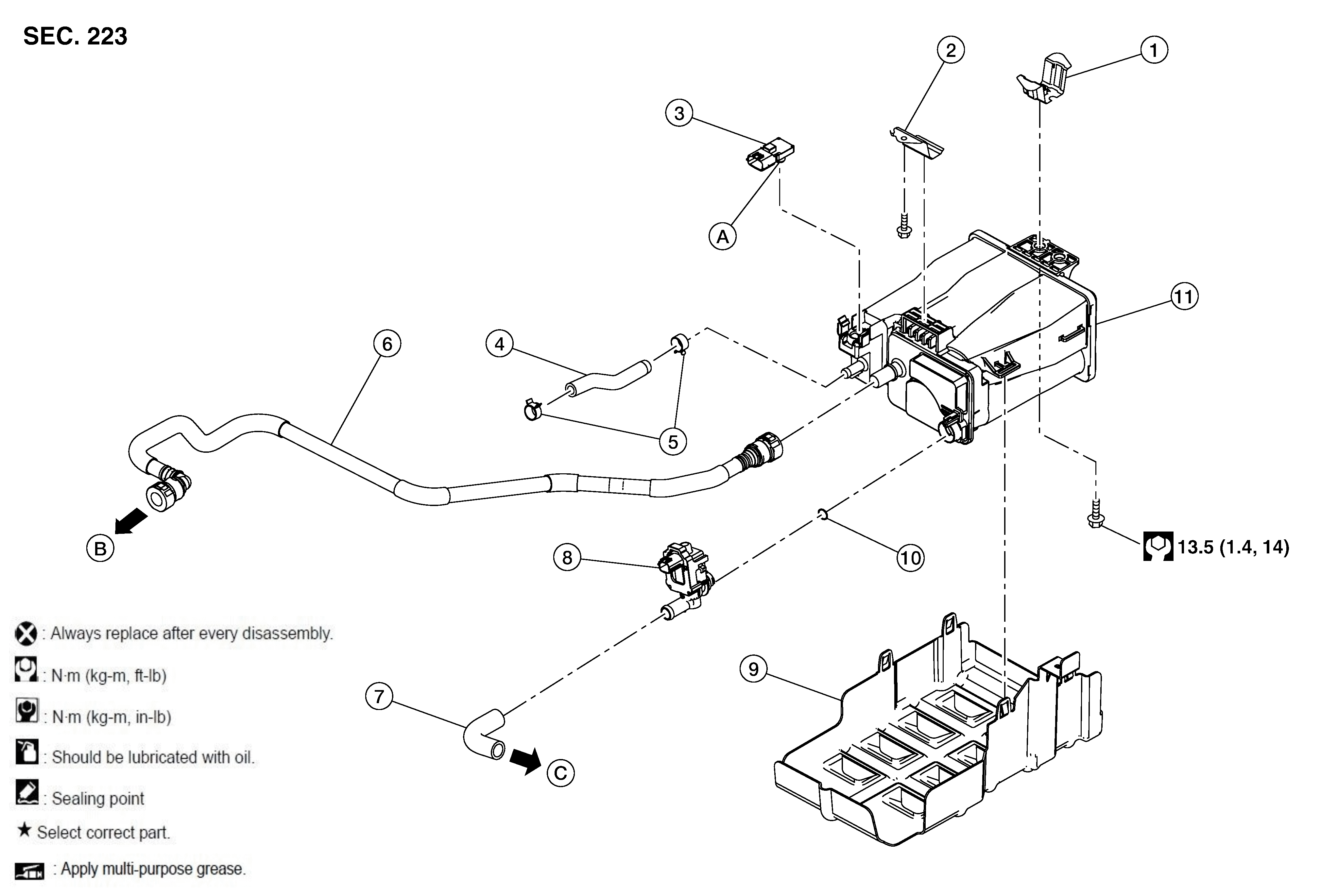

Exploded View
| 1. | EVAP canister rear bracket | 2. | EVAP canister front bracket | 3. | EVAP control system pressure sensor (with O-ring) |
| 4. | EVAP canister purge hose | 5. | Clamp | 6. | EVAP vent line |
| 7. | EVAP canister vent control hose | 8. | EVAP canister vent control valve (with O-ring) | 9. | EVAP canister cover |
| 10. | O-ring | 11. | EVAP canister | A. | O-ring |
| B. | To fuel tank. Refer to Exploded View . | C. | To EVAP canister vent control valve hose connector. Refer to Exploded View . | Pawl |
