System Description

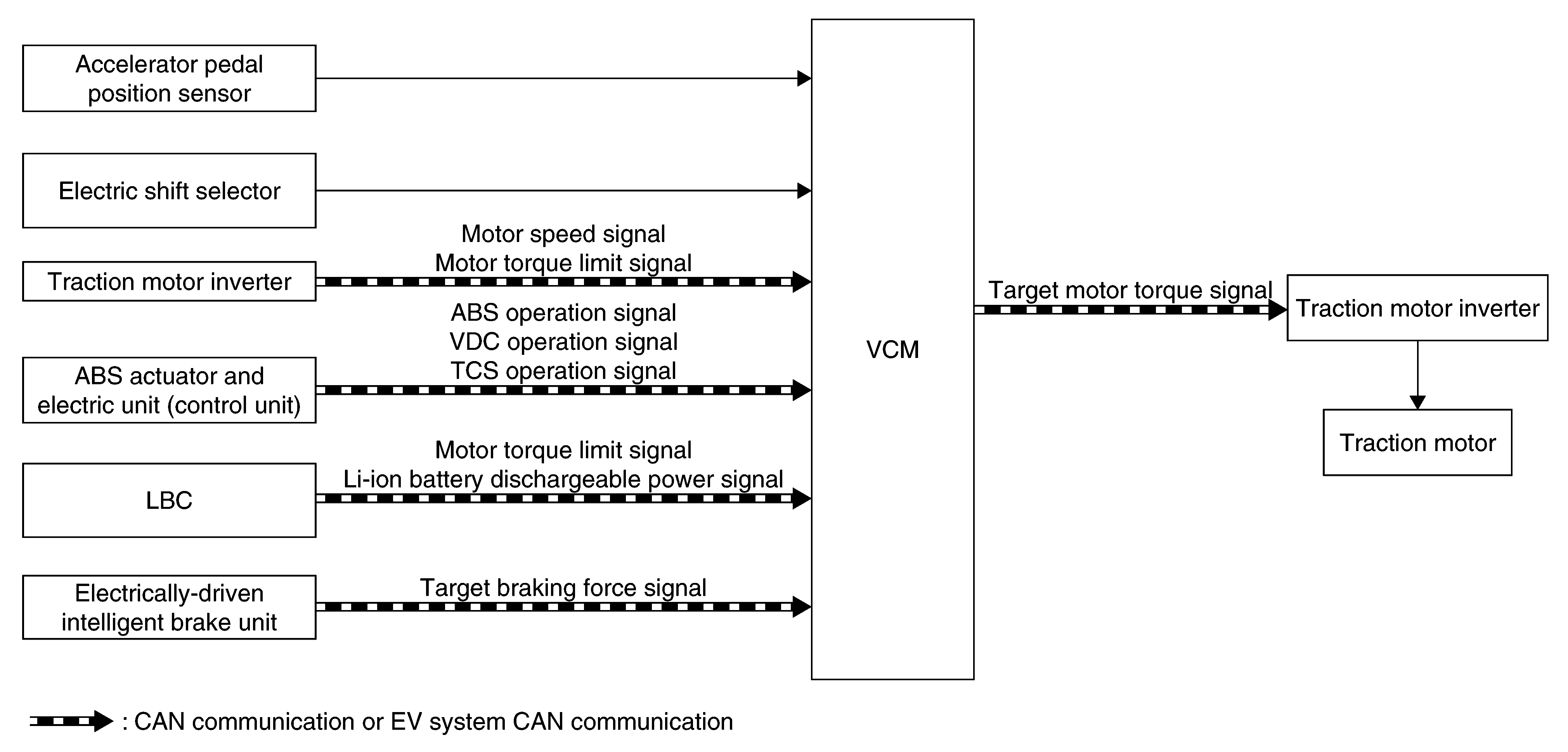

SYSTEM DIAGRAM
DESCRIPTION
The EV system generates traction force by converting the direct current from the Li-ion battery to an alternating current by the traction motor inverter and operating the traction motor with the alternating current. VCM calculates target traction force, based on an accelerator pedal position, vehicle speed, and shift position. After this, VCM adds creep force to the calculated target traction force. Subsequently, VCM adds torque limitations to the calculated driving force, based on torque down signals received from each system, to decide a motor torque request signal. This motor torque request signal is transmitted to the traction motor inverter via EV system CAN communication. For the operation principle of the motor. Refer to System Description .
OUTPUT LIMIT AND OUTPUT STOP REQUEST LIST
| Request ECU | Output limit cause | Power limitation indicator lamp | Condition | |
|---|---|---|---|---|
| Traction Motor Inverter | Traction motor temperature high | ON | When the traction motor or traction motor inverter reaches an abnormally high temperature | |
| Input power low | ON | When the high voltage power input to the traction motor inverter is 240 V or less | ||
| DTC detected | OFF | Fail-safe (60 kWh LI-ION BATTERY) or Fail-safe (40 kWh LI-ION BATTERY) | ||
| Li-ion battery controller | Li-ion battery remained energy low | ON | When the Li-ion battery cell voltage is low | |
| Li-ion battery temperature high | ON | When the Li-ion battery reaches an abnormally high temperature. (Li-ion battery temperature gauge is near the red zone.) | ||
| Li-ion battery temperature low | ON | When the Li-ion battery reaches an abnormally low temperature. (Li-ion battery temperature gauge is near the blue zone.) | ||
| DTC detected | OFF | Fail-safe (60 kWh LI-ION BATTERY) or Fail-safe (40 kWh LI-ION BATTERY) | ||
| VCM | Acceleration/brake signal plausibility error | OFF | When the accelerator pedal position sensor signal and stop lamp switch signal are input at the same time | |
| Power train system protection function | OFF | - | ||
| DTC detected | OFF | Refer to Fail-safe . | ||
