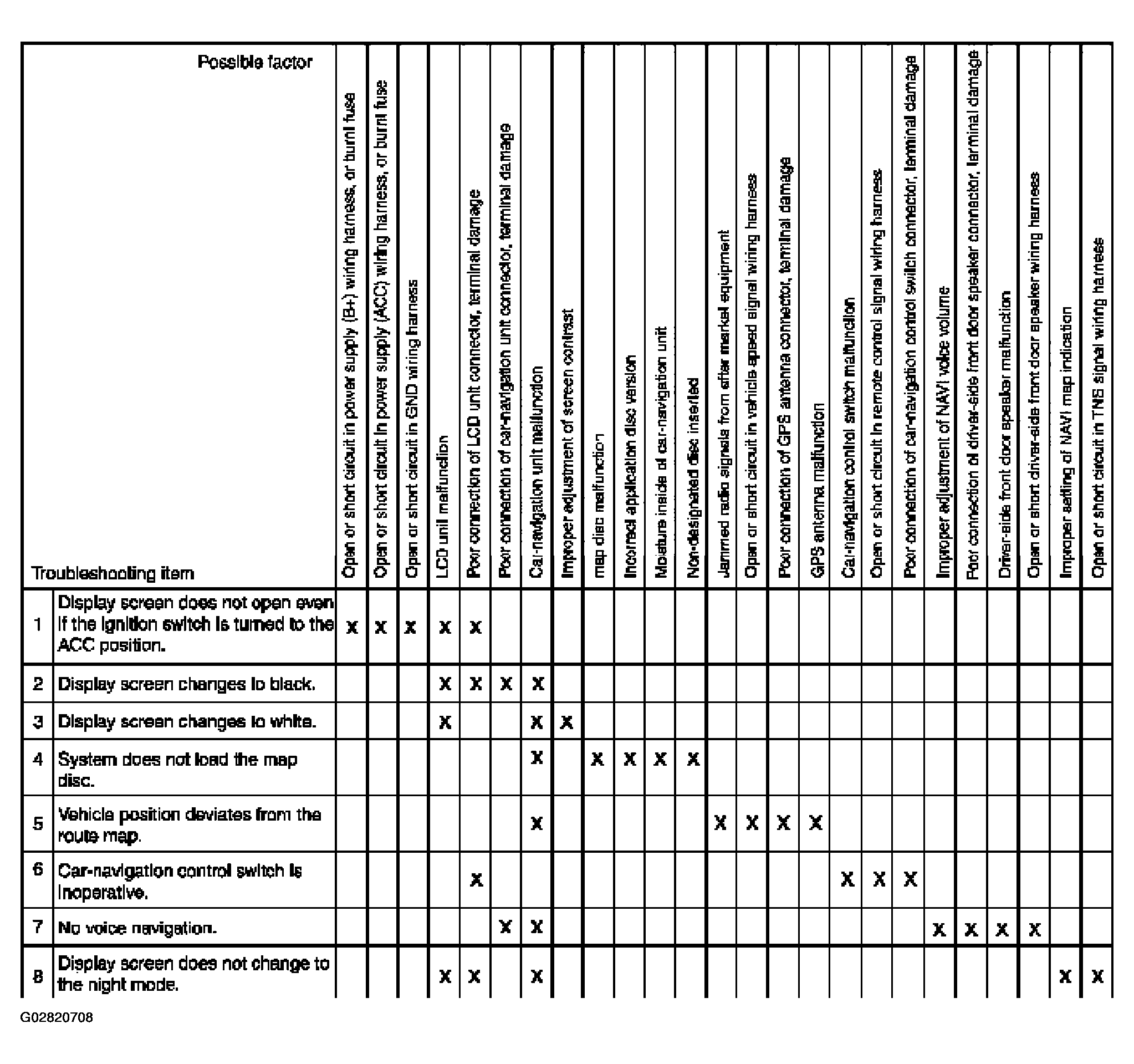

Quick Diagnostic Chart
WARNING: This page is about a different car, the 2004 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
TROUBLESHOOTING CODES
| TROUBLESHOOTING CODES | DESCRIPTION |
|---|---|
| NO. 1 | DISPLAY SCREEN DOES NOT OPEN EVEN IF THE IGNITION SWITCH IS TURNED TO THE ACC POSITION |
| NO. 2 | DISPLAY SCREEN CHANGES TO BLACK |
| NO. 3 | DISPLAY SCREEN CHANGES TO WHITE |
| NO. 4 | SYSTEM DOES NOT LOAD THE MAP DISC |
| NO. 5 | VEHICLE POSITION DEVIATES FROM THE ROUTE MAP |
| NO. 6 | CAR-NAVIGATION CONTROL SWITCH IS INOPERATIVE |
| NO. 7 | NO VOICE NAVIGATION |
| NO. 8 | DISPLAY SCREEN DOES NOT CHANGE TO THE NIGHT MODE (FRONT AND REAR COMBINATION LIGHTS OPERATE NORMALLY) |
