Front Floor Console Extension Panel Replacement

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

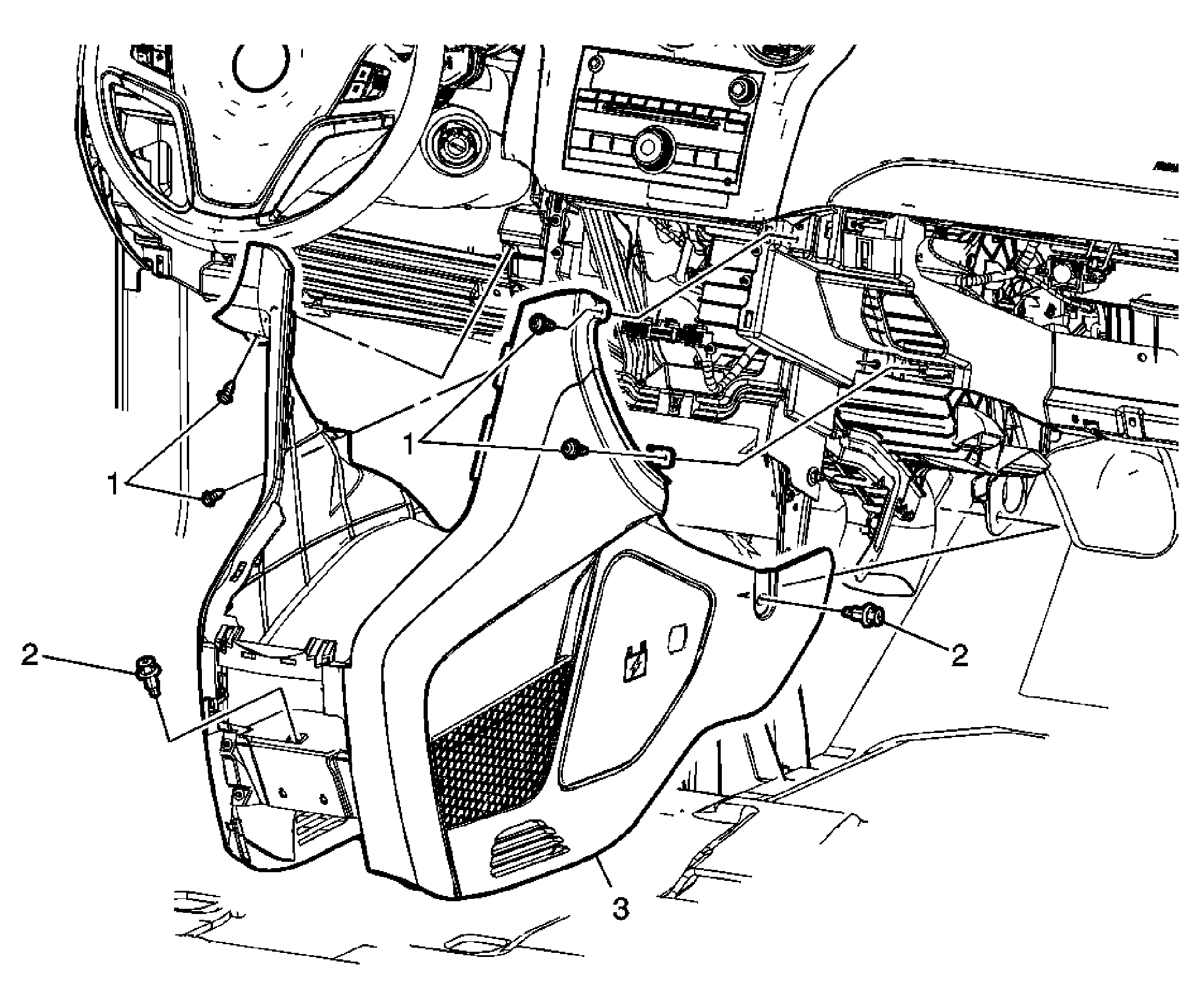

Fig 1: Front Floor Console Extension Panel

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Remove the knee bolster assembly. Refer to Driver Knee Bolster Replacement . Remove the instrument panel compartment assembly. Refer to Instrument Panel Compartment Replacement . Remove the front floor console. Refer to Front Floor Console Replacement . Remove the front floor console accessory trim plate. Refer to Front Floor Console Accessory Trim Plate Replacement .
1	Front Floor Console Extension Panel Screw (Qty: 4) CAUTION: Refer to Fastener Caution . Tighten: 2 N.m (18 lb in)
2	Front Floor Console Extension Panel Push Pin Retainer (Qty: 3)
3	Front Floor Console Extension Panel Assembly
