Input Speed Sensor Installation

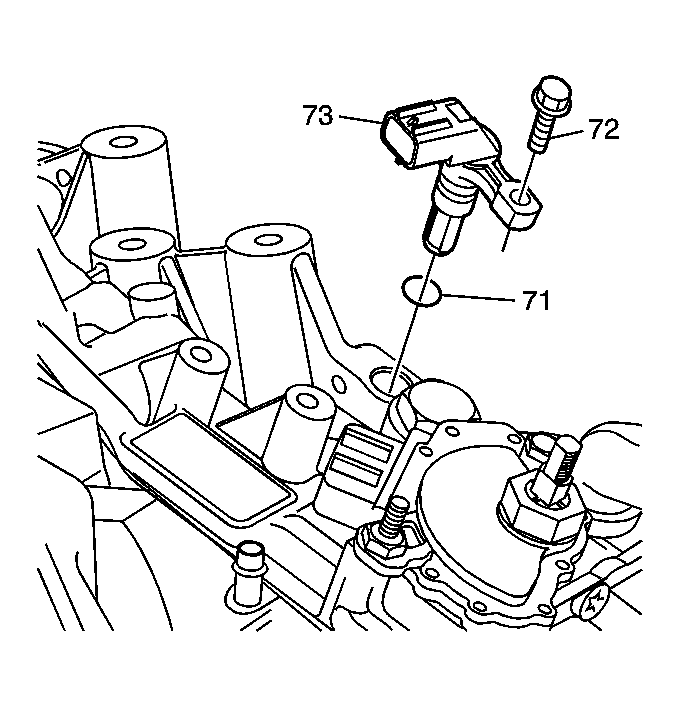

Fig 1: View Of Input Shaft Speed Sensor

Courtesy of GENERAL MOTORS CORP.

Apply automatic transmission fluid to the new input speed sensor O-ring seal (71).
Install the new input speed sensor O-ring seal (71) onto the input speed sensor (73).
Install the input speed sensor (73) into the transmission case assembly (17).

NOTE: Refer to FASTENER NOTICE in Cautions and Notices.

Install the M6 x 1.0 x 16 mm input speed sensor bolt (72).
Tighten: Tighten the input speed sensor bolt (72) to 5 N.m (44 lb in).
