Output Speed Sensor Installation

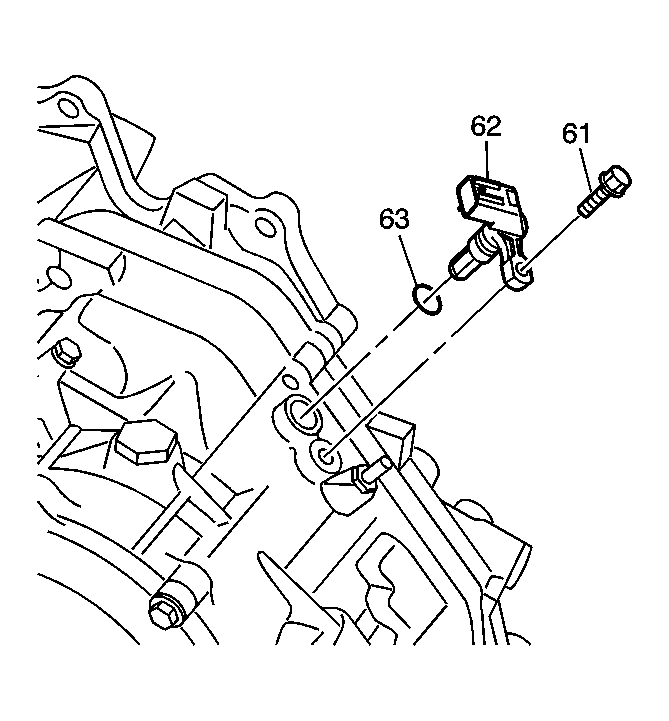

Fig 1: Output Shaft Speed Sensor

Courtesy of GENERAL MOTORS CORP.

Apply automatic transmission fluid to the new output speed sensor O-ring seal (63).
Install the new output speed sensor O-ring seal (63) onto the output speed sensor (62).
Install the output speed sensor (62) into the transmission case assembly (17).

NOTE: Refer to FASTENER NOTICE in Cautions and Notices.

Install the M6 x 1.0 x 16 mm output speed sensor bolt (61).
Tighten: Tighten the output speed sensor bolt to 5 N.m (44 lb in).
