Installing The Level Control Module

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

First place the smaller plug on the control module and slide in the latch -a- .

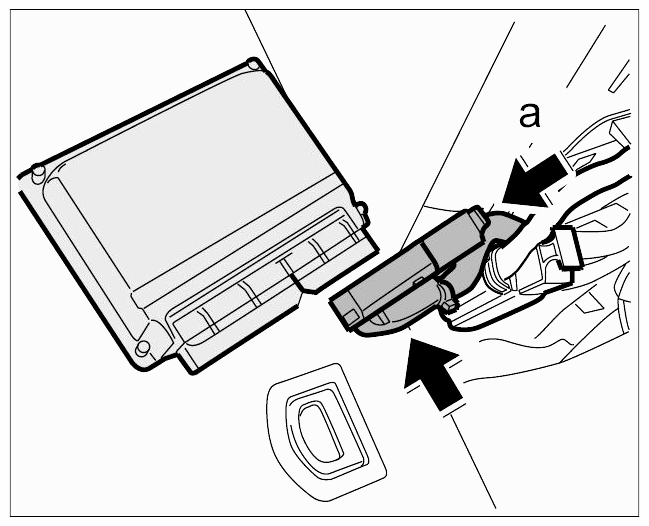

Fig 1: Pushing Plug On Bottom Of Level Control Module
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Position the control module in the installation position and insert the second plug on the control module and lock it -a-

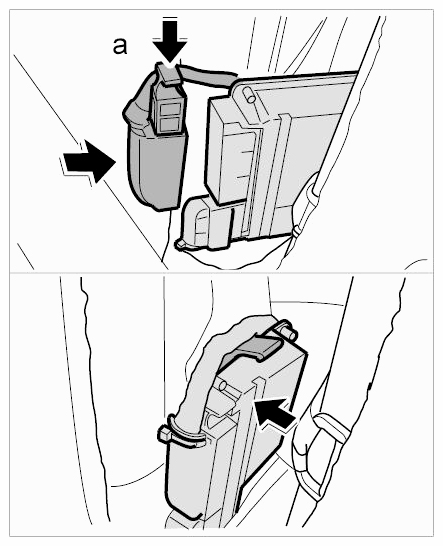

Fig 2: Pushing Plug On Top Of Level Control Module
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Code level control module. → Coding Level Control Module
Calibrate the level control module → Calibrating The Level Control Module
Insert the control module into the holder and position with the clip.
Store the emergency kit and warning triangle and place on the cover of the right rear side section trim.
