General data

WARNING: This page is about a different variant/trim than selected.

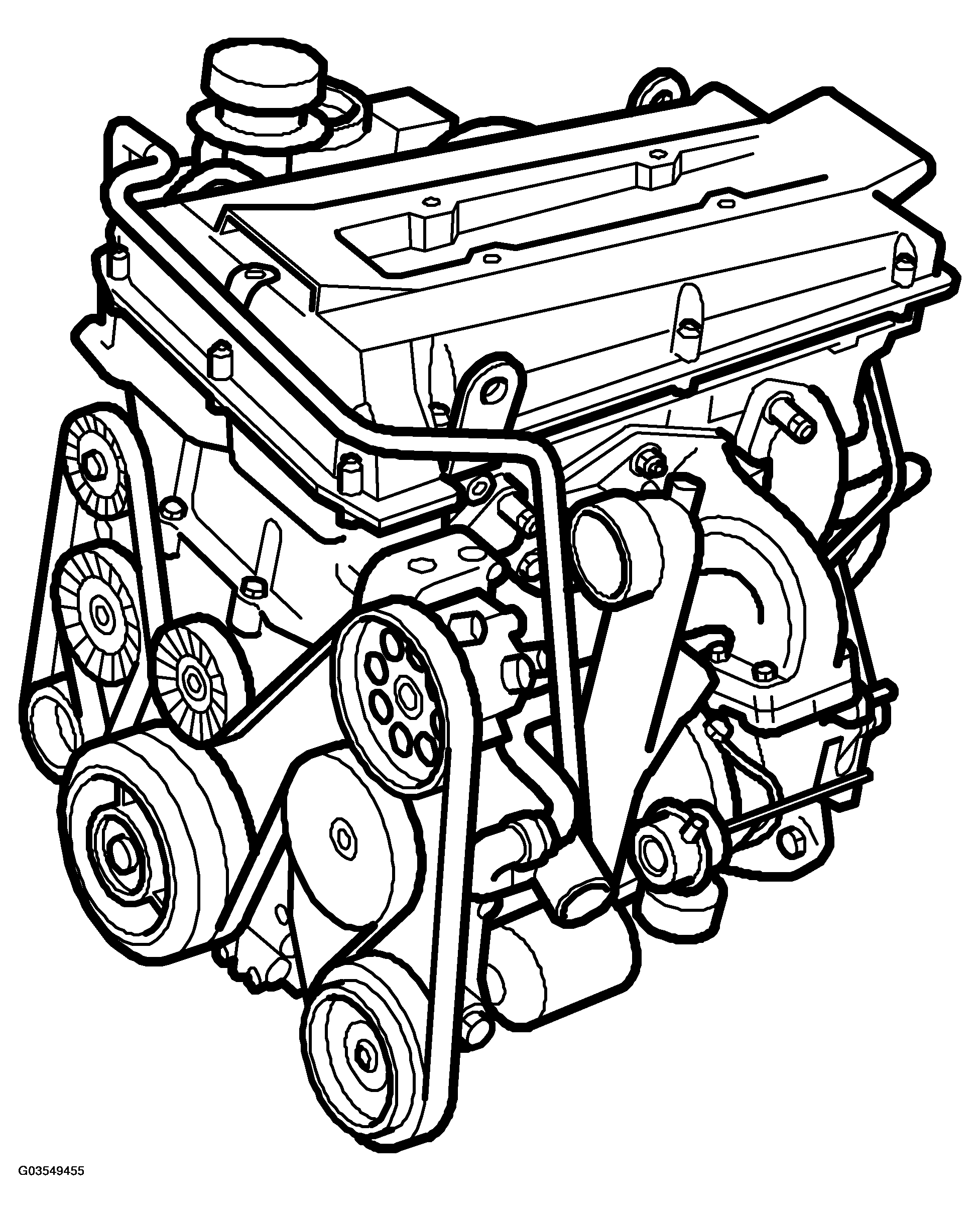

Fig 1: View Of Basic Engine (4-Cylinder Petrol)

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Basic Engine General Data (4-Cylinder Petrol)

		B205E	B235E/R
Engine type		4-cyl, 4-stroke engine with 4 valves per cylinder, 2 overhead camshafts and 2 balancer shafts.
Cylinder bore	mm	90	90
Stroke	mm	78	90
Swept volume	cm³	1985	2290
Firing order		1-3-4-2	1-3-4-2
Compression ratio		8.8:1	9.3:1
Weight	kg (lb)	140 (305) / 156 (340)	150 (330)
