Valve gear: Notes
WARNING: This page is about a different variant/trim than selected.
Courtesy of SAAB-SCANIA OF AMERICA, INC.
- Exhaust valve
- Inlet valve

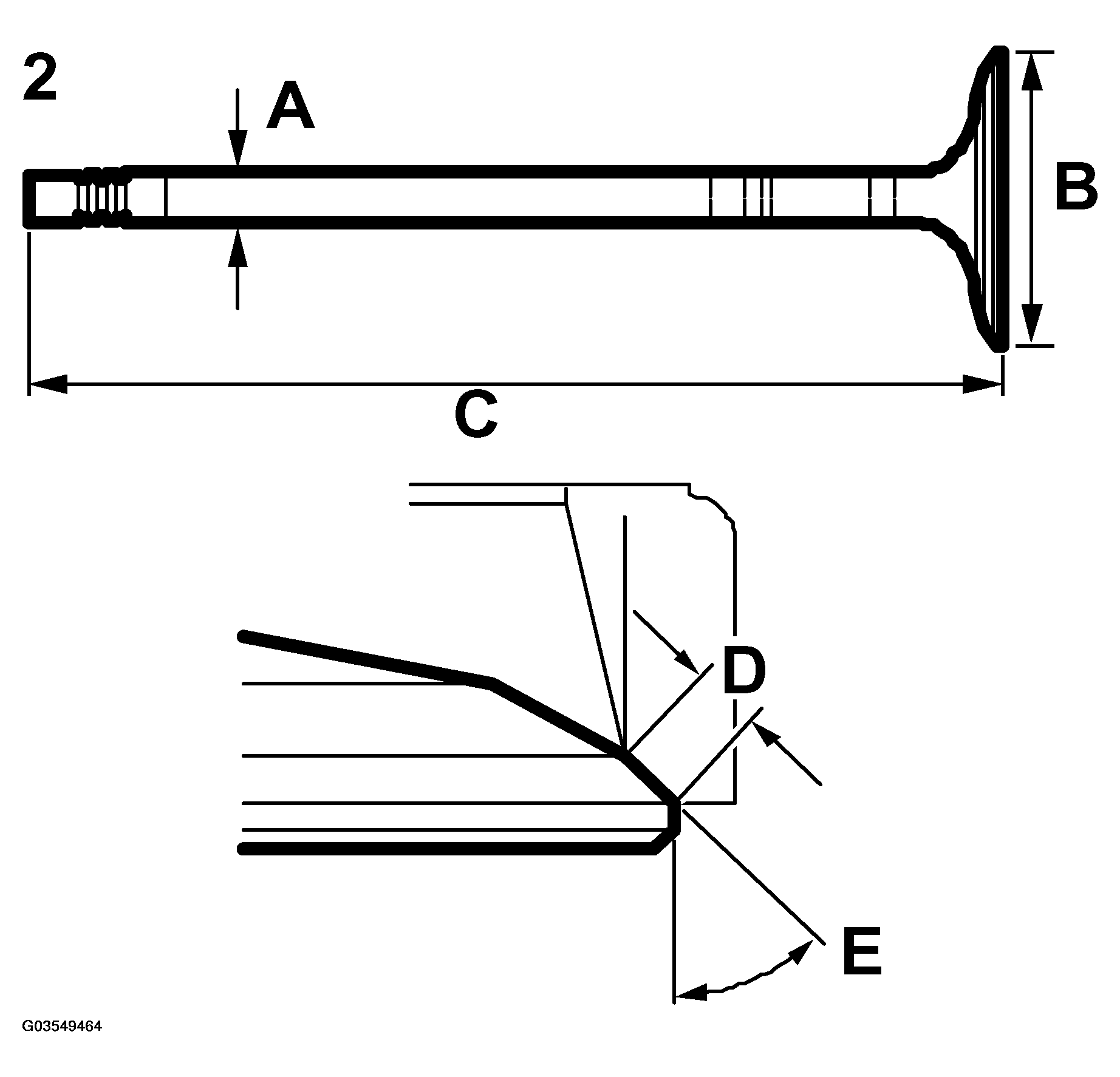

INLET AND EXHAUST VALVE TECHNICAL SPECIFICATION
| |
|
Exhaust valve |
Inlet valve |
A
A Nimonic |
mm
mm |
4.9575 +/-0.0075
4.9725 +/-0.0075 |
4.9775 +/- 0.0075 |
| B |
mm |
29 +/- 0.1 |
33 +/- 0.1 |
| C |
mm |
107.84 |
107.3 |
| D |
mm |
1.5 - 2.0 |
1.0 - 1.5 |
| E |
° |
44.5 +/-0.167 |
45.25 +/- 0.25 |
