Alternator Replacement (LHU/A20NFT)

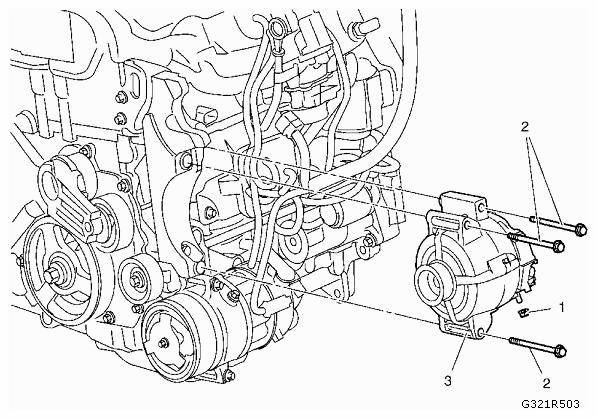

Fig 1: Identifying Alternator And Wiring Harness Fastener

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Callout	Component Name
Preliminary Procedure  Disconnect the battery negative cable. Refer to BATTERY NEGATIVE CABLE DISCONNECTION AND CONNECTION . Remove the drive belt. Refer to DRIVE BELT REPLACEMENT . Remove the power steering pump. Refer to POWER STEERING PUMP REPLACEMENT (L4) or POWER STEERING PUMP REPLACEMENT (V6) .
1	Alternator Wiring Harness Fastener Refer to FASTENER CAUTION . Procedure  Disconnect the electrical connector. Tighten  12.5 Nm (9 lb ft)
2	Alternator Fastener (Qty: 3) Tighten  22 Nm (16 lb ft)
3	Alternator
