Battery Tray Support Replacement

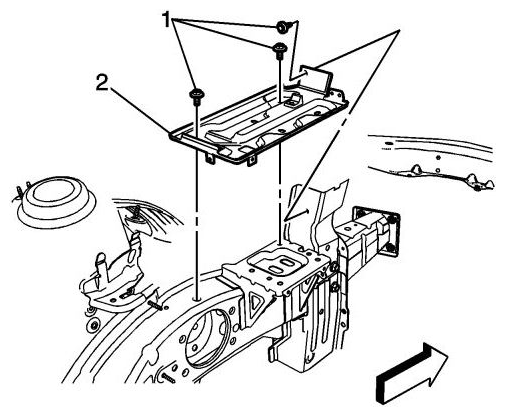

Fig 1: Removing Battery Tray Support

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Callout	Component Name
Preliminary Procedures  Remove the battery tray. Refer to BATTERY TRAY REPLACEMENT .
1	Battery Tray Bolts (Qty: 3) Refer to CAUTION: RETAINER . Tighten  9 N m (80 lb in)
2	Battery Tray
