Ignition Switch (Service Information): Replacement

HINT: The installation procedures are the removal procedures in reverse order.

1. REMOVE HORN BUTTON ASSY (See  REPLACEMENT  )
2. REMOVE STEERING WHEEL ASSY (See  REPLACEMENT  )
3. REMOVE STEERING COLUMN COVER (See  REPLACEMENT  )
4. REMOVE IGNITION OR STARTER SWITCH ASSY
   1. Disconnect the ignition switch and unlock warning switch connectors.
   2. Remove the clamp.
   3. Remove the 2 screws and ignition switch.

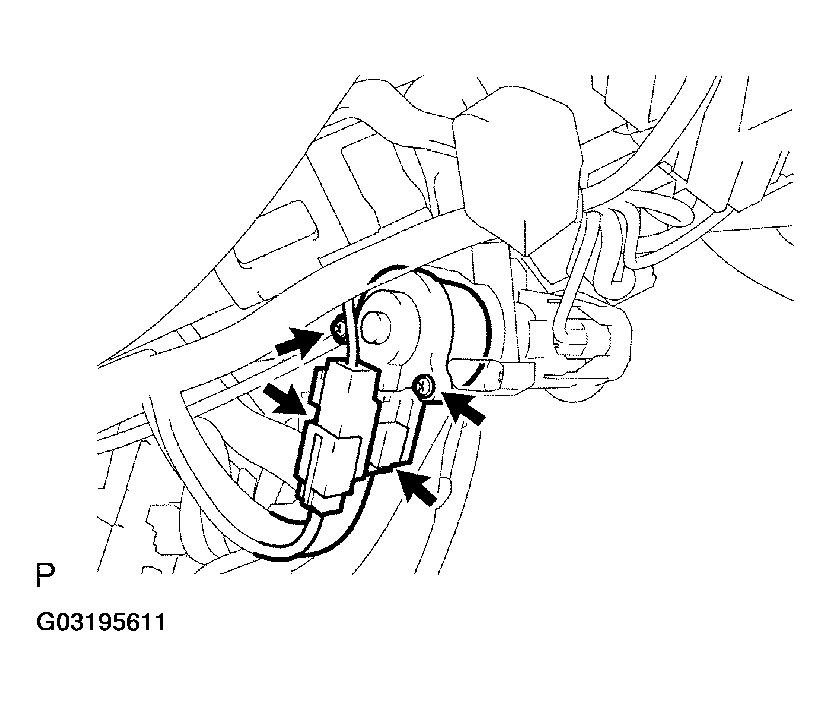

      Fig 1: Disconnecting Ignition Switch & Unlocking Warning Switch Connectors

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
