Instrument Panel ASSY Lower: Replacement

HINT:

• See COMPONENTS  .
• Installation is in the reverse order of removal.

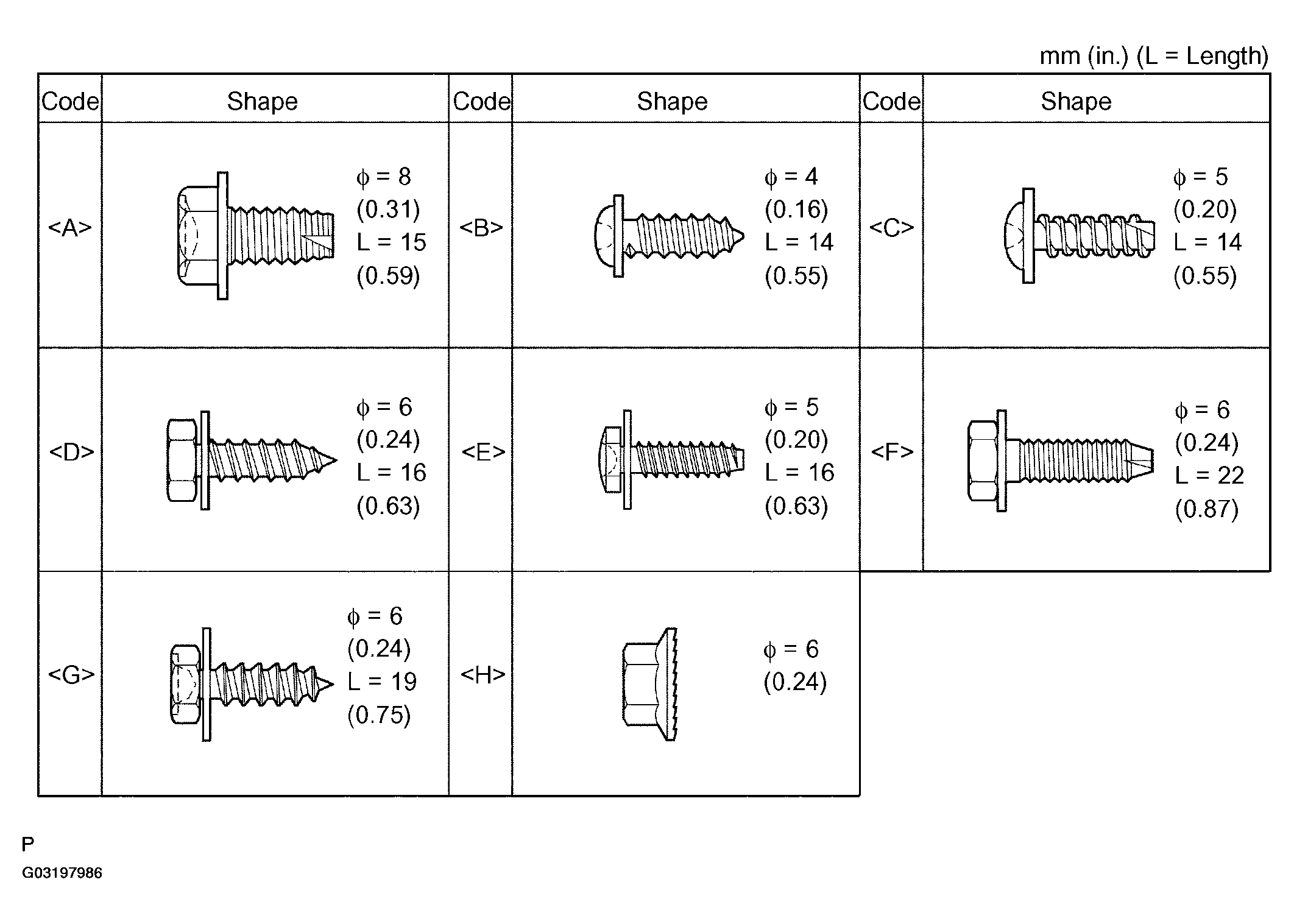

1. TABLE OF BOLT, SCREW AND NUT

   HINT:

   The bolts, screws and nuts necessary for installation and removal of the instrument panel, are illustrated below and coded alphabetically.

   Fig 1: Bolt, Screw & Nut Specification Table

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. DISCONNECT BATTERY NEGATIVE TERMINAL (SEE  SUPPLEMENTAL RESTRAINT SYSTEM  )
3. REMOVE INSTRUMENT PANEL SUB-ASSY W/PASSENGER AIRBAG ASSY (SEE  REPLACEMENT   )
4. REMOVE HORN BUTTON ASSY (SEE  REPLACEMENT  )
5. REMOVE STEERING WHEEL ASSY (SEE  OVERHAUL  )

   SST 09950-50013 (09951-05010, 09952-05010, 09953-05020, 09954-05021)

6. REMOVE STEERING COLUMN COVER (SEE  OVERHAUL  )
7. REMOVE HEADLAMP DIMMER SWITCH ASSY (SEE  REPLACEMENT  )
8. REMOVE WINDSHIELD WIPER SWITCH ASSY (SEE  REPLACEMENT  )
9. REMOVE FRONT DOOR SCUFF PLATE LH
   1. Disengage the 7 claws, and remove the front door scuff plate LH.

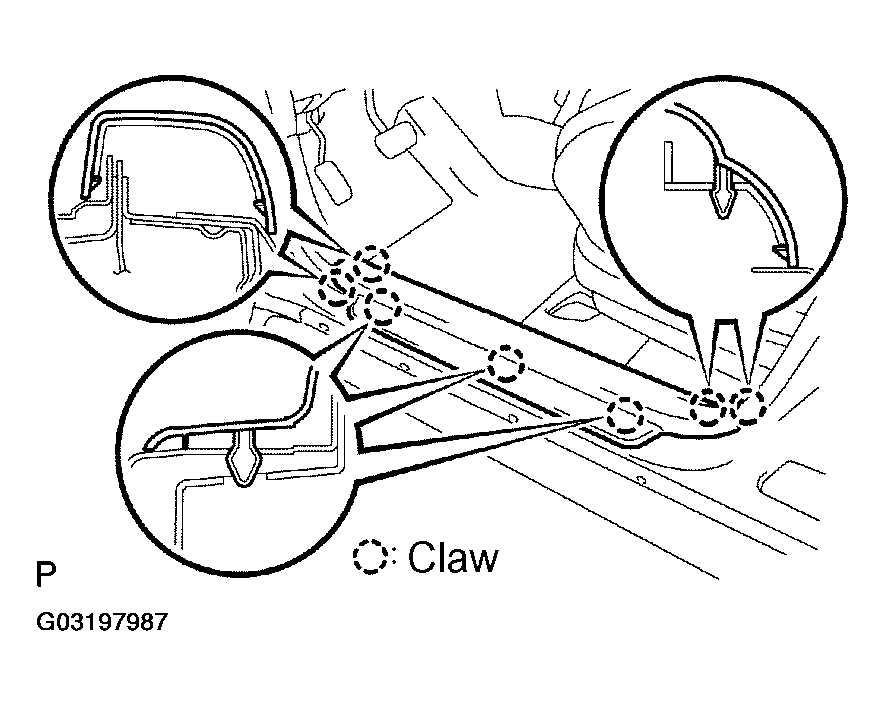

      Fig 2: Removing Front Door Scuff Plate (LH) By Disengage 7 Claws

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
10. REMOVE FRONT DOOR SCUFF PLATE RH

    HINT:

    Use the same procedures for the RH side and LH side.

11. REMOVE COWL SIDE TRIM BOARD LH

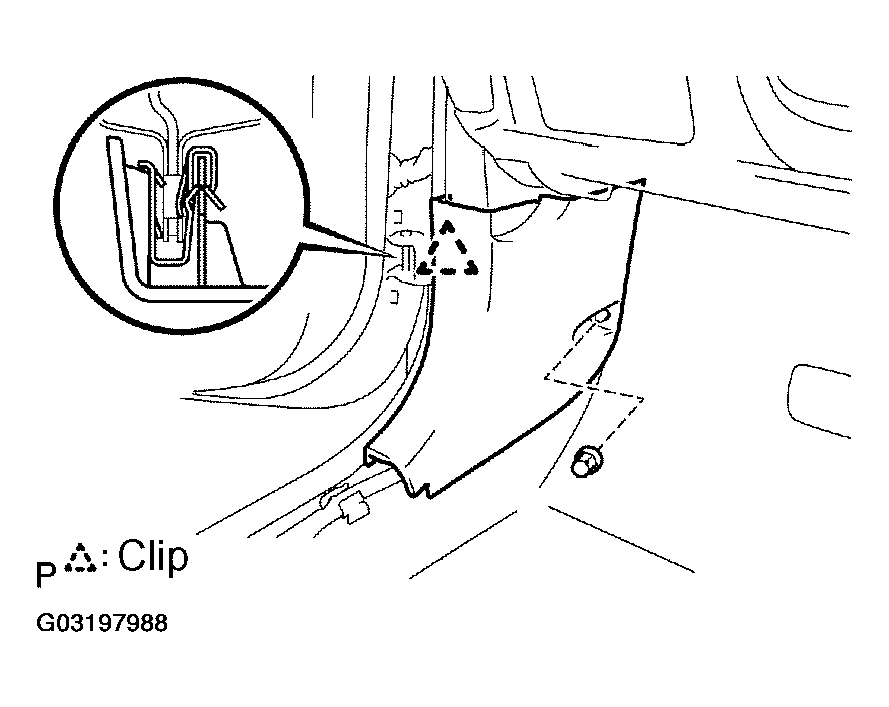

    1. Remove the cowl side trim clip.
    2. Disengage the clip and remove the cowl side trim board LH.
       Fig 3: Removing Cowl Side Trim Board (LH)

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
12. REMOVE COWL SIDE TRIM BOARD RH

    HINT:

    Use the same procedures for the RH side and LH side.

13. REMOVE HEATER CONTROL & ACCESSORY ASSY (SEE  HEATER OR BOOST VENTILATOR CONTROL ASSY  )
14. REMOVE INSTRUMENT CLUSTER FINISH PANEL ASSY CENTER

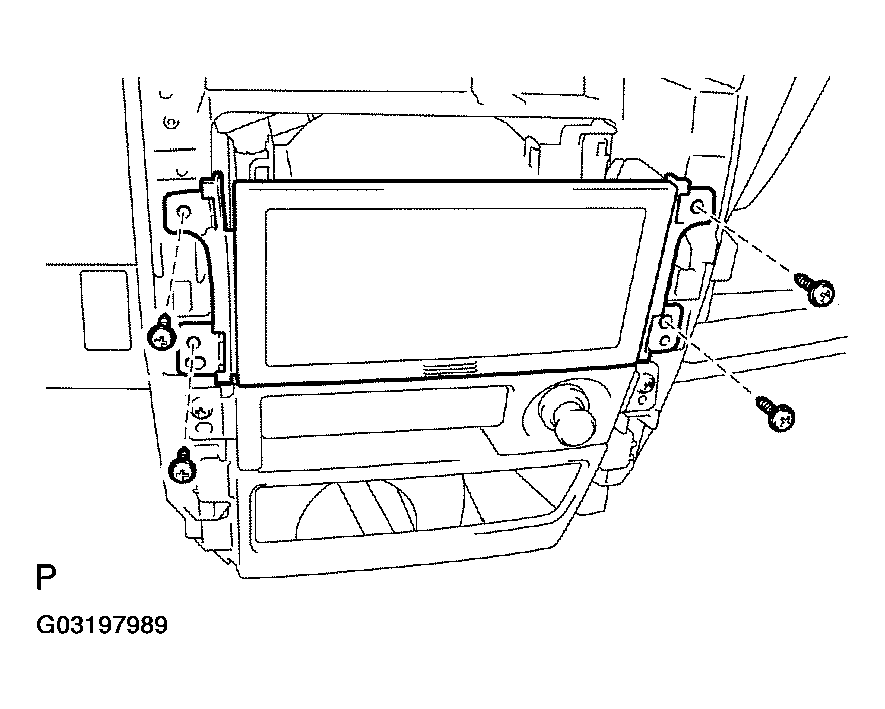

    1. Remove the 4 screws < C > and the instrument cluster finish panel assy center.
    2. Disconnect the connectors.
       Fig 4: Removing Screws & Instrument Cluster Finish Panel Assy Center

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
15. REMOVE FRONT ASH RECEPTACLE ASSY

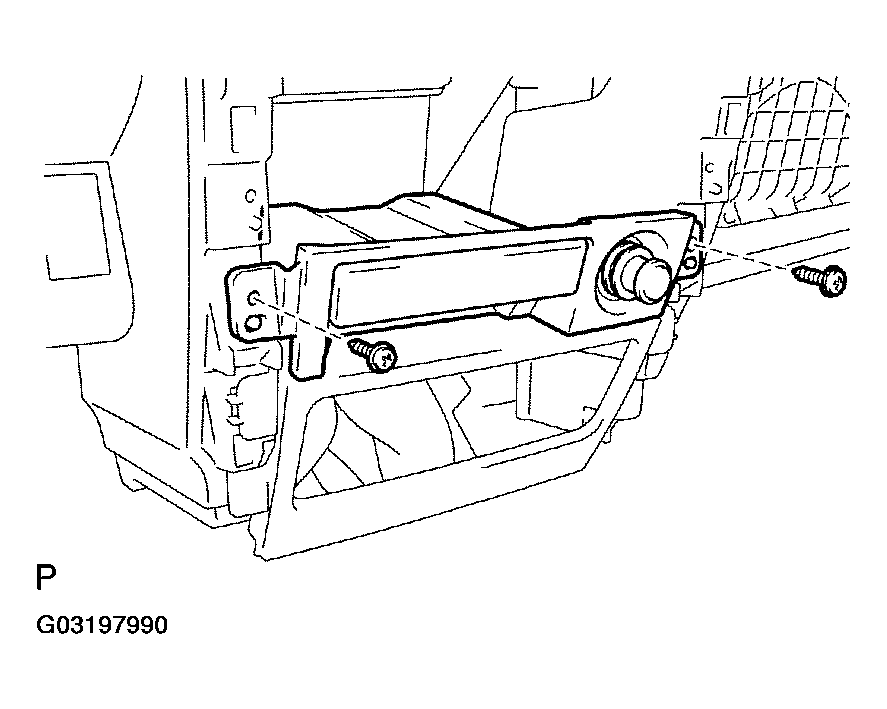

    1. Remove the 2 screws < C > and the front ash receptacle assy.
    2. Disconnect the connectors.
       Fig 5: Removing Screws & Front ASH Receptacle Assembly

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
16. REMOVE INSTRUMENT COVER LOWER CENTER
    1. Disengage the 5 claws, and remove the instrument cover lower center.

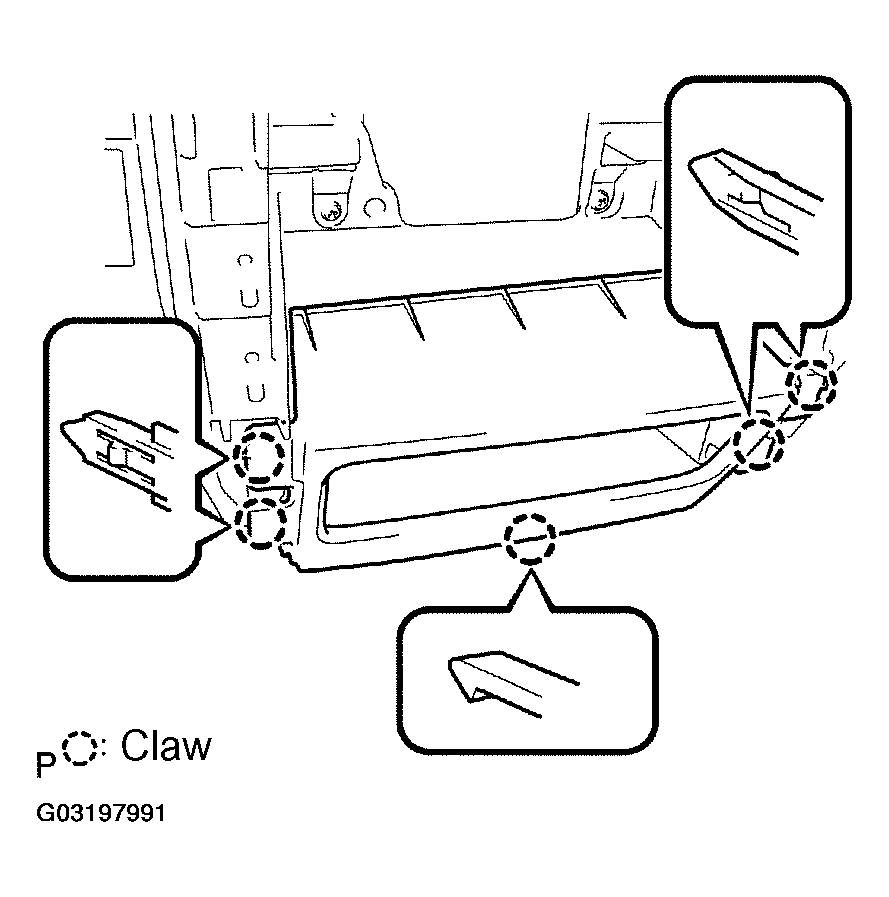

       Fig 6: Removing Instrument Cover Lower Center By Disengage Claws

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
17. REMOVE INSTRUMENT PANEL FINISH PANEL LOWER CENTER
    1. Using a clip remover, remove the 2 clips.

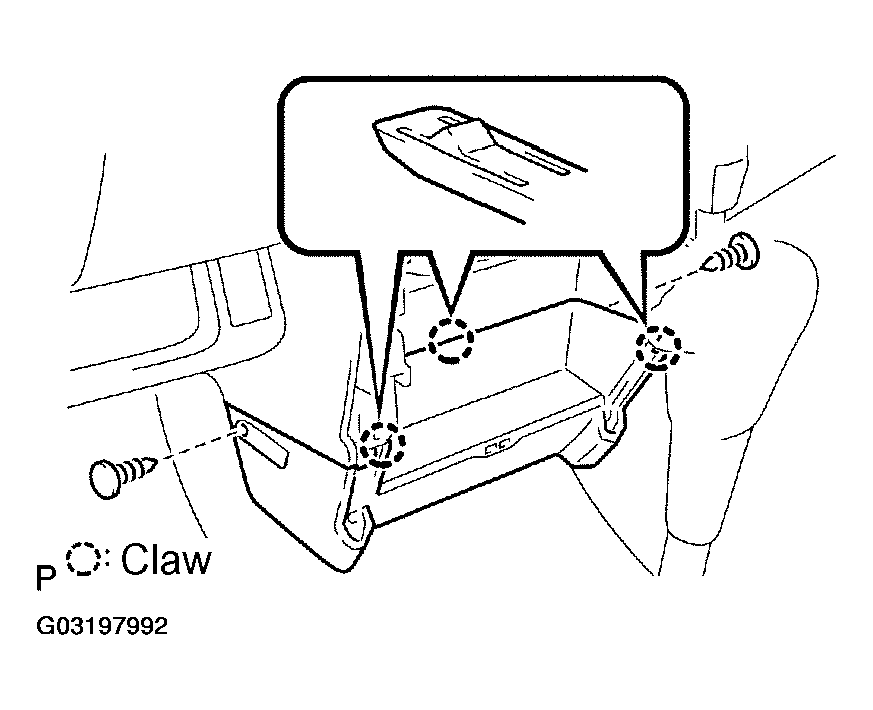

    2. Disengage the 3 claws, and remove the instrument panel finish panel lower center.
       Fig 7: Removing Instrument Panel Finish Panel Lower Center

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
18. REMOVE SHIFT LEVER KNOB SUB-ASSY (M/T TRANSAXLE)
19. REMOVE CONSOLE BOX ASSY REAR

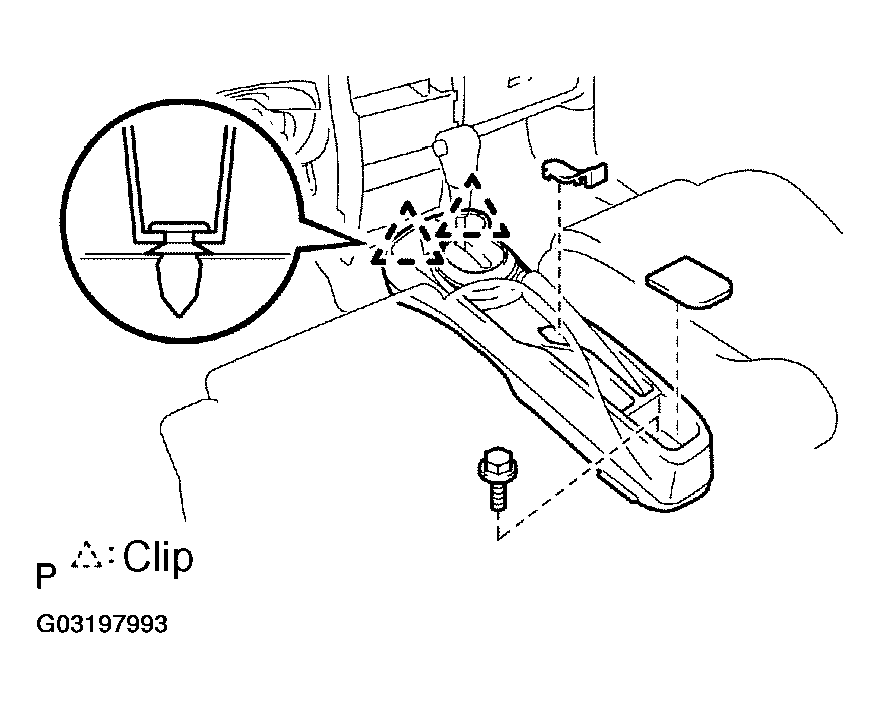

    1. Disengage the 4 claws, and remove the console box rear cover.
    2. Remove the console box carpet.
    3. Remove the screw < G >.
    4. Disengage the 2 clips, and remove the console box assy rear.
       Fig 8: Removing Console Box Assy Rear

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
20. REMOVE FUSE BOX OPENING COVER
21. REMOVE INSTRUMENT PANEL SUB-ASSY LOWER W/HEATER DUCT

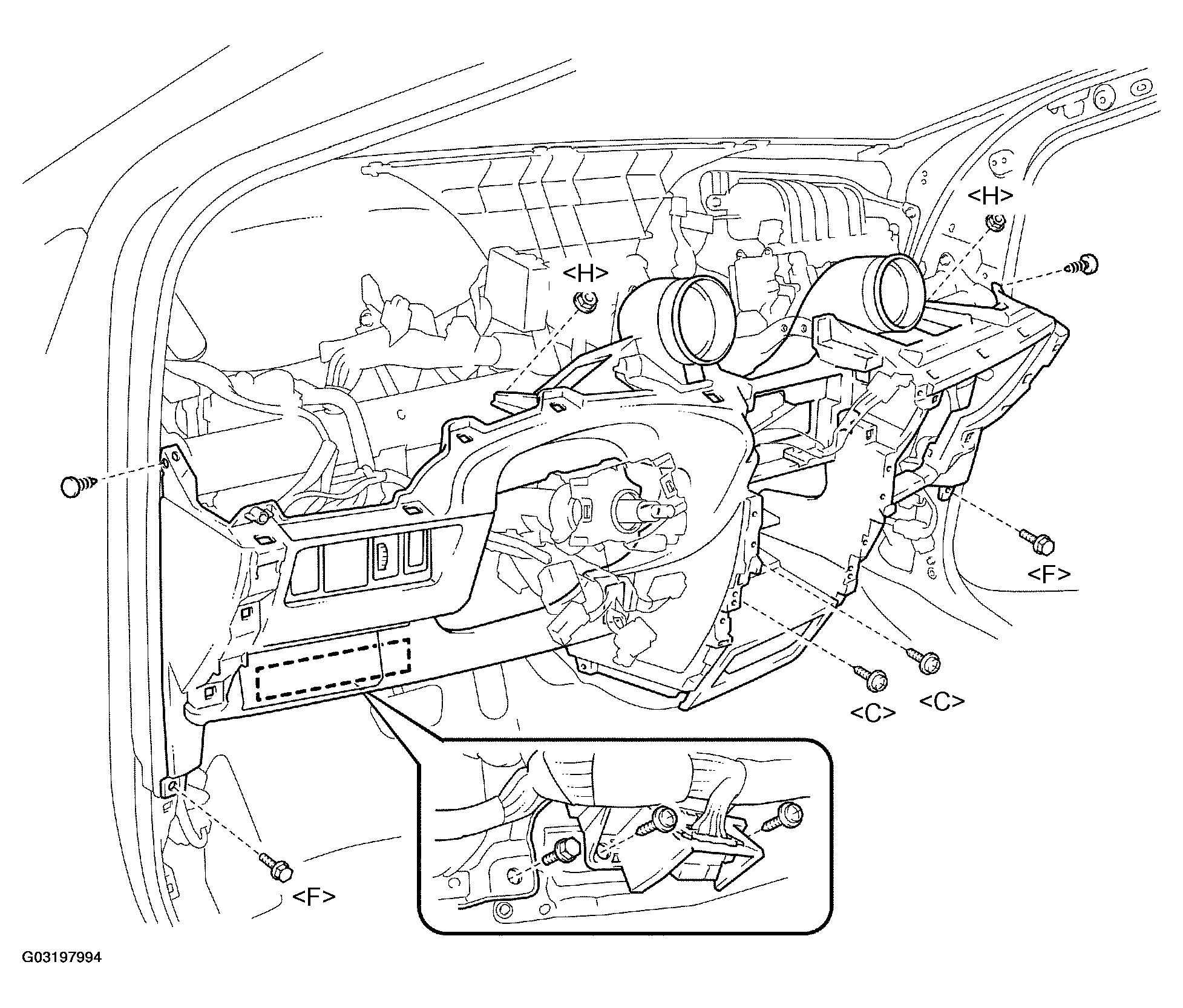

    1. Disconnect the hood lock control cable.
    2. Using a clip remover, remove the 2 clips.
    3. Remove the 2 bolts < F >, the 2 nuts < H > and the 2 screws < C >.
    4. Remove the 2 screws and the bolt, and separate the instrument panel junction block assy.
    5. Remove the instrument panel sub-assy lower w/ heater duct.
       Fig 9: Removing Instrument Panel Sub-Assembly Lower W/Heater Duct

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
22. REMOVE HEATER TO REGISTER DUCT NO.2

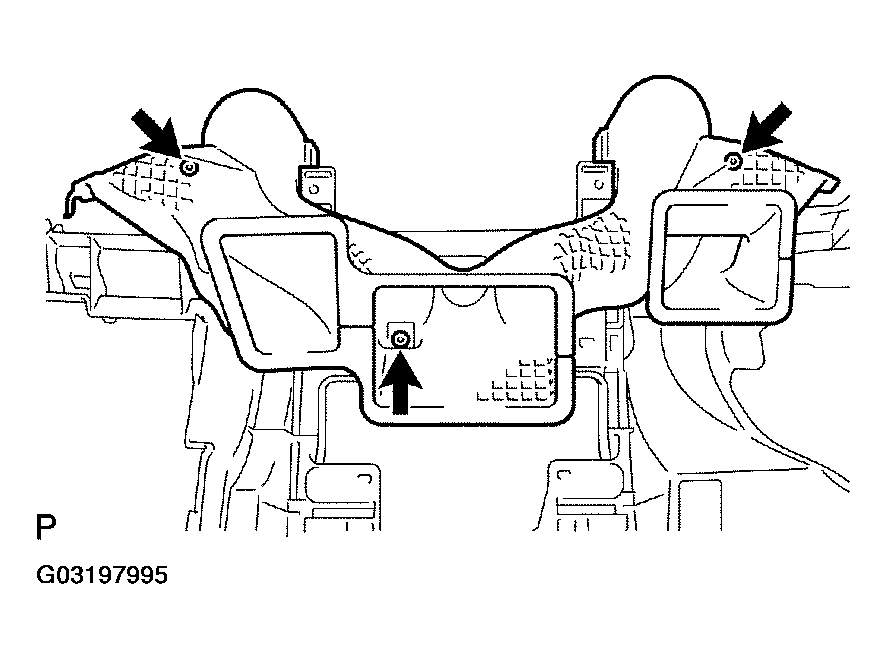

    1. Using nippers etc., cut off the ultrasonic welding portion as shown in the illustration to remove the heater to register duct No.2 from the instrument panel sub-assy.
       Fig 10: Identifying Bolts Of Heater Assembly

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
       Fig 11: Removing Heater To Register Duct From Instrument Panel Sub-Assembly

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
23. REMOVE GLOVE COMPARTMENT DOOR LOCK MOUNTING BRACKET
    1. Remove the screw < C > and the glove compartment door lock mounting bracket.
       Fig 12: Removing Screw & Glove Compartment Door Lock Mounting Bracket

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
24. REMOVE INSTRUMENT PANEL ASSY LOWER
25. INSTALL HEATER TO REGISTER DUCT NO.2
    1. When replacing the instrument panel sub-assy lower with a new one, cut the boss off using nippers, etc. as shown in the illustration.
       NOTE: when reusing the instrument panel sub-assy lower, start from step (b).
       Fig 13: Cutting Boss Off Using Nippers

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Using a screw, install the heater to register duct No.2.
       Fig 14: Installing Heater To Register Duct

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
26. INSTALL INSTRUMENT PANEL SUB-ASSY W/PASSENGER AIRBAG ASSY (SEE  REPLACEMENT  )
27. ADJUST SPIRAL CABLE SUB-ASSY (SEE  SPIRAL CABLE SUB-ASSY  )
28. INSTALL STEERING WHEEL ASSY (SEE  OVERHAUL  )
29. INSTALL HORN BUTTON ASSY (SEE  REPLACEMENT  )
30. INSPECT HORN BUTTON ASSY (SEE  ON-VEHICLE INSPECTION  )
31. INSPECT SRS WARNING LIGHT (SEE  DIAGNOSIS SYSTEM  )
