Front Speed Sensor: Installation

HINT:

• Use the same procedures for the LH side and RH side.
• The procedures listed below are for the LH side.

1. INSTALL FRONT SPEED SENSOR LH
   1. Install the speed sensor with the bolt.

      Torque: 8.0 N*m (82 kgf*cm, 71 in.*lbf)

      NOTE: Keep the sensor tip and sensor installation hole free from foreign matter.

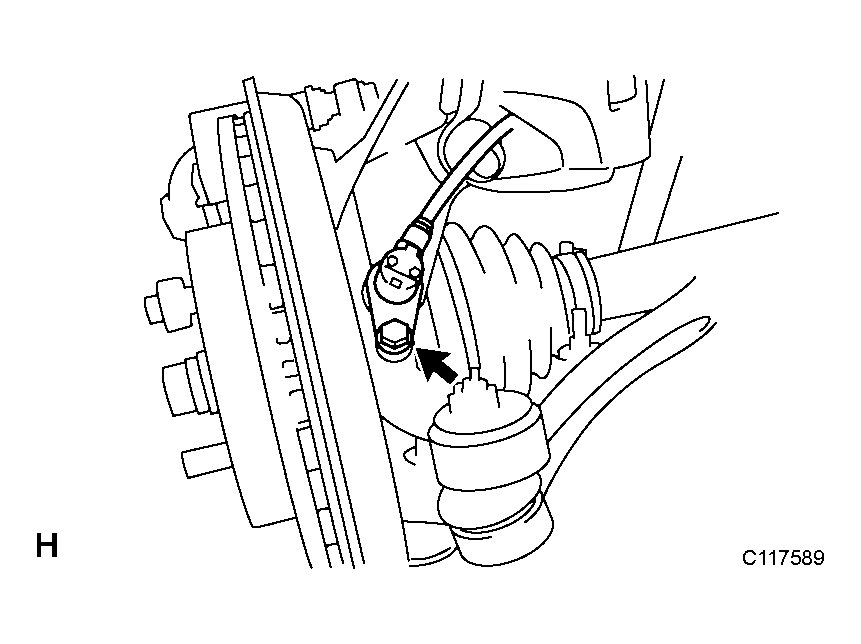

      Fig 1: Installing Speed Sensor With Bolt

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   2. Install the speed sensor wire harness to the body and shock absorber with the 2 clamp bolts.

      Torque: 8.0 N*m (82 kgf*cm, 71 in.*lbf) for bolt A

      29 N*m (300 kgf*cm, 21 ft.*lbf) for bolt B

      NOTE: Do not twist the sensor wire when installing it.
   3. Connect the resin clip and speed sensor wire harness to the shock absorber.
      NOTE: Do not twist the sensor wire when installing it.

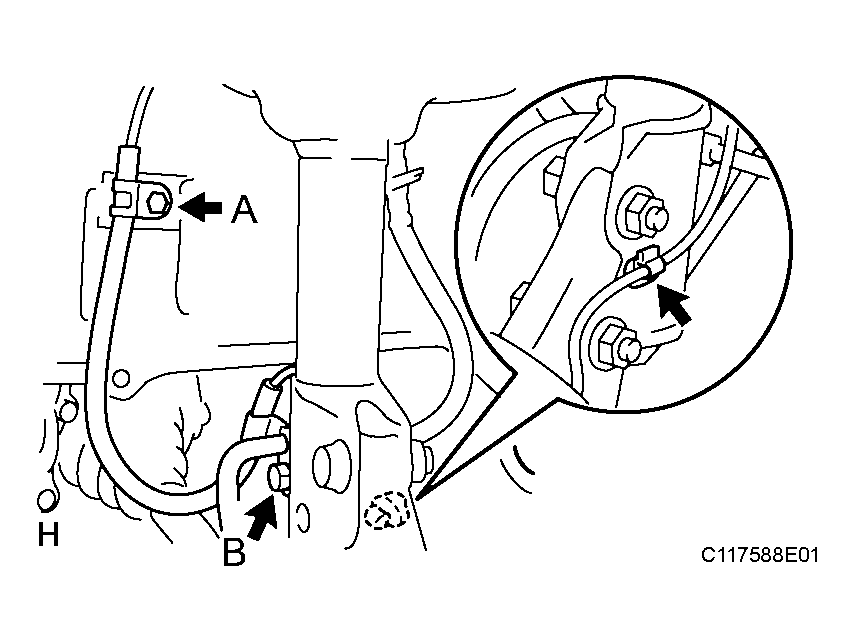

      Fig 2: Installing Speed Sensor Wire Harness To Body And Shock Absorber With Bolts

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   4. Connect the speed sensor connector.
      NOTE: Do not twist the sensor wire when installing it.
2. INSTALL FRONT WHEEL

   Torque: 103 N*m (1,050 kgf*cm, 76 ft.*lbf)

3. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
4. CHECK ABS SPEED SENSOR SIGNAL
   1. Check the ABS speed sensor signal (see HOW TO PROCEED WITH TROUBLESHOOTING  ).

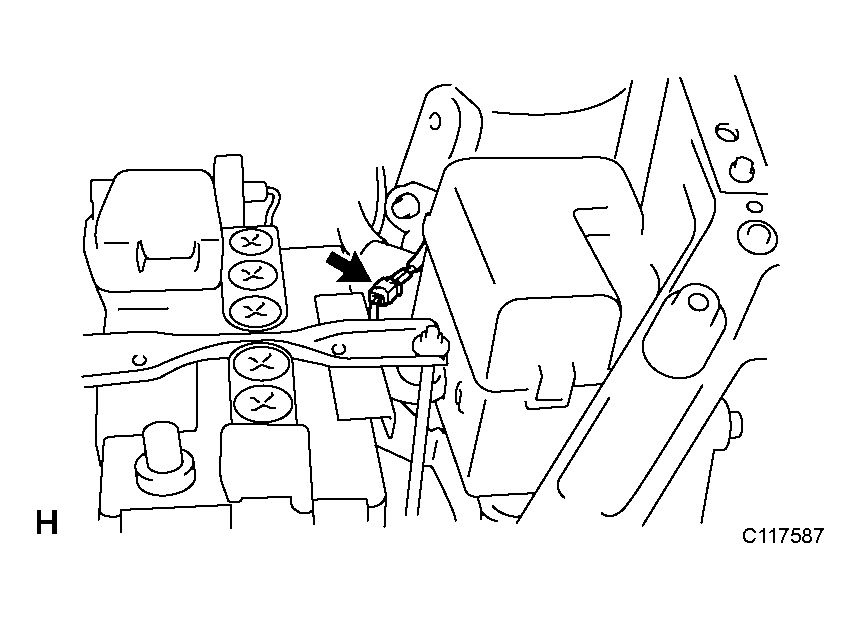

      Fig 3: Connecting Speed Sensor Connector

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
