Lower Instrument Panel: Installation
- INSTALL NO. 2 INSTRUMENT PANEL BOX
- Install the instrument panel box with the 8 < A > screws.
- INSTALL GLOVE COMPARTMENT DOOR STOPPER SUB-ASSEMBLY
- Engage the claw and install the glove compartment door stopper.
- INSTALL FRONT PASSENGER SEAT BELT WARNING LIGHT
- Engage the 2 claws and install the front passenger seat belt warning light.
- INSTALL LOWER INSTRUMENT PANEL SUB-ASSEMBLY
- Using a nipper, cut off both ends of the runner portion shown in the illustration (When installing a new one).

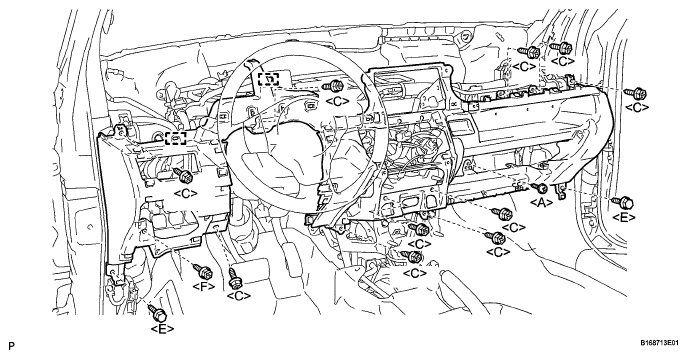

- Install the lower instrument panel with the < A > screw, 10 < C > screws, 2 < E > bolts, < F > screw.
- Connect the 2 clamps.
- Connect the front passenger seat belt warning light connector.
- Engage the 2 claws and install the DLC3 connector.
- INSTALL ANTENNA CORD SUB-ASSEMBLY
- Connect the 2 clamps and install the antenna cord.
- CONNECT HOOD LOCK CONTROL LEVER SUB-ASSEMBLY
- Engage the 3 claws to connect the hood lock control lever.
- INSTALL NO. 1 INSTRUMENT CLUSTER FINISH PANEL SEAL
- Engage the 4 claws and install the instrument finish panel seal.
- INSTALL RADIO BRACKET
- Install the No. 1 radio bracket with the 2 < G > bolts.
Torque: 23 N*m (229 kgf*cm, 17 ft.*lbf)
- Install the No. 2 radio bracket with the 2 < G > bolts.
Torque: 23 N*m (229 kgf*cm, 17 ft.*lbf)
- Install the No. 1 radio bracket with the 2 < G > bolts.
- INSTALL INSTRUMENT PANEL SUB REINFORCEMENT
- Install the instrument panel sub reinforcement with the 2 < D > bolts.
- INSTALL INSTRUMENT PANEL FINISH LOWER PANEL SUB-ASSEMBLY
- Connect the each connectors.
- Engage the 2 clips, 7 claws and install the instrument panel finish lower panel.
- INSTALL NO. 1 SWITCH HOLE BASE
- Connect the 2 connectors.
- Engage the 2 clips, 3 claws and install the switch hole base.
- CONNECT AIR MIX DAMPER CONTROL CABLE SUB-ASSEMBLY (See INSTALLATION )
- CONNECT NO. 2 HEATER CONTROL CABLE SUB-ASSEMBLY (See INSTALLATION )
- INSTALL AIR CONDITIONING PANEL ASSEMBLY (See INSTALLATION )
- INSTALL SHIFT LEVER ASSEMBLY (for Automatic Transaxle) (See INSTALLATION )
- CONNECT TRANSMISSION CONTROL CABLE ASSEMBLY (for Automatic Transaxle) (See INSTALLATION )
- INSPECT SHIFT LEVER POSITION (for Automatic Transaxle) (See ON-VEHICLE INSPECTION )
- ADJUST SHIFT LEVER POSITION (for Automatic Transaxle) (See INSTALLATION )
- INSTALL SHIFT LEVER ASSEMBLY (for Manual Transaxle) (See INSTALLATION )
- CONNECT TRANSMISSION CONTROL CABLE ASSEMBLY (for Manual Transaxle) (See INSTALLATION )
- ADJUST TRANSMISSION CONTROL SELECT CABLE (for Manual Transaxle) (See ADJUSTMENT )
- INSTALL INSTRUMENT PANEL FINISH LOWER PANEL (for Automatic Transaxle)
- Engage the 6 clips and install the instrument panel finish lower panel.
- Install the 4 < A > screws.
- INSTALL INSTRUMENT PANEL FINISH LOWER PANEL (for Manual Transaxle)
- Engage the 6 clips and install the instrument panel finish lower panel.
- Install the 2 < A > screws.
- INSTALL FRONT NO. 1 CONSOLE BOX INSERT
- Engage the 3 claws and guide and install the front console box insert.
- INSTALL FRONT NO. 2 CONSOLE BOX INSERT
- Engage the 3 claws and guide and install the front console box insert.
- INSTALL INSTRUMENT CLUSTER FINISH CENTER LOWER PANEL
- Connect the connector.
- Engage the 2 clips, 4 claws and install the instrument cluster finish center lower panel.
- INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY (for Manual Transaxle)
- Turn the shift lever knob clockwise and install the shift lever knob.
- INSTALL UPPER INSTRUMENT PANEL SUB-ASSEMBLY (See INSTALLATION )
- INSTALL GLOVE COMPARTMENT DOOR ASSEMBLY (See INSTALLATION )
- INSTALL COMBINATION METER ASSEMBLY (See INSTALLATION )
- INSTALL INSTRUMENT CLUSTER FINISH PANEL ASSEMBLY (See INSTALLATION )
- INSTALL INSTRUMENT CLUSTER FINISH LOWER PANEL (See INSTALLATION )
- INSTALL INSTRUMENT CLUSTER FINISH CENTER PANEL SUB-ASSEMBLY (See INSTALLATION )
- INSTALL FRONT PILLAR GARNISH RH (See INSTALLATION )
- INSTALL FRONT PILLAR GARNISH LH (See INSTALLATION )
- INSTALL FRONT DOOR OPENING TRIM WEATHERSTRIP RH (See INSTALLATION )
- INSTALL FRONT DOOR OPENING TRIM WEATHERSTRIP LH (See INSTALLATION )
- INSTALL COWL SIDE TRIM BOARD RH (See INSTALLATION )
- INSTALL COWL SIDE TRIM BOARD LH (See INSTALLATION )
- INSTALL FRONT DOOR SCUFF PLATE RH (See INSTALLATION )
- INSTALL FRONT DOOR SCUFF PLATE LH (See INSTALLATION )
- CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
Torque: 5.4 N*m (55 kgf*cm, 48 in.*lbf)
- INSPECT SRS WARNING LIGHT
(See DIAGNOSIS SYSTEM )
