Retrieving Codes
- Drive vehicle at 6 MPH (10 km/h) for at least 20 seconds. When system fault is detected, ABS warning light will illuminate.

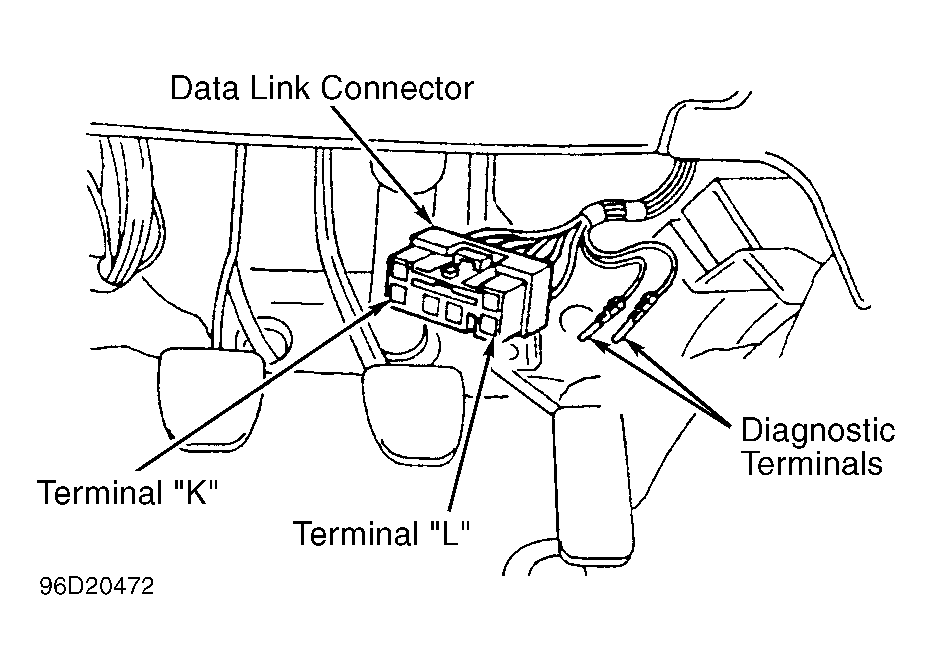

- Access ABS Data Link Connector (DLC). See Fig 1 . Turn ignition off. Connect diagnostic terminal to terminal "L" at DLC. Turn ignition on. Determine Diagnostic Trouble Code (DTC) by counting number of times ABS warning light flashes. Up to 3 codes can be stored at a time, with the most recent code displayed first.
- ABS light first flashes DTC 11, which is the start code. DTCs will then be flashed. See illustration for example. See Fig 2 . After codes are flashed, start DTC 11 will again be displayed and codes repeated. Perform appropriate DTC test under TESTING . See ABS DIAGNOSTIC TROUBLE CODES table.
ABS DIAGNOSTIC TROUBLE CODES
| DTC | Fault | TEST No. |
|---|---|---|
| 11 | Start Code | None |
| 21 | Right Front Sensor (Open) | 1 |
| 22 | Right Front Sensor (Short) | 2 |
| 23 | Left Front Sensor (Open) | 1 |
| 24 | Left Front Sensor (Short) | 2 |
| 25 | Right Rear Sensor (Open) | 1 |
| 26 | Right Rear Sensor (Short) | 2 |
| 27 | Left Rear Sensor (Open) | 1 |
| 28 | Left Rear Sensor (Short) | 2 |
| 29 | Tone Wheel | 3 |
| 31 | Solenoid Valve (Right Front) | 4 |
| 33 | Solenoid Valve (Left Front) | 4 |
| 39 | Solenoid Valve (Left Rear) | 4 |
| 41 | ABS Control Unit | 5 |
| 42 | Low Supply Voltage | 6 |
| 51 | Valve Relay Problem | 7 |
| 52 | Motor And/Or Motor Relay Problem | 8 |
| 54 | Stoplight Circuit Problem | 9 |
| 56 | "G" Sensor Output Voltage | 10 |
