Tilt Steering Column: Removal

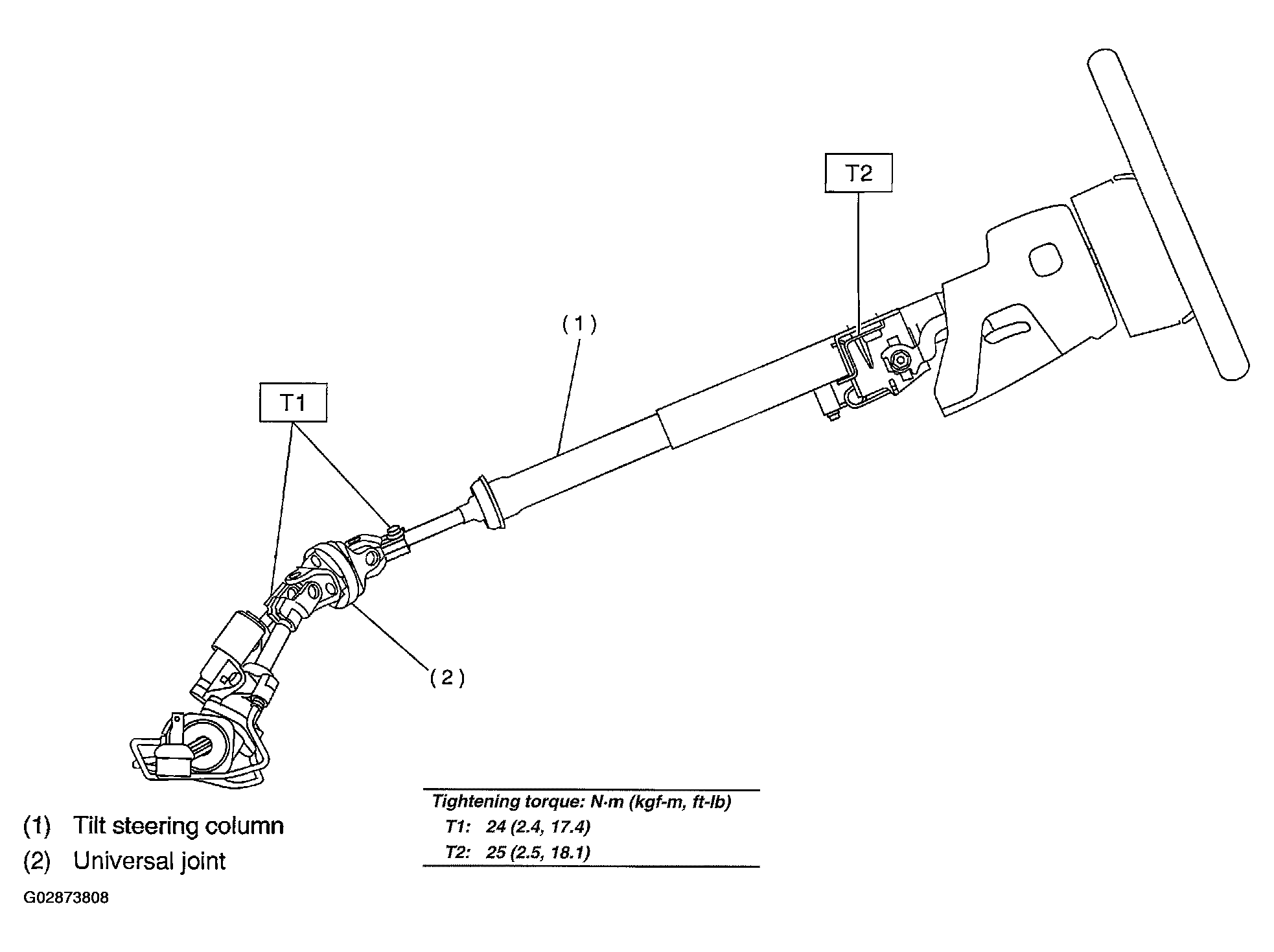

Fig 1: Identifying Tilt Steering Column

Courtesy of SUBARU OF AMERICA, INC.

1. Set the vehicle on the lift.
2. Disconnect battery minus ground cable.
3. Remove airbag module. < Ref. to AIR BAG RESTRAINT SYSTEMS .>
   WARNING: Always refer to AIR BAG RESTRAINT SYSTEMS before performing airbag module service (if so equipped).
4. Remove steering wheel. < Ref. to REMOVAL  , Steering Wheel.>
5. Lift-up the vehicle.
6. Remove universal joint. < Ref. to REMOVAL  , Universal Joint.>
7. Lower the vehicle.
8. Remove trim panel under instrument panel.
9. Remove the screw securing lower steering column cover.

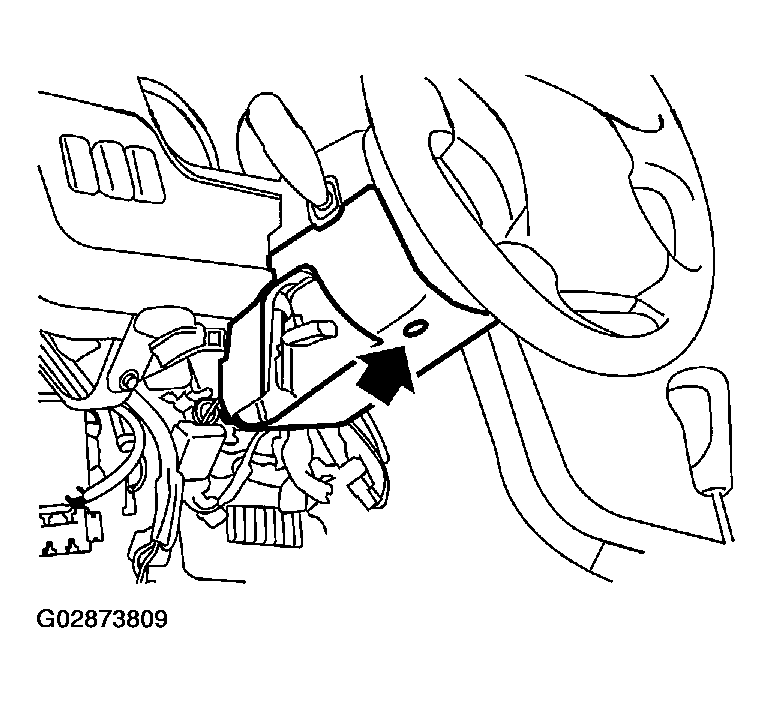

   Fig 2: Removing Screw Securing Lower Steering Column Cover

   Courtesy of SUBARU OF AMERICA, INC.
10. Remove all connectors from steering column.
11. Remove the two bolts under instrument panel securing steering column.

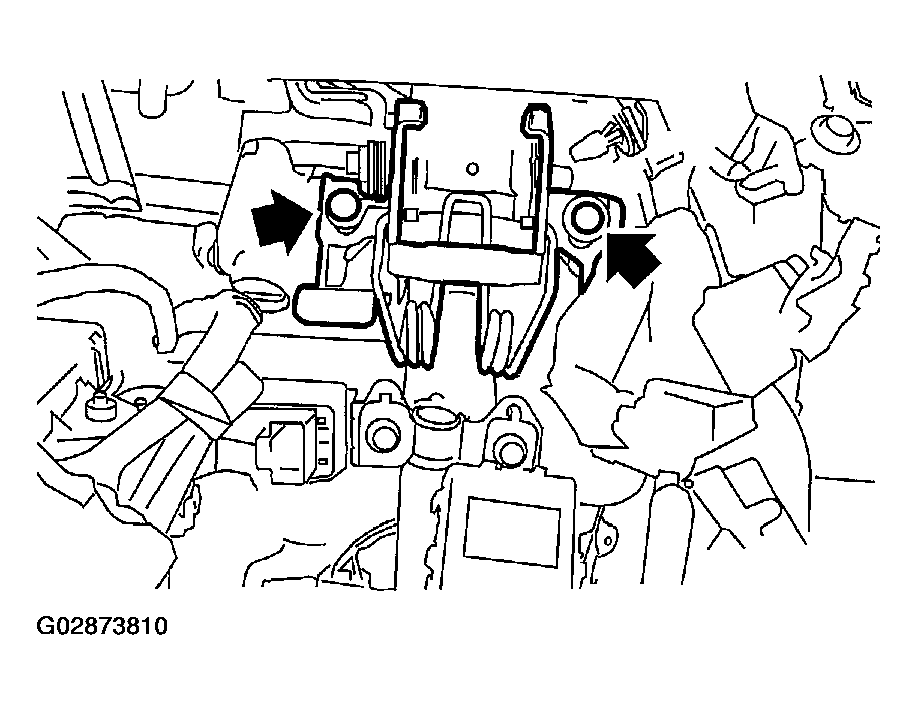

    Fig 3: Removing Bolts Under Instrument Panel Securing Steering Column

    Courtesy of SUBARU OF AMERICA, INC.
12. Pull out steering shaft assembly from hole on toe board.

CAUTION: Be sure to remove universal joint before removing steering shaft assembly installing bolts when removing steering shaft assembly or when lowering it for servicing of other parts.
