Reduction Driven Gear: Removal

Remove the transmission assembly from the vehicle. < Ref. to REMOVAL . >
Remove rear vehicle speed sensor, and separate the transmission case and extension case.
< Ref. to REMOVAL . >
Set the range select lever to "P".
Straighten the staked portion, and remove the lock nut.

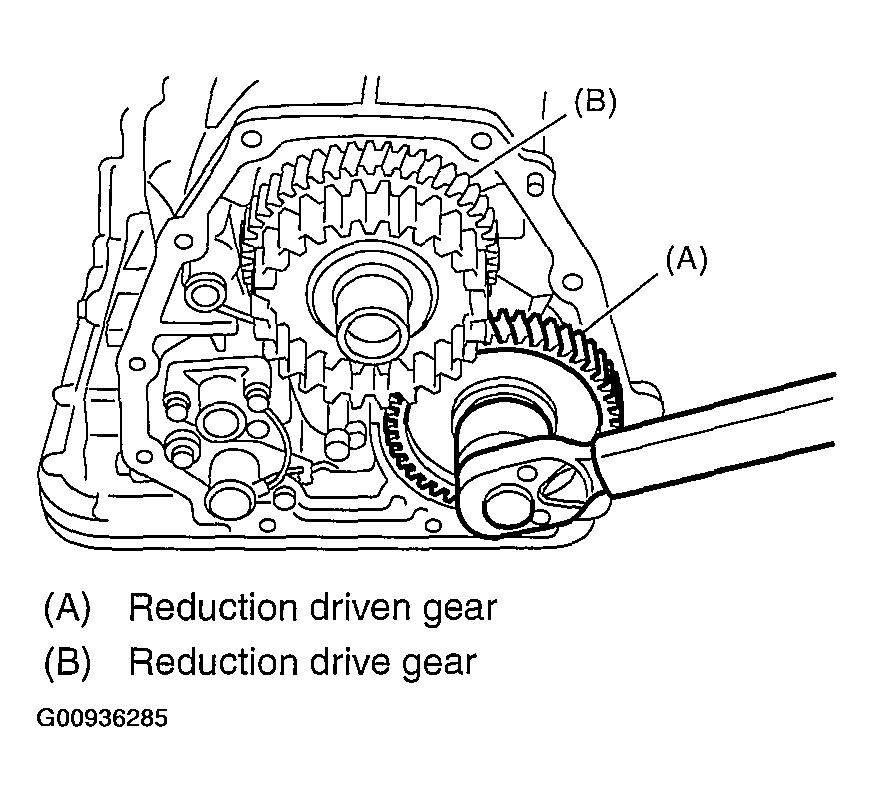

Fig 1: Identifying Lock Nut
Courtesy of SUBARU OF AMERICA, INC.
Using the ST1 and ST2, extract the reduction driven gear assembly.
ST1 499737000 PULLER

ST2 899524100 PULLER SET

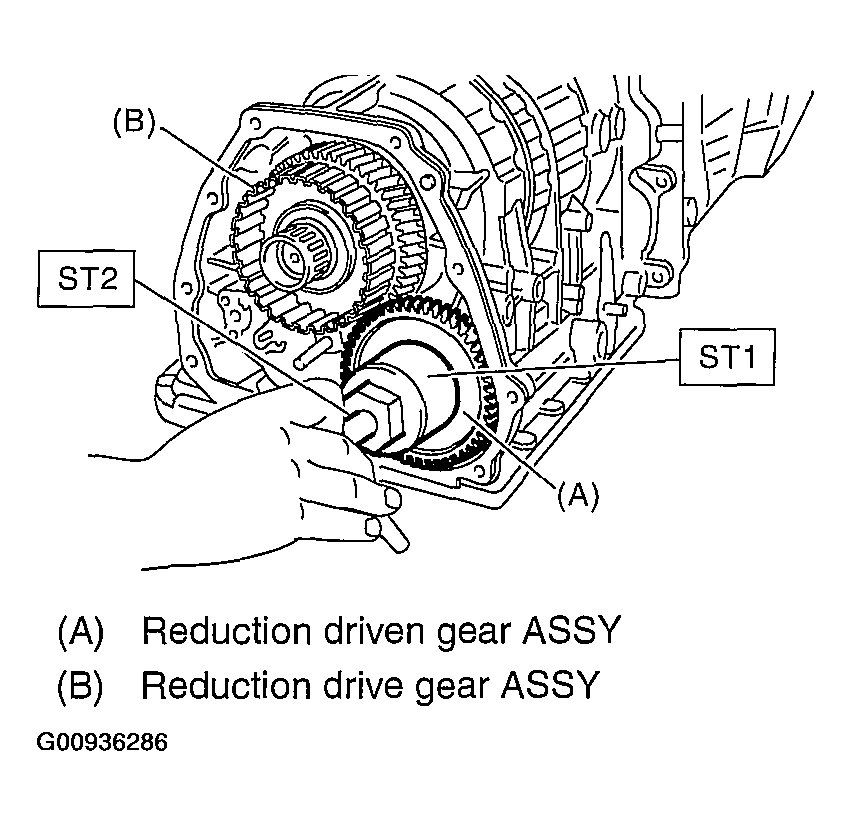

Fig 2: Using SST Extracting Reduction Driven Gear Assembly
Courtesy of SUBARU OF AMERICA, INC.
