Reduction Drive Gear: Removal

  1. Remove the transmission assembly from the vehicle. < Ref. to , REMOVAL . >
  2. Remove rear vehicle speed sensor, and separate the transmission case and extension case. < Ref. to , REMOVAL . >
  3. Remove the reduction driven gear. < Ref. to , REMOVAL . >
  4. Using ST, extract the reduction drive gear.

    ST1 499737000 PULLER

    ST2 899524100 PULLER SET

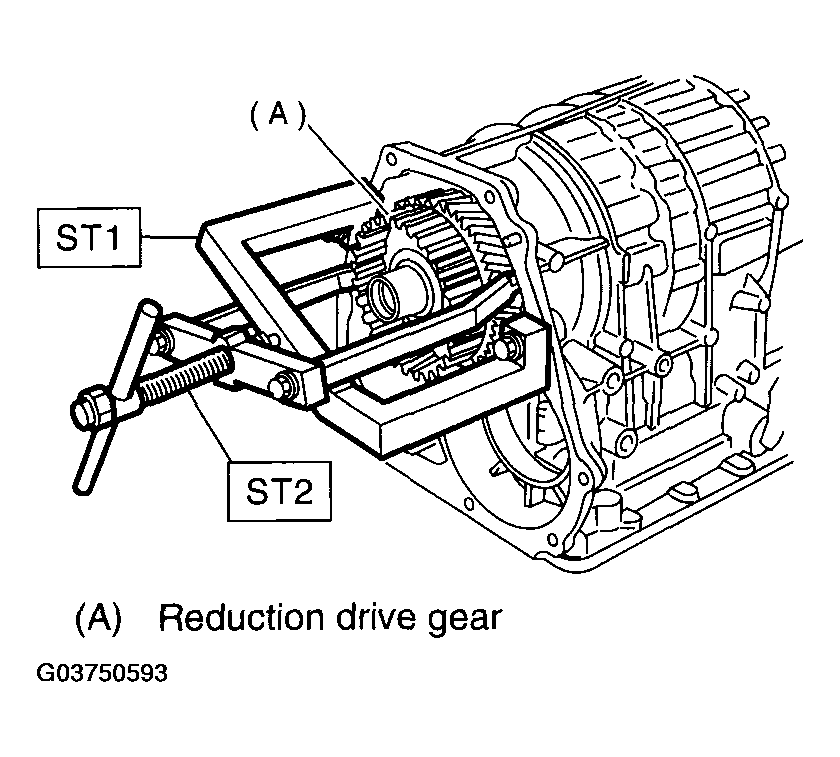

    Fig 1: Extracting Reduction Drive Gear Using Puller ST1-499737000 And Puller Set ST2-899524100
    G03750593Courtesy of SUBARU OF AMERICA, INC.
