Transmission Control Device: Removal

  1. Remove the transmission assembly from the vehicle. < Ref. to REMOVAL , Automatic Transmission Assembly. >
  2. Extract the torque converter clutch assembly. < Ref. to REMOVAL , Torque Converter Clutch Assembly. >
  3. Remove the input shaft.
  4. Lift-up lever behind the transmission harness connector and disconnect it from stay.
  5. Disconnect the air breather hoses. < Ref. to REMOVAL , Air Breather Hose. >
  6. Disconnect inhibitor switch connector from stay.
  7. Wrap vinyl tape around the nipple attached to the air breather hose.
  8. Remove pitching stopper bracket.
  9. Remove the inhibitor switch.

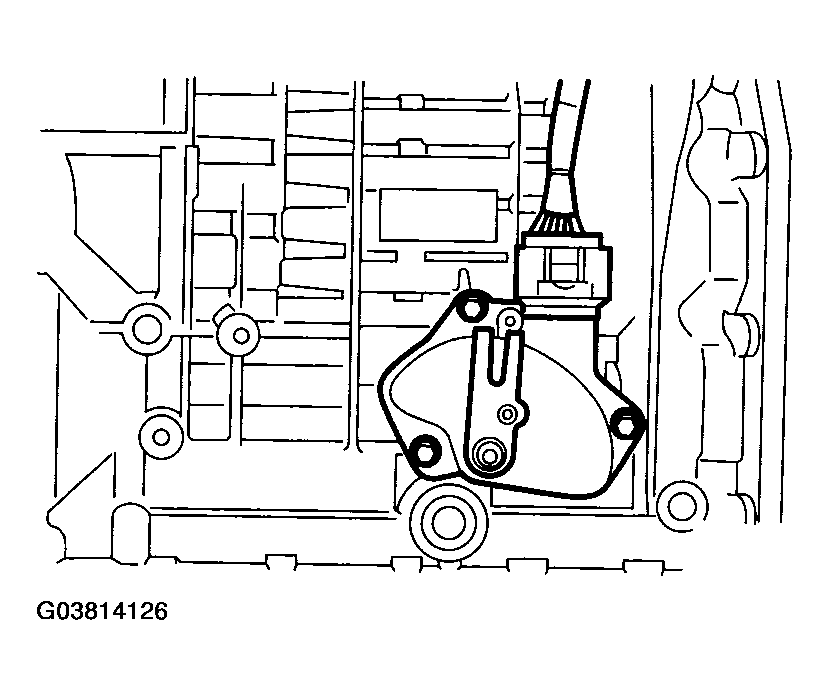

    Fig 1: Removing Inhibitor Switch
    G03814126Courtesy of SUBARU OF AMERICA, INC.
  10. Remove control valve body assembly. < Ref. to REMOVAL , Control Valve Body. >
  11. Pull off the straight pin of manual plate.

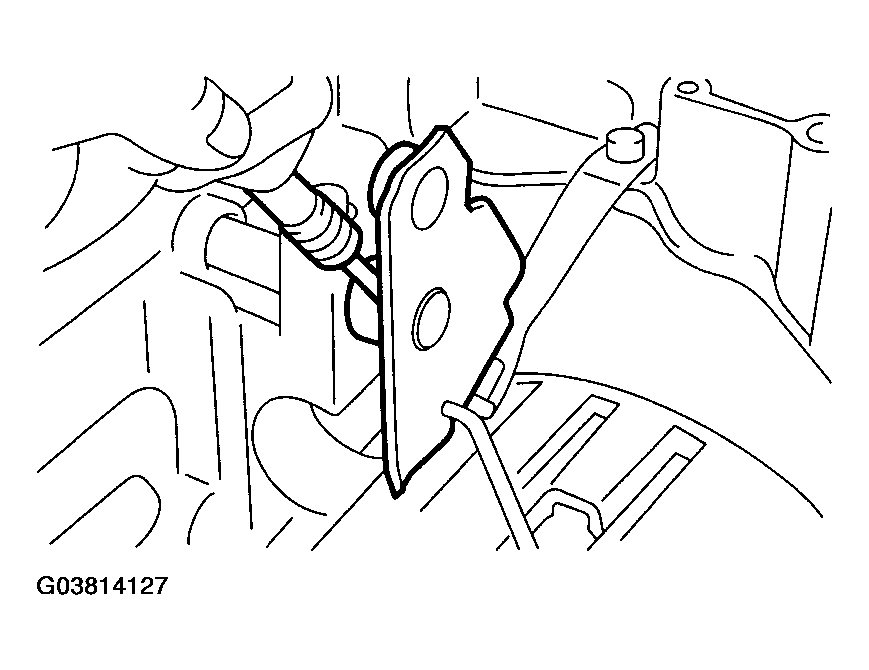

    Fig 2: Removing Straight Pin Of Manual Plate
    G03814127Courtesy of SUBARU OF AMERICA, INC.
  12. Remove bolt securing select lever, then remove select lever, manual plate and parking rod.
    NOTE: Be careful not to damage the lips of the press-fitted oil seal in the case.

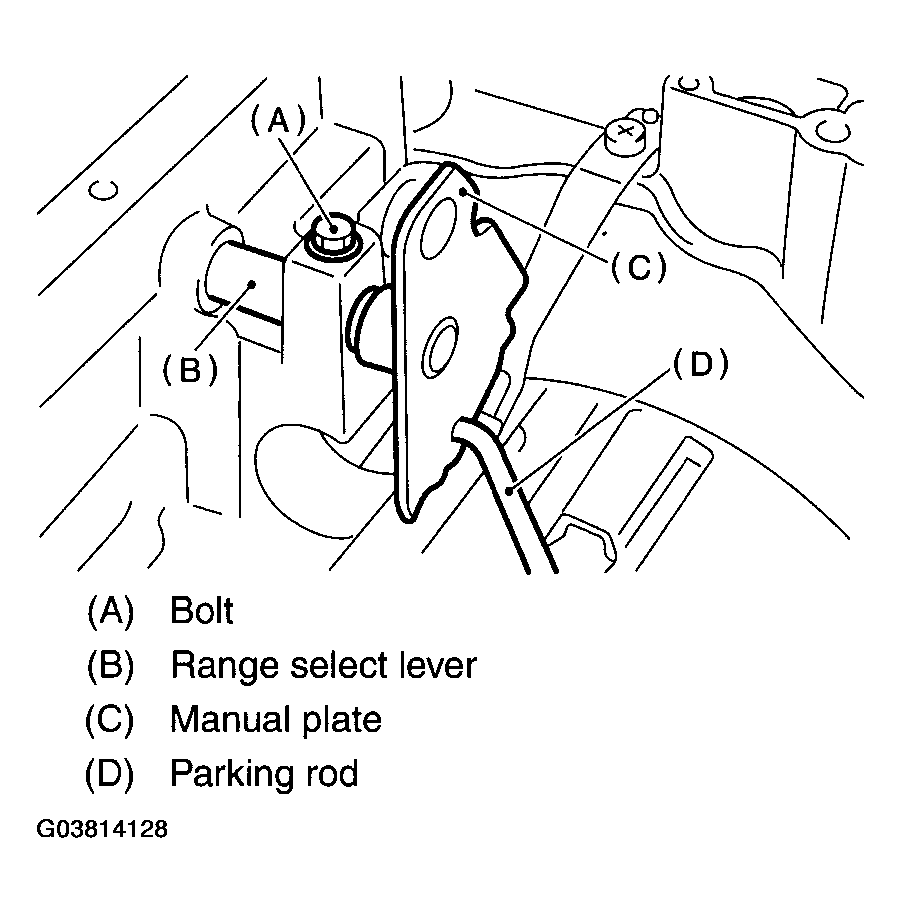

    Fig 3: Removing Select Lever, Manual Plate And Parking Rod
    G03814128Courtesy of SUBARU OF AMERICA, INC.
  13. Remove the detention spring.

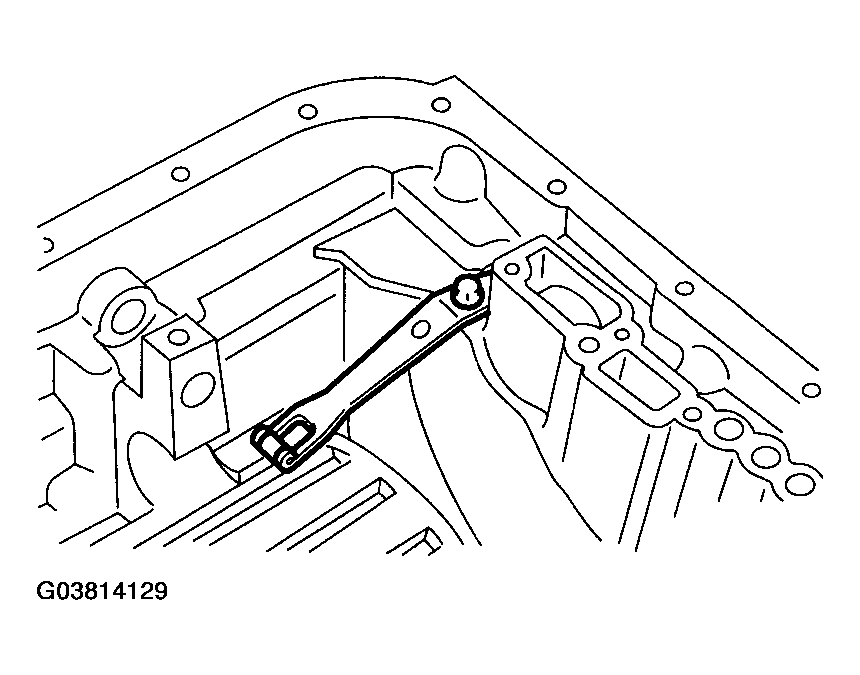

    Fig 4: Removing Detention Spring
    G03814129Courtesy of SUBARU OF AMERICA, INC.
