Oil Charge Pipe: Installation

Install the oil charge pipe with a new O-ring.
Tightening torque:

41 N.m (4.2 kgf-m, 30.4 ft-lb)

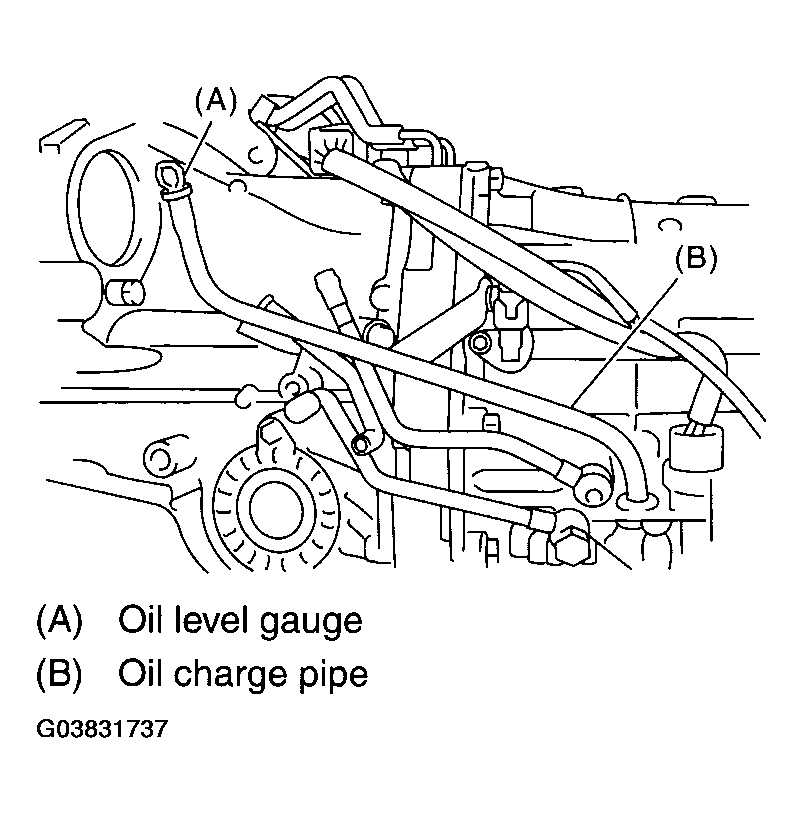

Fig 1: Installing Oil Charge Pipe
Courtesy of SUBARU OF AMERICA, INC.
Install the intercooler. (Turbo model) < Ref. to , INSTALLATION , lntercooler. >
Install the air intake chamber. (Non-turbo model) < Ref. to , INSTALLATION , Air Intake Chamber. >
