Turbine Speed Sensor 1: Installation

Install the turbine speed sensor 1.
Tightening torque:

7 N.m (0.7 kgf-m, 5.2 ft-lb)
Connect the turbine speed sensor 1 connector.

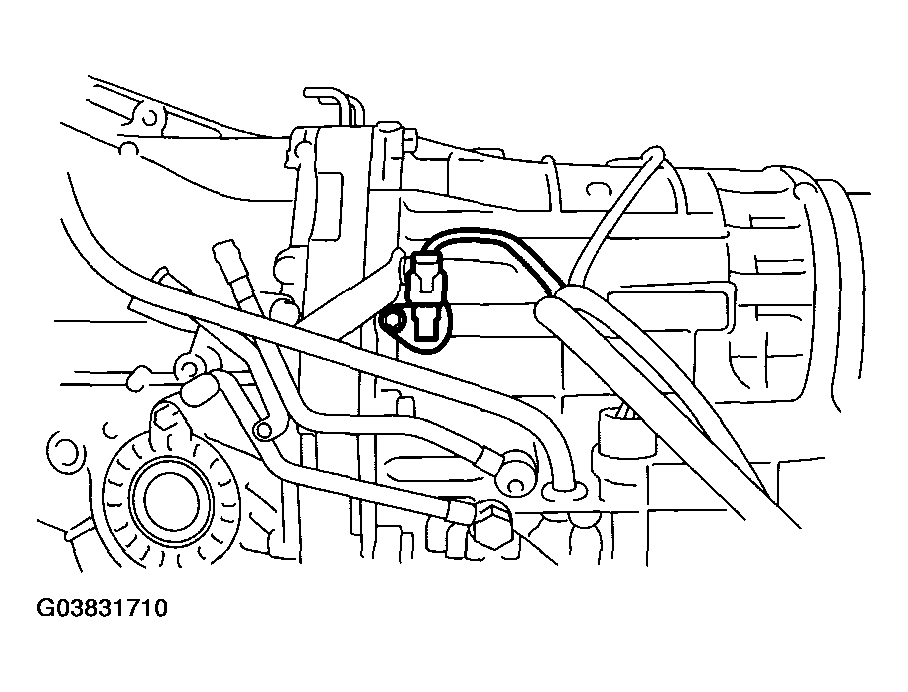

Fig 1: Connecting Turbine Speed Sensor 1 Connector
Courtesy of SUBARU OF AMERICA, INC.
Install the intercooler. (Turbo model) < Ref. to , INSTALLATION , lntercooler. >
Install the air intake chamber. (Non-turbo model) < Ref. to , INSTALLATION , Air Intake Chamber. >
