Rack Housing Assembly

Using a press, install the bushing to gearbox installation portion.

Fig 1: Identifying Bushing To Gearbox
Courtesy of SUBARU OF AMERICA, INC.
Insert the ST to rack.
ST 34199XA010 GUIDE 44

Fig 2: Identifying Seal Ring, Rack And Guide 44 ST 34199XA010

Courtesy of SUBARU OF AMERICA, INC.

Install the seal ring to piston portion of rack.
1. Using the ST, form the seal ring properly.
  ST1 34199XA020 FORMER PISTON 44

  ST2 34199AG060 GUIDE G (26)

  Fig 3: Installing Seal Ring Using Former Piston 44 ST1 34199XA020 And Guide G (26) ST2 34199AG060
  Courtesy of SUBARU OF AMERICA, INC.
2. Using the ST B and ST C, attach the oil seal to ST A.
  ST 927490000 INSTALLER A, B, C

  NOTE: Face the oil seal in the direction as shown in the figure.

  Fig 4: Attaching Oil Seal Using Installer A, B, C ST 927490000
  Courtesy of SUBARU OF AMERICA, INC.
3. Insert the ST A with oil seal assembled from the gear side of rack. Remove the oil seal from ST A near piston, and then remove the ST A from rack.

  Fig 5: Identifying ST A To Remove Oil Seal
  Courtesy of SUBARU OF AMERICA, INC.
Install the back-up washer from the gear side of rack.

Fig 6: Identifying Back-Up Washer From Gear Side Of Rack
Courtesy of SUBARU OF AMERICA, INC.
Install the ST on rack, equally apply a thin coat of grease to the rack and ST, and then install the oil seal.
ST 926250000 GUIDE

CAUTION: Be careful not to scratch the oil seal lips with the inner ring section of piston.

Fig 7: Installing Oil Seal Using Guide ST 926250000
Courtesy of SUBARU OF AMERICA, INC.
Apply a coat of grease to the grooves in rack, sliding surface of sleeve and sealing surface of piston. Then insert the rack into steering body from cylinder side.
Check the threaded end of holder and gearbox cylinder end for burrs, damage, etc. Correct if faulty.
Insert the ST into gearbox cylinder, and then press-fit the oil seal.
ST 34199XA000 INSTALLER 44

Fig 8: Installing Oil Seal Using Installer 44 ST 34199XA000
Courtesy of SUBARU OF AMERICA, INC.
Temporarily tighten the holder to gearbox cylinder.
Set the ST to the end of rack.
ST 34199XA030 INSTALLER & REMOVER 44
Using a press, press-fit until the groove of ST are aligned to the end surface of holder.

Fig 9: Tightening Holder To Gearbox Cylinder Using Installer & Remover 44 ST 34199XA030
Courtesy of SUBARU OF AMERICA, INC.
Secure the gearbox in a vise using ST.
ST1 926200000 STAND

ST2 34199AG000 BOSS D

Fig 10: Securing Gearbox In Vise Using Stand ST1 926200000 And Boss D ST2 34199AG000
Courtesy of SUBARU OF AMERICA, INC.
Tighten the holder.
Tightening torque:

85 N.m (8.7 kgf-m, 62.7 ft-lb)

Fig 11: Identifying Holder
Courtesy of SUBARU OF AMERICA, INC.
Using the ST, caulk so that the diameter of punch hole is 2 - 2.5 mm (0.08 - 0.10 in) and is aligned to the position of 2 mm (0.08 in) from gearbox cylinder end surface.
ST 34099FA060 PUNCH HOLDER

Fig 12: Identifying Diameter Of Punch Hole
Courtesy of SUBARU OF AMERICA, INC.
Put a vinyl tape around the spline portion and apply genuine grease to the dust cover and install to valve assembly.
CAUTION: Be sure to install the dust cover to groove of shaft.

Fig 13: Installing Dust Cover On Valve Assembly
Courtesy of SUBARU OF AMERICA, INC.
Apply the genuine grease to the pinion gear and bearing of valve assembly.

Fig 14: Identifying Grease Applying Points
Courtesy of SUBARU OF AMERICA, INC.
Install a new gasket on valve assembly. Insert the valve assembly into place while facing the rack teeth toward pinion.

Fig 15: Holding Input Shaft To Remove/Install Valve Assembly
Courtesy of SUBARU OF AMERICA, INC.
Tighten the bolts alternately to secure the valve assembly.
Tightening torque:

20 N.m (2.0 kgf-m, 14.8 ft-lb)

CAUTION: Be sure to alternately tighten the bolts.
Temporarily install the tie-rod to rack end, and then operate the rack from lock to lock for two or three times to make it fit in. Remove any grease blocking the air vent hole.
CAUTION: Operating the rack from lock to lock without installing tie rods may damage the oil seal. Always install the LEFT AND RIGHT tie rods.
Apply liquid gasket to more than 1/3 of entire perimeter of adjusting screw thread.
Liquid gasket:

THREE BOND 1141
Apply a coat of grease to the sliding surface of sleeve and seating surface of spring, and then insert the sleeve into steering body.
Charge the adjusting screw with grease, and then insert the spring into adjusting screw. Then install on the steering body.

Fig 16: Identifying Grease Applying Points On Sleeve, Spring And Adjusting Screw
Courtesy of SUBARU OF AMERICA, INC.
Tighten the adjusting screw to the specified torque.
Tightening torque:

3.9 N.m (0.4 kgf-m, 2.9 ft-lb)
Tighten the adjusting screw to the specified torque, then loosen it 20°.
Remove the tie-rod.
Adjust the turning resistance of gearbox so that it is within specification using adjusting screw. < Refer to TURNING RESISTANCE OF GEARBOX , INSPECTION, STEERING GEARBOX. >
Apply liquid gasket to lock nut and install it into adjusting screw. While holding the adjusting screw with wrench, tighten the lock nut using ST.
Liquid gasket:

THREE BOND 1141

ST 926230000 SPANNER

Tightening torque (lock nut):

25 N.m (2.5 kgf-m, 18.1 ft-lb)

NOTE: Hold the adjusting screw with a wrench to prevent it from turning while tightening lock nut.
Extend the rack approx. 40 mm (1.57 in) from steering body.
Install the tie-rod and new lock washer into rack.
Tightening torque:

130 N.m (13.3 kgf-m, 95.9 ft-lb)

Fig 17: Identifying Lock Washer With Dimension
Courtesy of SUBARU OF AMERICA, INC.

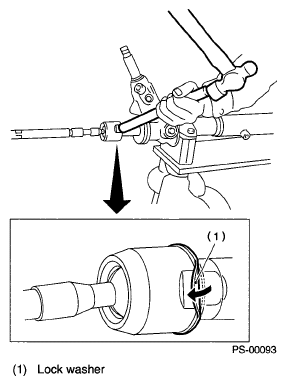

Bend the lock washer and caulk it.
CAUTION: Be careful not to scratch the rack when caulking lock washer.

Fig 18: Bending Lock Washer
Courtesy of SUBARU OF AMERICA, INC.
Apply a coat of grease to the tie-rod groove, and then install the boot to the housing.
CAUTION: Right side boot has groove for identification, be sure to install the right and left of boot.

Fig 19: Identifying Boot With Groove For Identification
Courtesy of SUBARU OF AMERICA, INC.

NOTE: Make sure that the boot is installed without unusual inflation or deflation.

Fig 20: Identifying Grease Applying Points
Courtesy of SUBARU OF AMERICA, INC.
Install a new boot band. Using band clamp pliers, caulk it so that the clearance of caulking portion becomes 2 mm (0. 079 in) or less.

Fig 21: Identifying Boot Band With Clearance Of Caulking
Courtesy of SUBARU OF AMERICA, INC.
Fix the boot end with small clip.

Fig 22: Fixing Boot End With Small Clip
Courtesy of SUBARU OF AMERICA, INC.
After installing, check that the boot end is installed to the groove of the tie-rod.
If the tie-rod end has been removed, screw in lock nut and tie-rod end to the screwed portion of tie-rod, and tighten the lock nut temporarily in a position as shown in the figure.
Installed tie-rod length L:

31 mm (1.22 in)

Fig 23: Identifying Tie-Rod Length
Courtesy of SUBARU OF AMERICA, INC.
Inspect the gearbox as follows:
Holding the "A" tie-rod end, repeat movement from lock to lock two or three times as quickly as possible.

Holding the "B" tie-rod end, turn a few times as slowly as possible.

Finally, make sure that the boot is installed in the specified position without inflating.

Fig 24: Identifying Gearbox
Courtesy of SUBARU OF AMERICA, INC.
Remove the gearbox from ST.
ST1 926200000 STAND

ST2 34199AG000 BOSS D
Install the four pipes on gearbox.
1. Connect the pipes A and B to the four pipe joints of gearbox.
  Tightening torque:

  Refer to the component parts. < Refer to POWER ASSISTED SYSTEM , COMPONENT, GENERAL DESCRIPTION. >
2. Connect the pipes C and D to gearbox.
Tightening torque:

Pipe C: 37 N.m (3.8 kgf-m, 27.3 ft-lb)

Pipe D: 29 N.m (3.0 kgf-m, 21.4 ft-lb)

Fig 25: Identifying Pipes C And D
Courtesy of SUBARU OF AMERICA, INC.
