Transmission Control Device: Installation

Install the detent spring to the transmission case.
Tightening torque:

7 N.m (0.7 kgf-m, 5.2 ft-lb)

Fig 1: Locating Detent Spring Bolt
Courtesy of SUBARU OF AMERICA, INC.
Install the manual plate, parking rod, range select lever and bolt.
Tightening torque:

7 N.m (0.7 kgf-m, 5.2 ft-lb)

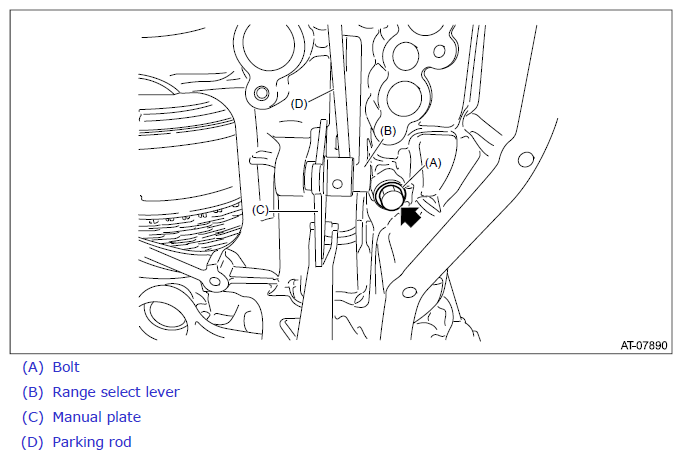

Fig 2: Locating Range Select Lever Bolt
Courtesy of SUBARU OF AMERICA, INC.
Install the spring pin.
NOTE: Use new spring pin.

Fig 3: Locating Spring Pin
Courtesy of SUBARU OF AMERICA, INC.
Install the inhibitor switch. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION(TR690) > INHIBITOR SWITCH .
Adjust the inhibitor switch. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION(TR690) > INHIBITOR SWITCH .
Install the control valve body and oil pan. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>Control Valve Body> INSTALLATION .
Install the transmission assembly to the vehicle. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION(TR690)>Automatic Transmission Assembly> INSTALLATION .
